Smart Differential Pressure Transmitter with Aluminum-alloy Terminal
- Differential pressure transmitter originally patented fully-sealed, fully-isolated mono silicon pressure sensor
- Double diaphragm overload protection structure can easily cope with high overload test
- ASIC and SMT signal-transmitting module
- Strong safeguard with high static pressure and high overload
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This pressure transmitter features a fully sealed single-crystal silicon sensor and dual-diaphragm overload protection, ensuring high accuracy and durability under high pressure. Equipped with an ASIC and SMT module, it delivers stable and interference-resistant signal transmission. The lightweight aluminum-alloy terminal offers excellent corrosion resistance. It is ideal for differential pressure and level measurement of liquids, gases, and steam. The product is certified with Ex, IEC, CE, RoHS, and HART.
Specifications
| Scale ranges | 10 kPa ... 3 MPa |
|---|---|
| Output signal | 4-20mA, 4-20mA + HART |
| Accuracy | ±0.2% URL (standard), ±0.5% URL |
| Process connection | Tri-Clamp; DIN32676; ISO2852 DIN 11851; SMS; IDF; DRD |
| Approvals | 3A, EHEDG, CE, RoHS, Ex-proof |

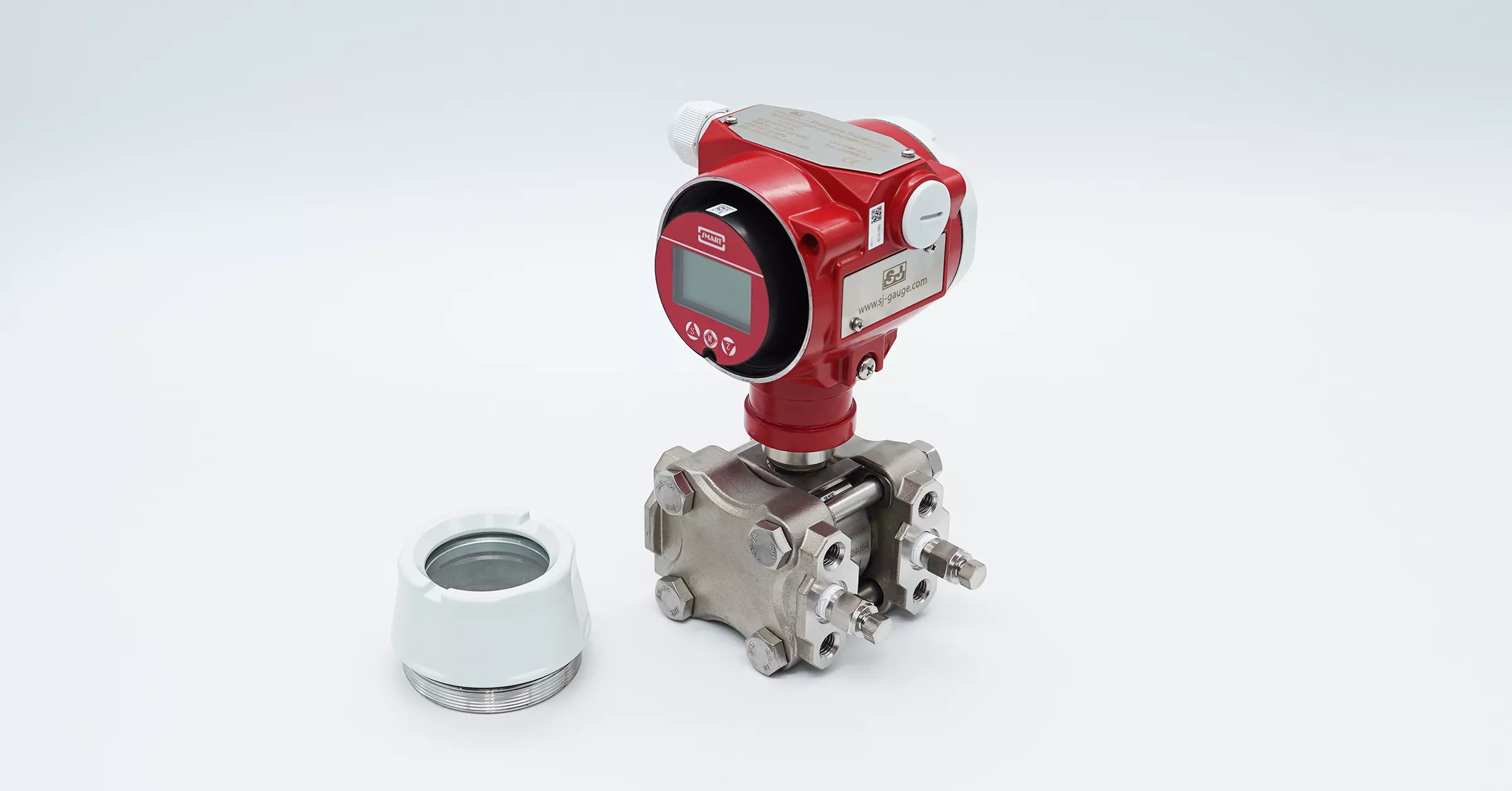

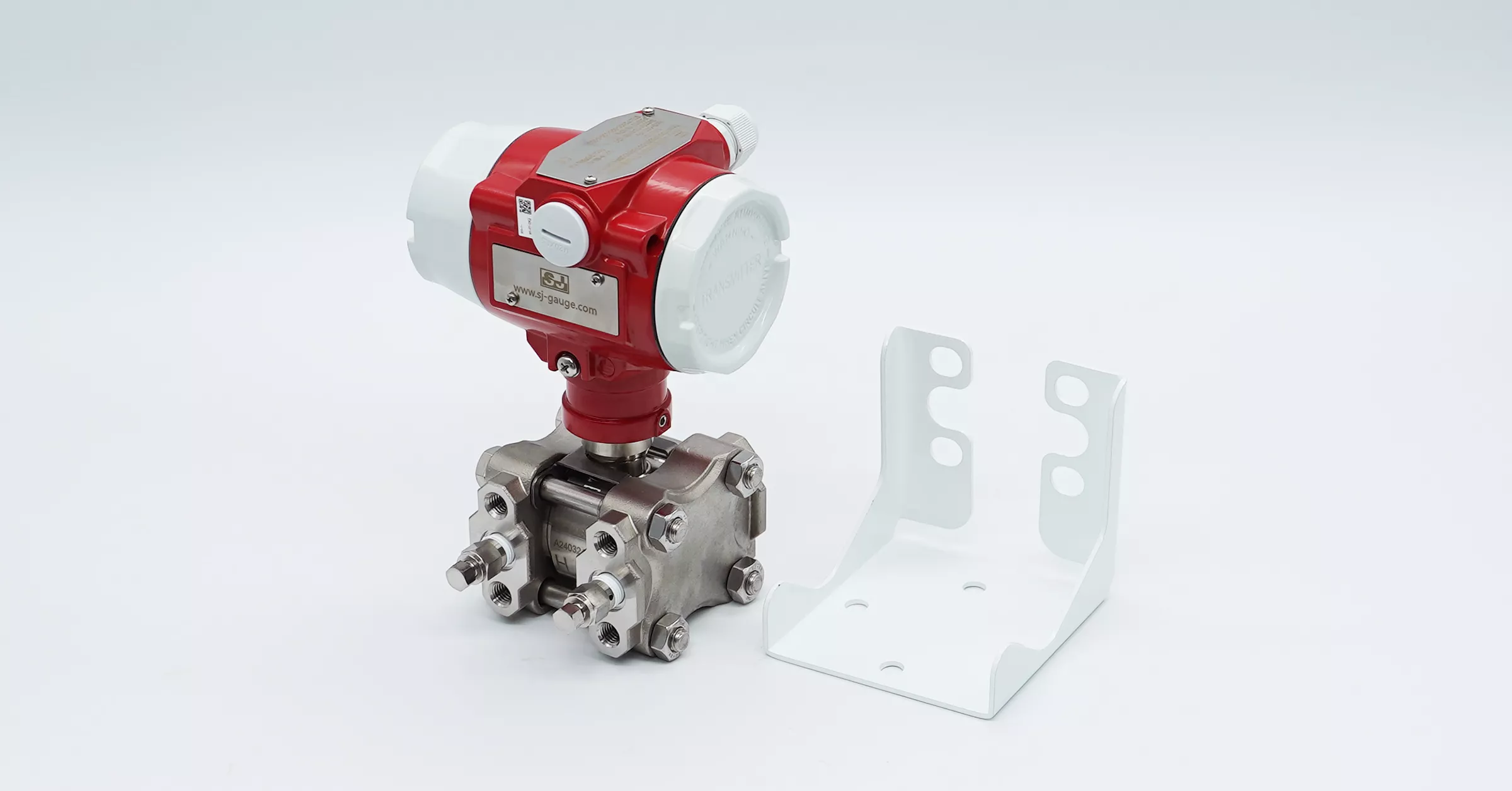

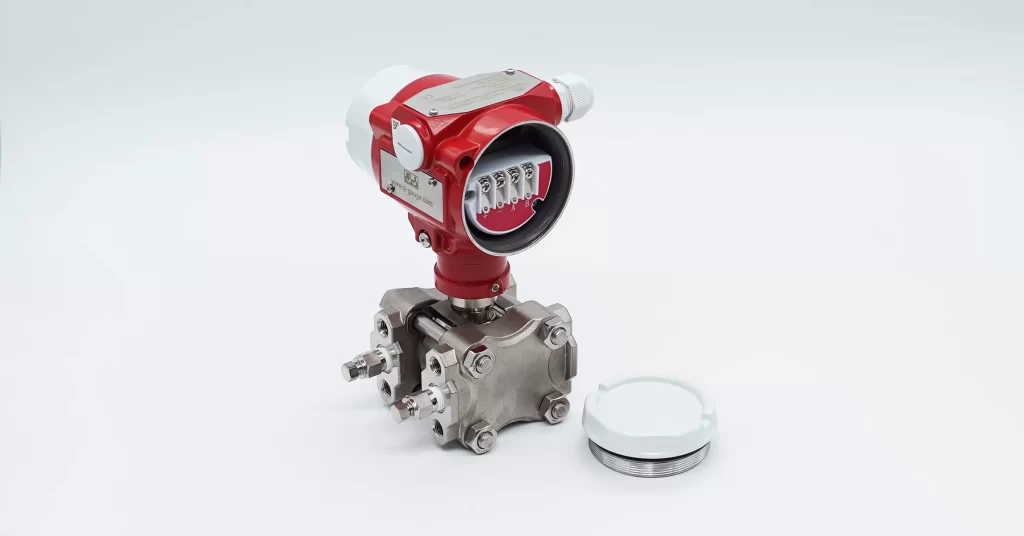

Product Images
