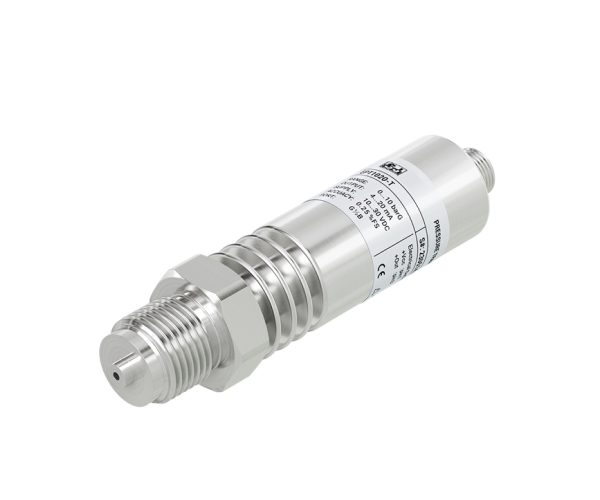

Pressure Transmitter for High Temperature Application
- Medium temperature: 0 to 200°C
- Measuring ranges from 100mbar to 400bar
- Accuracy: 0.5% FS(Typ.)
- خدمة ما بعد البيع سريعة الاستجابة / قابلة للتخصيص/
- جودة عالية / ضمان لمدة سنة واحدة
- الصورة للرجوع إليها؛ سيعتمد المنتج الفعلي على مواصفاتك المخصصة.
الوصف
Model EPT1020-T high-temperature diffused silicon pressure transmitter is a robust sensor designed for precise pressure measurement in extreme environments. Utilizing a diffused silicon piezoresistive sensing element, it offers excellent accuracy, stability, and fast response. Its advanced temperature compensation ensures reliable performance even at elevated temperatures (up to 150°C or higher).
Model EPT1020-T is designed to measure and transmit pressure readings in applications where the temperature is significantly elevated. These transmitters are designed to withstand and function reliably under high temperature conditions, ensuring accurate pressure measurements even in harsh environments. Available in pressure ranges from 0-100 mbar to 0-400bar, the EPT1020-T is a rugged, high temperature pressure transducer. Constructed from components selected to operate reliably at elevated temperatures, it has a stainless steel housing. This product can not only be used to measure high temperature media, but can also be used in applications where the ambient temperature can also reach 200°C.

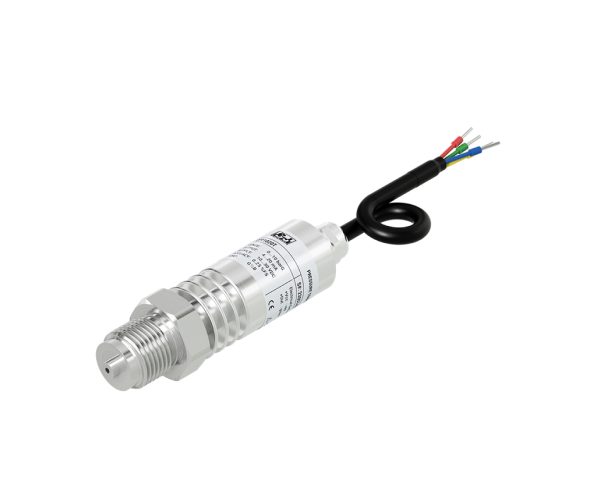

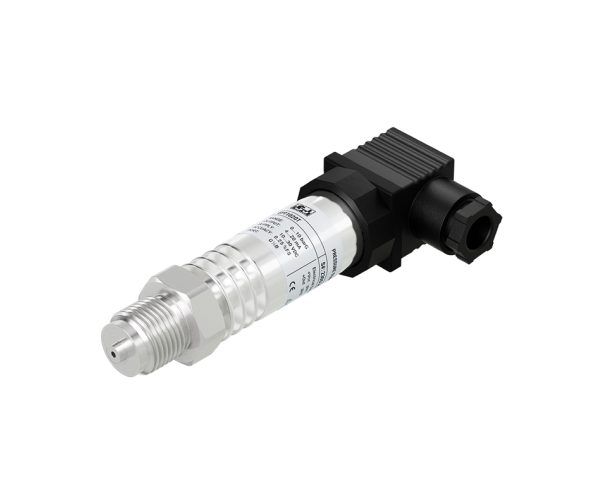

EPT1020-T typically offer various output options, such as analog signals (4-20mA, 0-5V, etc.) or digital protocols (HART, Modbus, etc.), allowing seamless integration with control systems. EPT1020-T has 2 different versions for the electrical connection: Pressure transmitter with cable outlet, pressure transmitter with DIN valve connector. EPT1020-T also provide multiple pressure port options. It makes the pressure transmitter combined with many electrical connections and process connections that allow it widely used in wide filed, such as Hydraulic and pneumatics, Machine building, Pumps, Water treatment.The transmitter is built to withstand harsh environments and can operate at temperatures and pressures beyond the range of standard sensors. In addition to their use in industrial applications, ther pressure sensor is also used in the aerospace industry and in research and development settings.
المواصفات
| Measuring range | 0 ... 400 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 400 bar |
| Pressure Type | Absolute and gauge pressure |
| Output signal / Supply | 2-wire 4…20mA / Vs=10...30VDC 3-wire DC 1…5V / Vs=10...30VDC 3-wire DC 0…5V / Vs=10...30VDC 3-wire DC 0.5…4.5V / Vs=8...30VDC 3-wire DC 0.5…4.5V ratiometric / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=3.3 V±0.1 VDC 3-wire DC 0…10V / Vs=12...30VDC 3-wire 4...20 mA(Pre.)+4...20mA(Temp.) / Vs = 12...30 VDC 2-wire 4…20 mA+HART / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=3.6...5 VDC 4-wire RS485 Modbus RTU(Pre.+Temp.) / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.+Temp.) / Vs=3.6...5 VDC 4-wire I2C(Pre.+Temp.) / Vs = 3.3...5 VDC |
| الدقة | ± 0.1% FS ± 0.25% FS ± 0.5% FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Operating Temperature | -20 to 150 °C -20 to 200 °C |
| Material process membrane | SUS316L Stainless steel |
| Long term stability | ≤ ±0.3 % FS/Year |
