Temperature Transmitter, Aluminum-alloy Terminal
- Complies with explosion-proof standards and supports the HART communication protocol
- Adopts ASIC&SMT signal transmitting module
- Ideal for bad surge voltage occasions
- アフターサービス / カスタマイズ可能
- 高品質・1年保証
- 画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.
説明

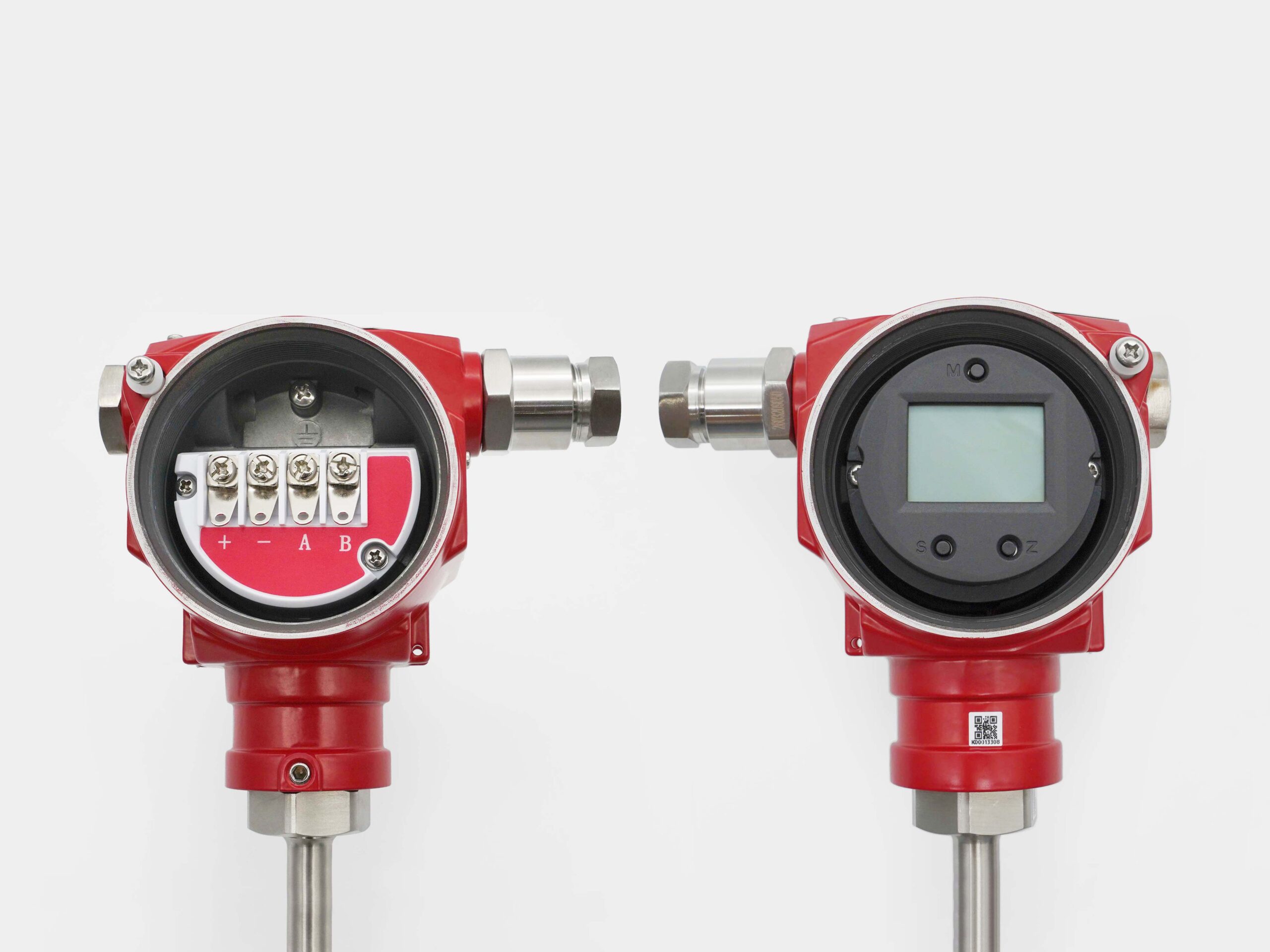

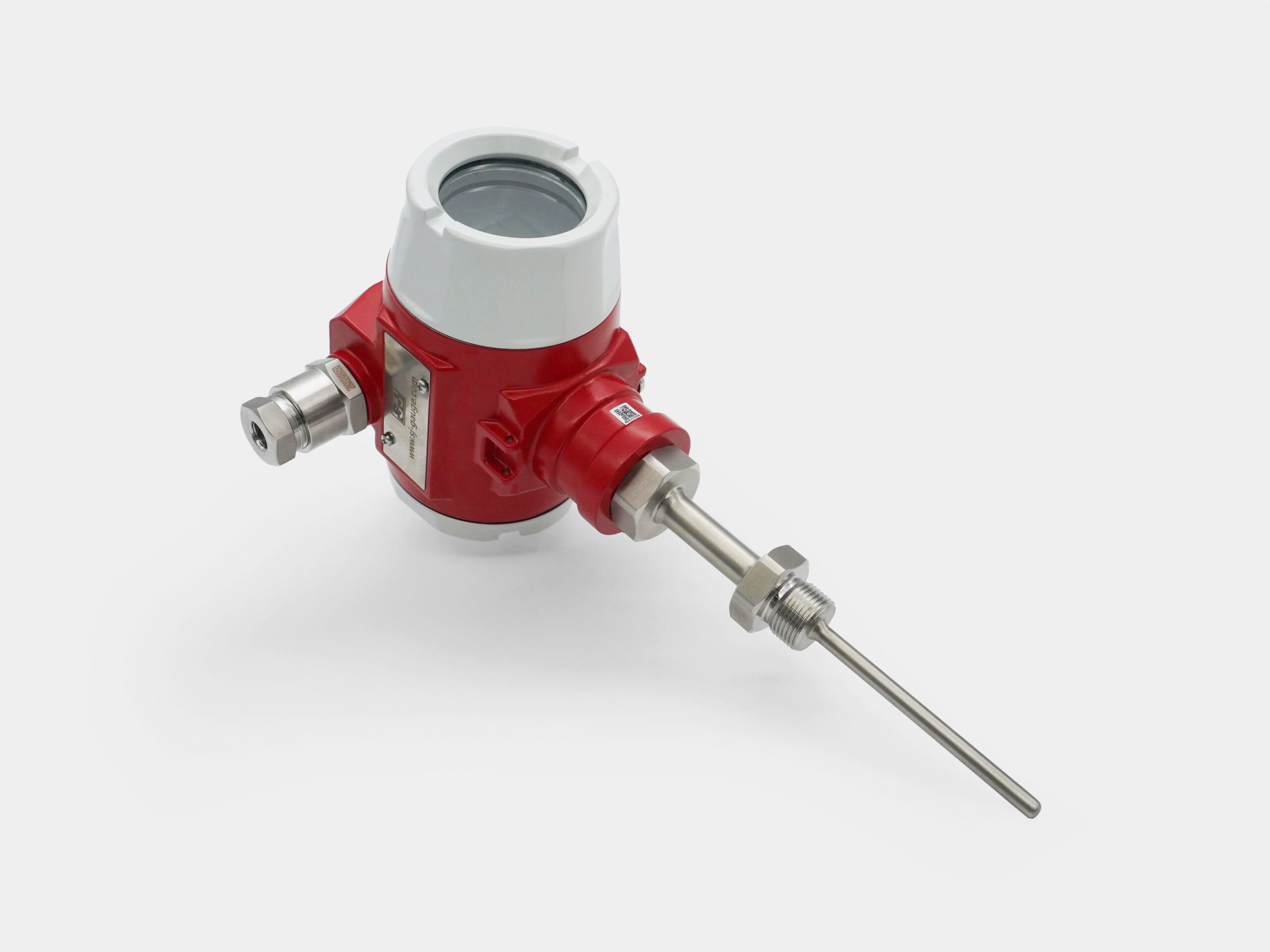

The MSLG200-WRT integrated RTD temperature transmitter is built with a high-performance ASIC & SMT signal module and an optional backlit LCD display with button operation. It delivers stable, accurate measurements while remaining easy to configure on site. Its built-in transient voltage protection meets Class-4 requirements (2000V differential-mode, 4000V common-mode), making it ideal for industrial environments with surge or EMI disturbances.
The device supports multiple output formats—4–20mA, HART, 1–5V, and Modbus-RTU—and offers a wide measuring range of –50 to 400°C with an accuracy of ±0.5% URL, along with excellent long-term stability (drift ≤0.1°C per year). With an IP67-rated aluminum housing and various process connections such as threaded or flange types, it is suitable for pipelines, tanks, cooling systems, steam applications, and other demanding processes.
Combining durability, fast response, and flexible installation options, the MSLG200-WRT serves as a reliable temperature-measurement solution across industries including chemical, food processing, energy, and equipment manufacturing.
仕様
| スケールの範囲 | -50℃ ... 400℃ |
|---|---|
| Output signal | 4-20mA, 4-20mA+HART, 1-5 VDC Modbus-RTU/RS 485 |
| 精度 | ±0.5% URL |
| Stability | ±0.05% URL or 0.1℃/year |
| Electrical connections | Aluminum-alloy terminal, 2 cable entry, M20 x 1.5 (F) red body, white cover |
| Diameter | 6mm, 8mm, 10mm, 12mm, 16mm |
| プロセス接続 | M20 x 1.5（M）、 G1/2（M）、1/2 NPT Flange DN50PN10、flange DN25PN10 |
| Approvals | CE, Ex-proof |
