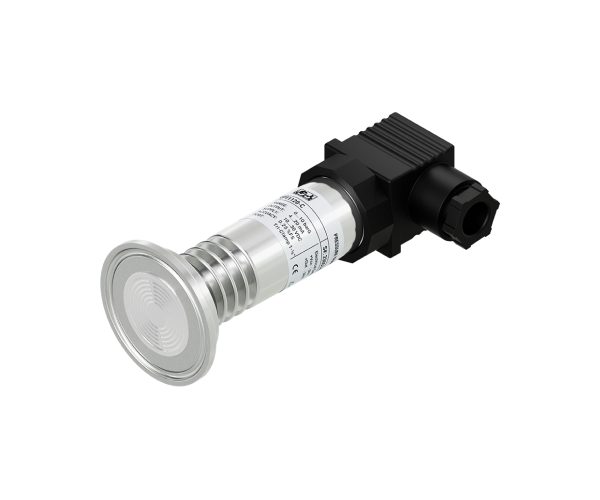

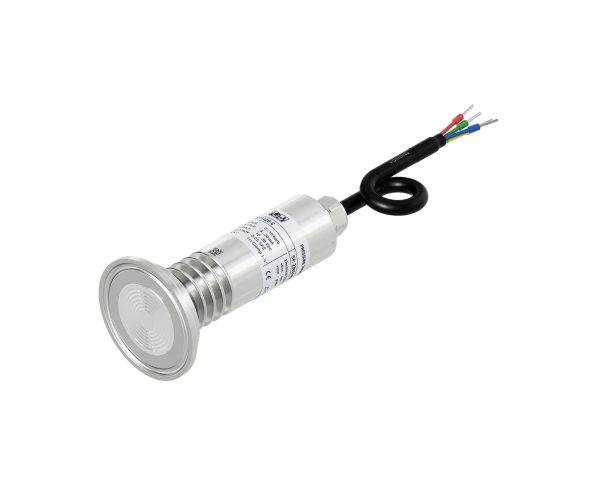

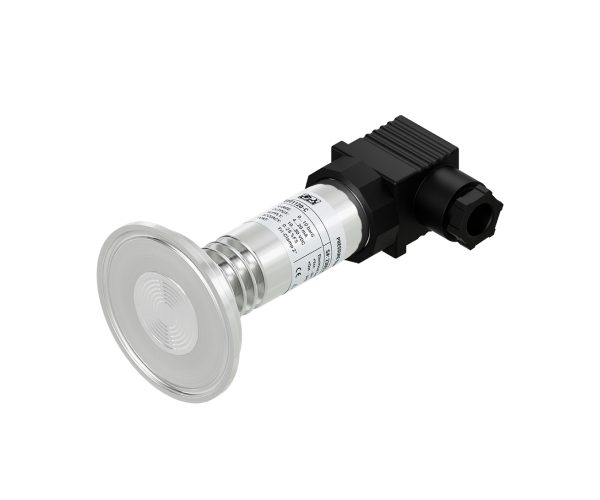

Flush Diaphragm Pressure Transmitter- Hygienical Application
- Hygienical application
- Stainless steel flush diaphragm
- Measuring ranges from 100mbar to 25bar
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The pressure transmitter EPT1120-C was specifically designed for demanding applications in the food and pharmaceutical industries, where hygiene, precision, and reliability are paramount. Its compact and robust design features hygienic process connections such as Tri-Clamp or other industry-standard fittings, ensuring easy integration into sterile processing systems while preventing contamination risks.
With outstanding performance characteristics, the EPT1120-C delivers high accuracy, excellent temperature stability, and long-term reliability even under harsh operating conditions. The modular construction concept enhances flexibility, allowing users to combine different process connections, filling fluids (such as food-grade oils or sanitary gels), and optional cooling elements to adapt to specific process requirements.
Additionally, the transmitter supports various electrical connection options, including M12 connectors, cable glands, or terminal boxes, ensuring compatibility with different control systems. It withstands high-pressure washdowns, making it ideal for Clean-in-Place and Sterilize-in-Place)processes.
The EPT1120-C meets fulfilling nearly hygienic process requirements. Whether for liquid, gas, or steam pressure measurement in fermentation, pasteurization, or aseptic filling applications, this transmitter ensures consistent, contamination-free performance. Its advanced diagnostics and user-friendly configuration further enhance operational efficiency, making it a top choice for critical hygienic industrial processes.
Specifications
| Measuring range | 0 ... 25 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 25 bar |
| Pressure Type | Absolute and gauge pressure |
| Output signal / Supply | 2-wire 4…20mA / Vs=10...30VDC 3-wire DC 1…5V / Vs=10...30VDC 3-wire DC 0…5V / Vs=10...30VDC 3-wire DC 0.5…4.5V / Vs=8...30VDC 3-wire DC 0.5…4.5V ratiometric / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=3.3 V±0.1 VDC 3-wire DC 0…10V / Vs=12...30VDC 2-wire 4…20mA+HART / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=3.6...5 VDC 4-wire I2C(Pre.) / Vs = 3.3...5 VDC |
| Accuracy | ± 0.1% FS ± 0.25% FS ± 0.5% FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Operating Temperature | -20 to 85 °C -20 to 125°C |
| Material process membrane | SUS316L Stainless steel |
| Long term stability | ≤ ±0.3 % FS/Year |
