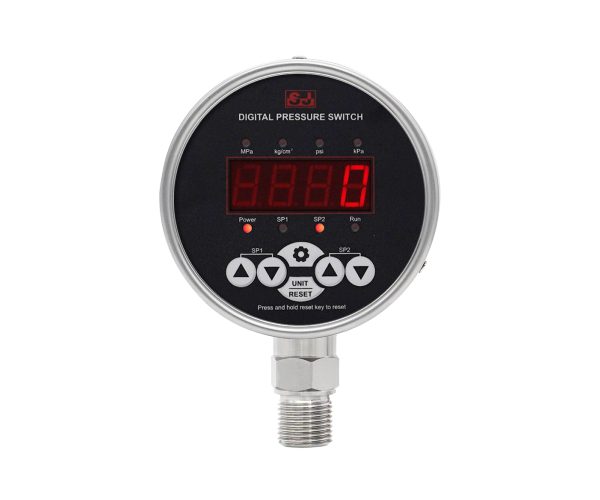

Digital Pressure Gauge, Electronic Contact
- Precisely set value to efficiently avoid incorrect signals from pointer vibration
- Easily set the pressure switch values on the site
- Various operating voltage settings and switch contacts to support different applications
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MXE4 electronic contact digital pressure gauge features a high-accuracy digital display and adjustable upper/lower control points, preventing false signals caused by pointer vibration and allowing on-site configuration of switching pressure values. Available in 3″ and 4″ sizes, it covers pressure ranges from 10 kPa to 1000 MPa and supports multiple pressure units, voltage inputs, and switch-contact modes to meet diverse industrial control requirements. Built with 304/316L stainless-steel construction, Omron relays, and an IP54 protection rating, it includes functions such as zero calibration, unit switching, and upper/lower limit setup. This makes the MXE4 ideal for pump protection, automation systems, pipeline monitoring, and various pressure-control applications.
Specifications
| Nominal size | 3", 4" |
|---|---|
| Scale ranges | 0 ... 10 kPa to 0 ... 1000 MPa, or other equivalent units of pressure, vacuum or compound |
| Pressure units | 3": MPa, kg/cm², kPa 4": MPa, kg/cm², kPa (mmHg is the only unit and cannot be switched), psi |
| Accuracy | ±1.0% F.S., ±0.5% F.S. |
| Process connection | 304 SS 1/4, 1/2 PT, G, NPT, M |
| Case/Ring | 304 SS |
| Display | 4 digits |
| Ambient temperature | -10℃ ... 60℃ |
| Medium temperature | -20℃ ... 60℃ |
| Voltage supply | DC12V, DC24V, DC36V, AC110V, AC220V, AC380V |
| Rated point capacity | DC32V/5A, AC250V/10A |
| Starting current | 0.5 A |
| Fuse | F3AL250V, 5*20, 3A |
| Relay | Omron |
| Protection level | IP 40 |

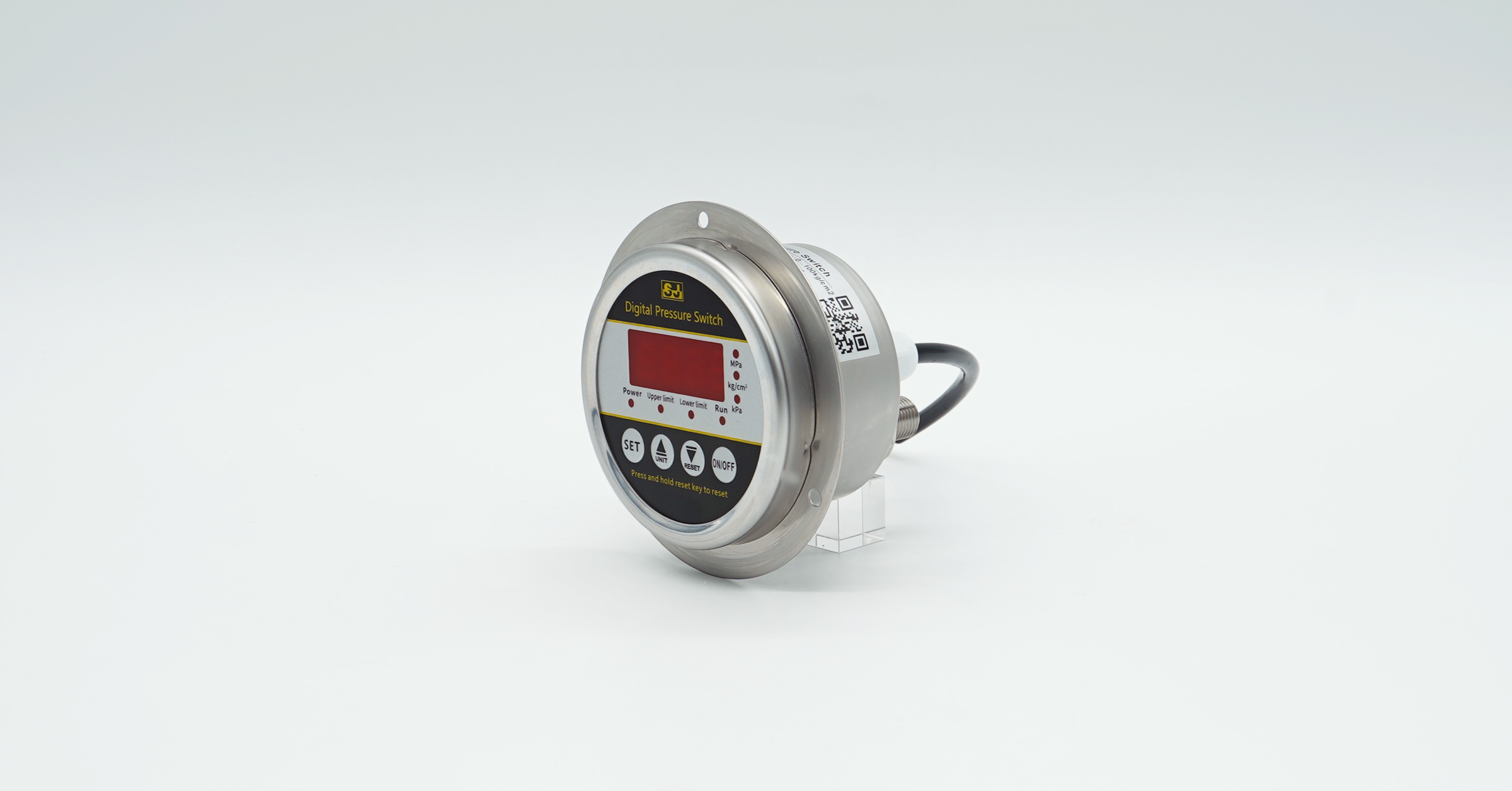

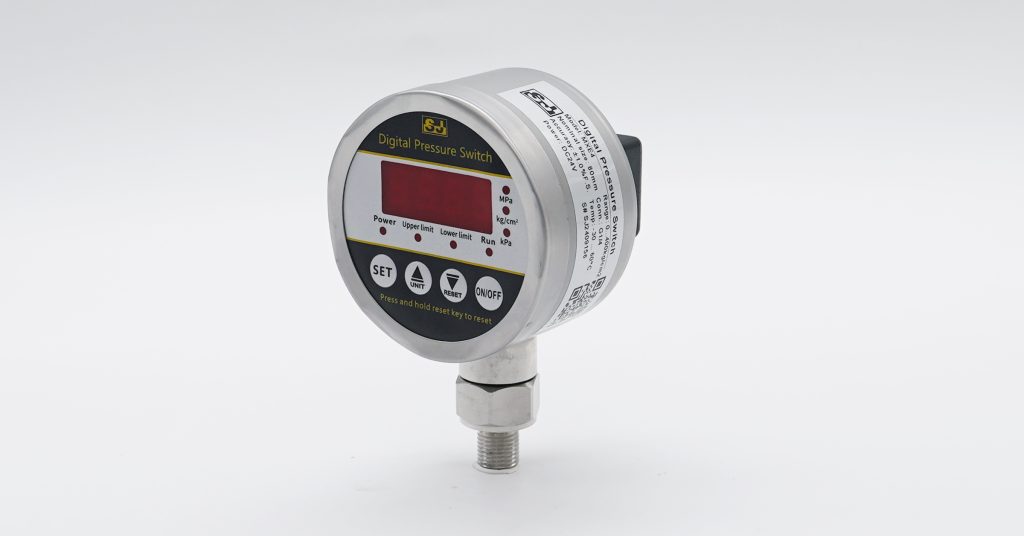

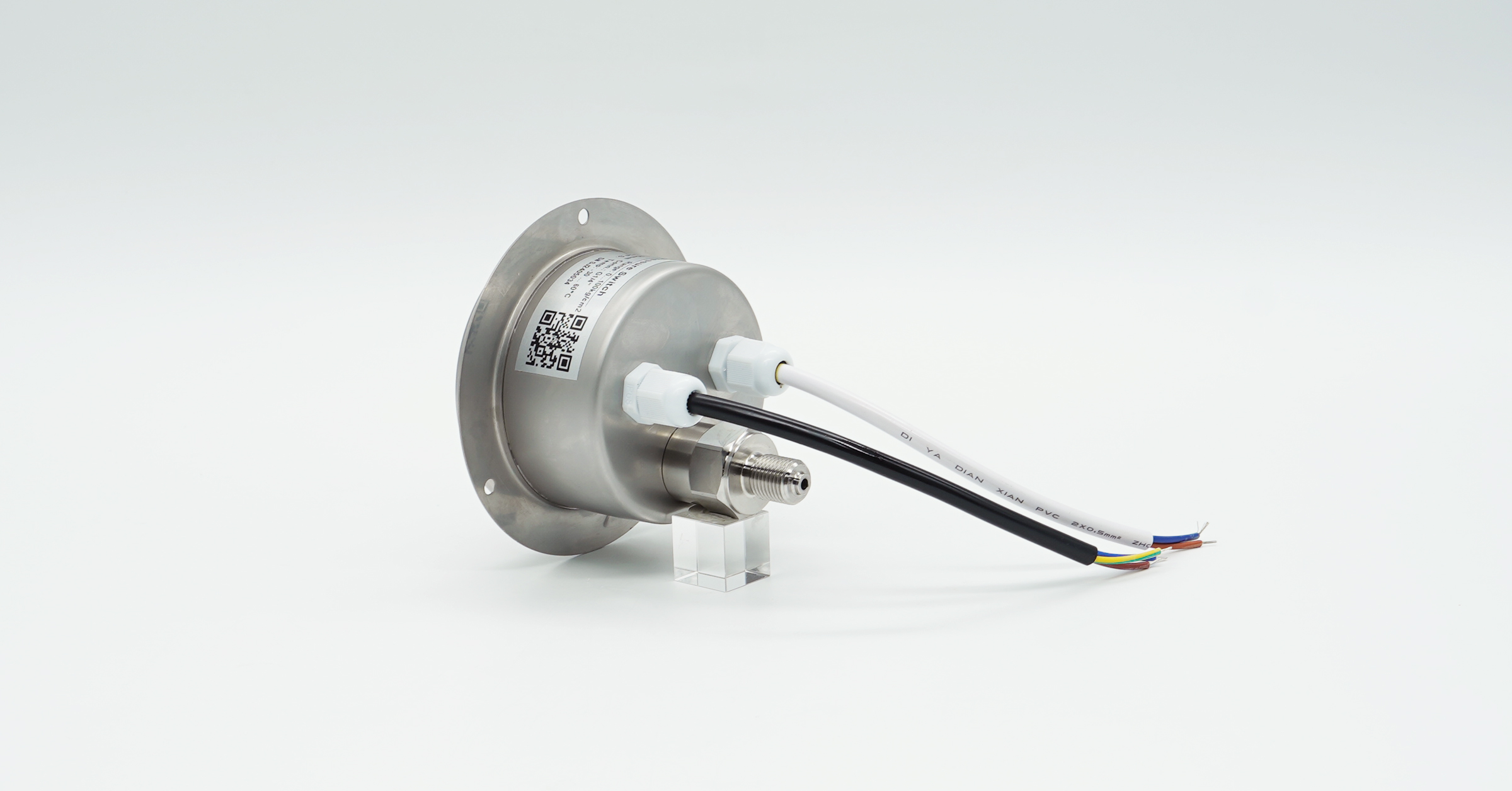

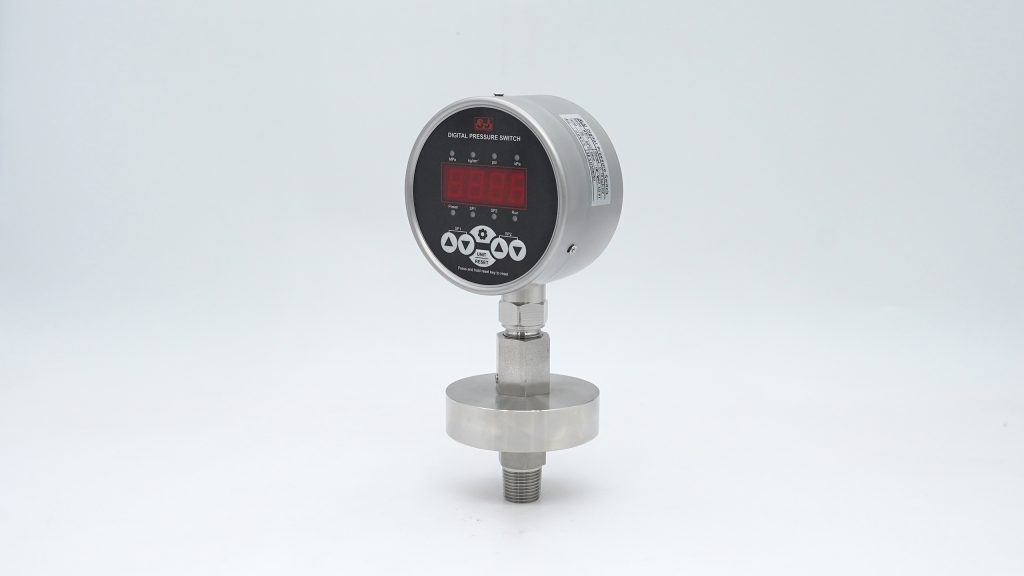

Product Images
