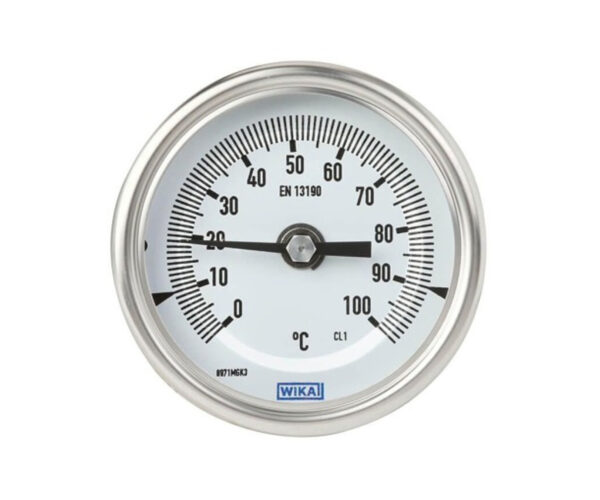

Bimetal thermometer Process version per EN 13190
- Nominal sizes 63, 80, 100, 160 mm [2.5, 3, 4, 6″]
- Robust, hermetically sealed case
- External reset for setting the reference temperature
- Dished dial (anti-parallax) for ease of reading

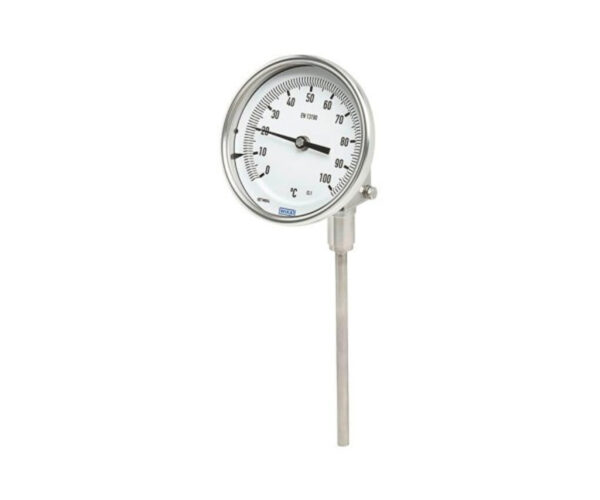

- Adjustable stem and dial version enables optimal process connection
- 反應迅速的售後服務 / 可客製化 / 可依客戶需求提供服務
- 高品質 / 一年保固
- 圖片僅供參考；實際產品將根據您的自訂規格製作。.
說明
The model TG54 bimetal thermometer has been developed and is manufactured in accordance with the EN 13190 standard. The thermometer meets the high requirements of the process industries.
Especially in the chemical and petrochemical, oil and gas, power engineering and shipbuilding industries, the temperature measuring instrument manufactured from stainless steel is used successfully. The robust, hermetically sealed case with IP65 ingress protection enables use with harsh external conditions and high vibration.
With a count of four different nominal sizes, an optimal matching to the available space and mounting conditions is possible.
At an easily accessible point on the back of the case, the zero point can be easily corrected.
The model TG54 meets the high requirements for resistance against aggressive media. As an option, the case, the stem and the process connection can be made from 316L.
規格
| Connection location | ■ Back mount (axial) ■ Lower mount (radial) ■ Back mount, adjustable stem and dial |
|---|---|
| Nominal size | 2.5", 3", 4", 6" |
| 刻度範圍 | -70°C … 600°C |
| 精確度 | CL 1.0 |
| 製程連線 | 304 SS, 316 SS 1/2 G、NPT、M |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Connection designs | Male thread, plain stem, compression fitting (sliding on stem), union nut and loose threaded connection, male nut, union nut, sanitary end cap, metallic sheet with dual hole, flange on stem |
| Stem | 304 SS, 316 SS Length: Above 40 mm (without thread) can be customized Diameter: 6, 8 mm |
| Case/Ring | 304 SS, 316 SS |
| Window | Glass, safety glass, plastic |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Filling liquid | ■Without ■With silicone oil case filling, up to max. 250 °C [482 °F] (at the probe) |
| Accessories (option) | Zero point setting with adjustment screw, thermowell, adjustable set pointer, drag pointer, spacer |
| Ingress protection (IP code) per IEC/EN 60529 | IP66 |
