Welding Tri-Clamp Diaphragm Seal for Small-size Pipeline Connections

Welding Tri-Clamp Diaphragm Seal for Small-size Pipeline Connections

Model: DIT-CS
  • Special design for small-size pipeline connections
  • Enlarging the upper seat and diaphragm can ensure precision and fit different pipeline connections
  • Ideal for industries such as petrochemical, chemical equipment construction, sewage treatment, paper, etc.
  • Servicio posventa reactivo / Personalizable /
  • Alta calidad / Un año de garantía
  • La imagen es de referencia; el producto real se basará en sus especificaciones personalizadas.
Solicitar presupuesto

Descripción

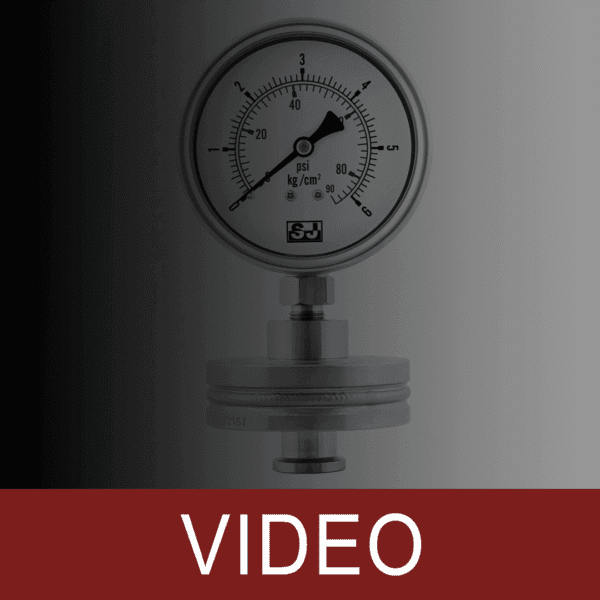

The DIT-CS Tri-Clamp diaphragm seal is engineered for small-diameter pipeline connections. By enlarging the upper seat and diaphragm area, it ensures accurate pressure transmission even in compact installation spaces. It supports 70 mm and 90 mm diaphragms and fits various pipeline sizes such as 1/2″, 3/4″, 1″, and 1.5″. Available in materials including 304 SS, 316L SS, and Hastelloy C276, the DIT-CS is ideal for chemical processing, petrochemical equipment, wastewater treatment, and paper manufacturing—applications requiring corrosion resistance and stable measurement. Optional accessories such as clamps, gaskets, and ferrules are available, along with welded-type or flush-port configurations, making it a reliable and easy-to-install sanitary solution for small pipeline systems.

Especificaciones

Diameter 70 mm, 90 mm
Process connection 1/2", 3/4", 1", 1 1/2"
Instrument connection 1/4", 3/8", 1/2"
PT, G, NPT, M
Scale ranges 70 mm
Pressure gauge: 0 ... 2.5 bar to 0 ... 25 bar
Transmitter: 0 ... 0.01 bar to -1 ... 25 bar
90 mm
Pressure gauge: -1 ... 0 bar to -1 ... 25 bar
Transmitter: 0 ... 0.01 bar to -1 ... 25 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
Material Body: 304 SS, 316L SS, Hastelloy C276
Diaphragm: 316L SS, Hastelloy C276
Medium Temperature 0℃ ... 80℃ (standard), 81℃ ... 200℃, 201℃ ... 400℃
Accessories (options) Clamp, gasket, ferrule
Others Welded with instrument, flush port
