Digital Pressure Gauge, Display and Output Signal
Digital Pressure Gauge, Display and Output Signal
  1. Digital Pressure Gauge, Display and Output Signal
  2. Digital Pressure Gauge, Display and Output Signal

Manómetro digital, pantalla y señal de salida

Model: MXT
  • 4-20mA signal output for remote monitoring
  • Digital display which allows local observation at the same time
  • LED digital panel with high brightness and a wide viewing angle
  • Servicio posventa reactivo / Personalizable /
  • Alta calidad / Un año de garantía
  • La imagen es de referencia; el producto real se basará en sus especificaciones personalizadas.
Solicitar presupuesto

Descripción

The MXT is a digital pressure gauge featuring a high-brightness LED display and a 4–20mA output, providing both local pressure indication and remote monitoring capability. Covering pressure ranges from 5 kPa to 100 MPa with accuracy up to ±0.25% F.S., it is built with 304/316 stainless-steel wetted parts and a compact 2.5″ housing suitable for installations with limited space. Powered by DC16–32V, the device offers a fast 30 Hz data acquisition rate and a display update rate of ≥5 Hz for stable performance. A front ZERO key allows easy calibration, while the 2-pin aviation connector and IP40 protection make it ideal for industrial control systems, pressure monitoring applications, and automation environments requiring analog signal output.

Especificaciones

Connection location Bottom mount
Electrical connection 2P aviation plug
Nominal size 2.5"
Scale ranges 0 ... 5 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound
Pressure units The unit can be specified before shipment. If unit conversion is required, it must be reset at the factory.
Precisión ±1.0% F.S., ±0.5% F.S., ±0.25% F.S
Process connection 304 SS, 316 SS
1/4, 3/8, 1/2
PT, G, NPT
Case/Ring 304 SS
Panel PVC
Medium temperature -20℃ ... 60℃
Display 4 digits
Response time ≥ 5 Hz
Data acquisition rate 30 Hz
Voltage supply DC16-32V
Output signal 4-20mA
Protection level IP 40

Product Images

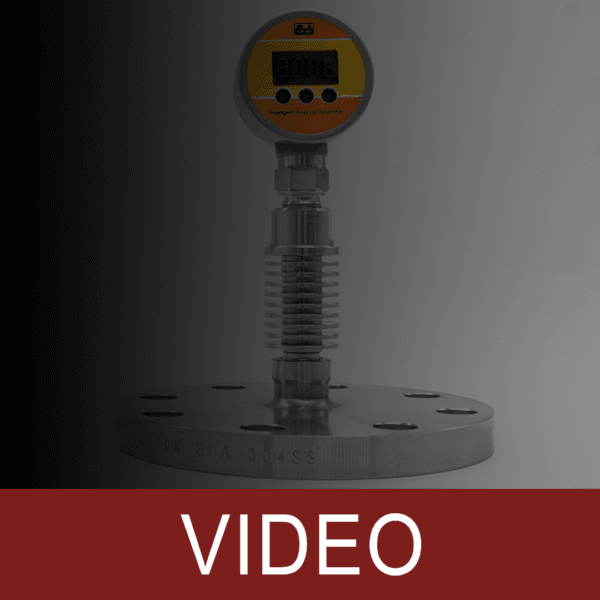

Pressure transmitter with diaphragm seal, cooling element
Pressure transmitter with diaphragm seal, cooling element
Pressure transmitter with diaphragm seal, flange connection
Pressure transmitter with diaphragm seal, flange connection

Descargas

Inglés

SJ-Gauge-MXT-digital-pressure-gauge-datasheet-en.pdf
SJ-Gauge-MXT-digital-pressure-gauge-manual-en.pdf
SJ-Gauge-MXT-digital-pressure-gauge-datasheet-zh-tw.pdf
SJ-Gauge-MXT-digital-pressure-gauge-manual-zh-tw.pdf
