Transmisor de presión para medios agresivos

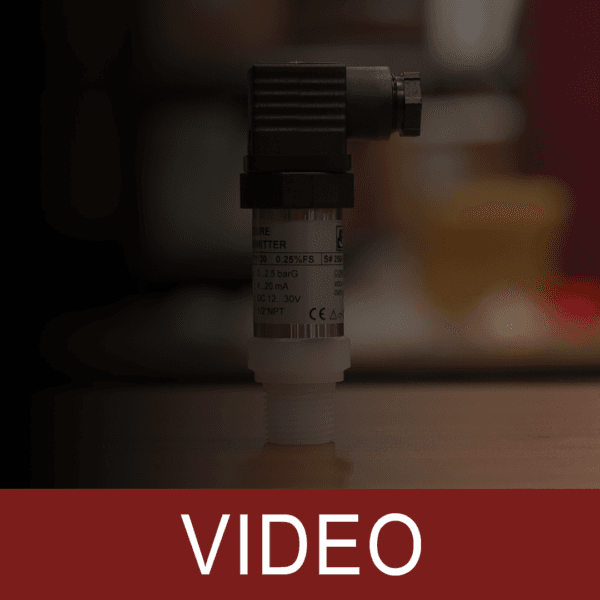

Model: VMEPT1130
  • Ceramic pressure sensor
  • PVDF/PTFE pressure interface
  • Measuring ranges from 200mbar to 50bar
  • Servicio posventa reactivo / Personalizable /
  • Alta calidad / Un año de garantía
  • La imagen es de referencia; el producto real se basará en sus especificaciones personalizadas.
Solicitar presupuesto

Descripción

EPT1130 pressure transmitter use the PVDF Pressure Interface with anti-corrosion ceramic diaphragm pressure sensor. It is a state-of-the-art solution designed for demanding industrial applications where reliability, accuracy, and durability are paramount. This high-performance pressure transmitter features a robust PVDF (Polyvinylidene Fluoride) pressure interface, renowned for its exceptional chemical resistance and mechanical strength, making it ideal for harsh environments involving aggressive media, acids, and solvents.

At the core of this pressure transmitter lies an advanced anti-corrosion ceramic diaphragm, engineered to withstand extreme pressures and temperatures while maintaining long-term stability. The ceramic diaphragm ensures minimal deformation under high-stress conditions, delivering precise and consistent pressure measurements. Its non-reactive surface prevents corrosion and contamination, ensuring reliable performance in corrosive or abrasive applications.

Ideal for industries such as chemical processing, pharmaceuticals, food and beverage, and water treatment, this EPT1130 pressure transmitter is designed to meet international standards for safety and quality. Its rugged construction, combined with easy installation and low maintenance requirements, makes it a cost-effective and reliable choice for critical pressure monitoring applications. Trust this PVDF and ceramic diaphragm pressure transmitter to deliver unmatched performance in the most challenging environments.

Especificaciones

Rango de medición 0 ... 50 bar
Intervalo de medición mín. 200 mbar
Alcance de medición máx. 50 bar
Tipo de presión Presión absoluta y manométrica
Señal de salida / Alimentación 2 hilos 4...20mA / Vs=10...30VDC
3 hilos CC 1...5V / Vs=10...30VDC
3 hilos DC 0...5V / Vs=10...30VDC
3 hilos CC 0,5...4,5V / Vs=8...30VDC
3 hilos CC 0,5...4,5 V ratiométrica / Vs=5 V±0,1 V CC
3 hilos CC 0,5...2,5 V / Vs=5 V±0,1 V CC
3 hilos CC 0,5...2,5 V / Vs=3,3 V±0,1 V CC
3 hilos DC 0...10V / Vs=12...30VDC
2-wire 4…20 mA+HART / Vs=12...30 VDC
4 hilos RS485 Modbus RTU(Pre.) / Vs=12...30 VDC
4 hilos RS485 Modbus RTU(Pre.) / Vs=3,6...5 VDC
4 hilos I2C(Pre.) / Vs = 3,3...5 VDC
Precisión ±0,25%FS
±0,5%FS
±1.0%FS
Incluye no linealidad, histéresis y no repetibilidad según BFSL
Temperatura de funcionamiento 0 to 50 °C
Material proceso membrana Ceramic (96% Al2O3)
Estabilidad a largo plazo ≤ ±0.3 % FS/Year

Descargas

Inglés

SJ-Gauge-VMEPT1130-pressure-transmitter-datasheet-en.V2.pdf
