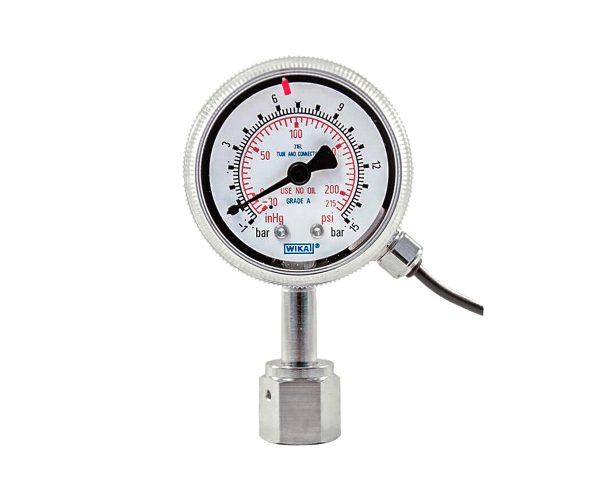

Bourdon tube pressure gauge UHP, stainless steel version

VCR® compatible face seal fittings
Helium leak tested
Electropolished case
Process connection surface finish Ra ≤ 0.25 μm

アフターサービス / カスタマイズ可能
高品質・1年保証
画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.

説明

■ For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience ■ For all UHP (ultra high purity) applications ■ Semiconductor and flat panel industry ■ Gas distribution systems, medical gases ■ Hook-up application

仕様

Connection location	■Lower mount ■Centre back mount
公称サイズ	■1 ½" ■2"
スケールの範囲	0 ... 1 to 0 ... 400 bar ([0 ... 15 to 0 ... 6,000 psi] or all other equivalent vacuum or combined pressure and vacuum ranges
精度	■NS 1.5": Grade B per ASME B40.1 ■NS 2": Grade A per ASME B40.1
プロセス接続	Stainless steel 316L, lower mount (LM) or centre back mount (CBM) VCR® compatible face seal fitting optionally: with union nut with male nut or with male thread 9/16-18 UNF fixed
Case	■Stainless steel, ■electropolished
Window	Polycarbonate NS ■1.5": Snap-in window NS ■2": Cleaning Screw-fitted on case (twist lock)
Dial	Aluminium, white, black lettering, with pointer stop pin
Pointer	Aluminium, black
Movement	Stainless steel
Ambient temperature	-40 ... +60 °C
Medium temperature	+100 °C maximum
IP rating	IP 54 per EN 60529 / lEC 529
