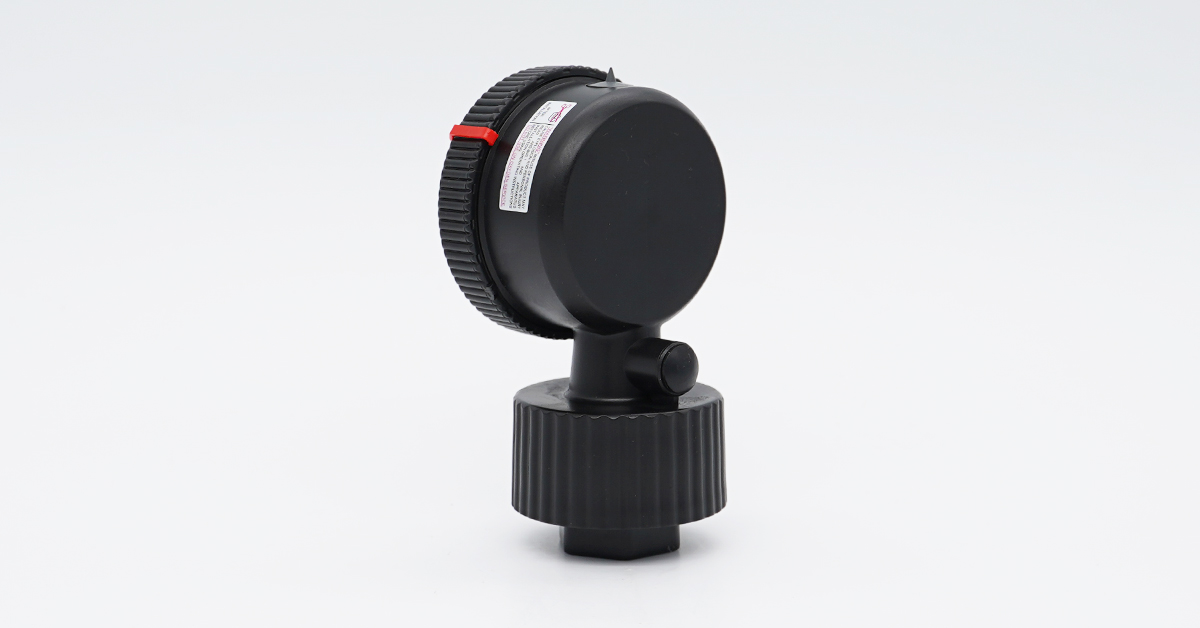

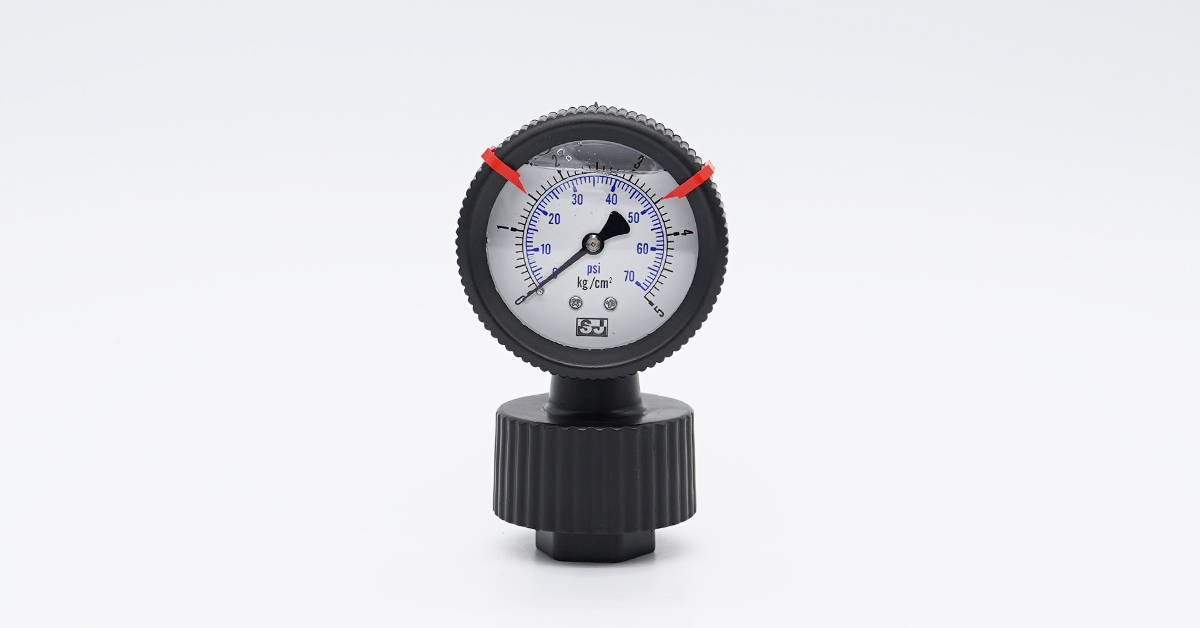

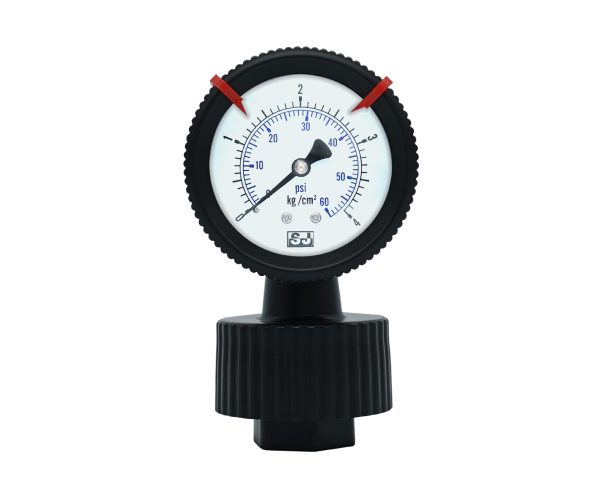

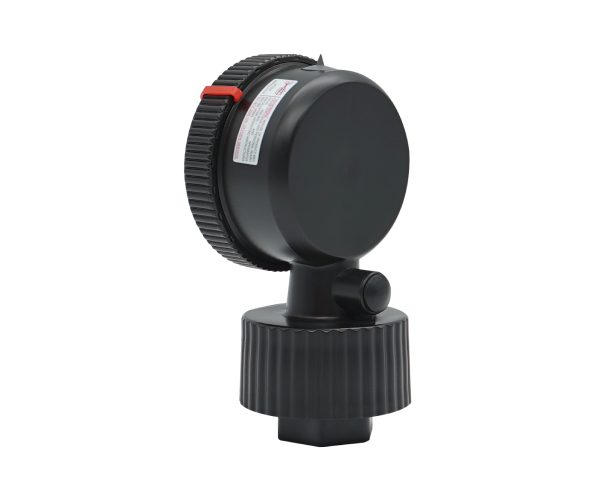

Threaded Connection, Intergrated PP
- Polypropylene has excellent anti-corrosion properties
- One-piece molded, rarely cracks or leaks
- Mainly used in printing circuit boards, liquid filter pumps, etc.
- アフターサービス / カスタマイズ可能
- 高品質・1年保証
- 画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.
説明
The DIT-S threaded diaphragm seal is designed for corrosive, crystalline, or particle-laden media, preventing direct contact with the measuring instrument and extending its service life. The removable diaphragm allows quick cleaning when fluid blockage occurs, making it ideal for chemical processing, pharmaceutical equipment, wastewater treatment, and applications requiring frequent maintenance. It is available in multiple thread types, diameters, and materials, and can be paired with pressure gauges or transmitters—providing a reliable and easy-to-maintain solution for challenging media measurement.
仕様
| Connection location | Bottom mount |
|---|---|
| Diameter | 2.5" |
| スケールの範囲 | 0 ... 1 bar to 0 ... 20 bar, or other equivalent units of pressure |
| 精度 | ±1.6% F.S. |
| プロセス接続 | PP 1/2PT (Female) |
| ダイヤフラム | Viton, PTFE |
| Case/ring | Polypropylene, black |
| Window | Acrylic |
| Dial | Aluminum Black scale on white |
| Pointer | Standard pointer, aluminium, black |
| Bourdon tube | Copper alloy |
| Case filling | Without, glycerine |
| 中温 | 0℃ ... 60℃ |
| Accessories | Adjustable set pointers (red / red and green) |
