Multiple Output Signal Digital Panel Meter

Multiple Output Signal Digital Panel Meter

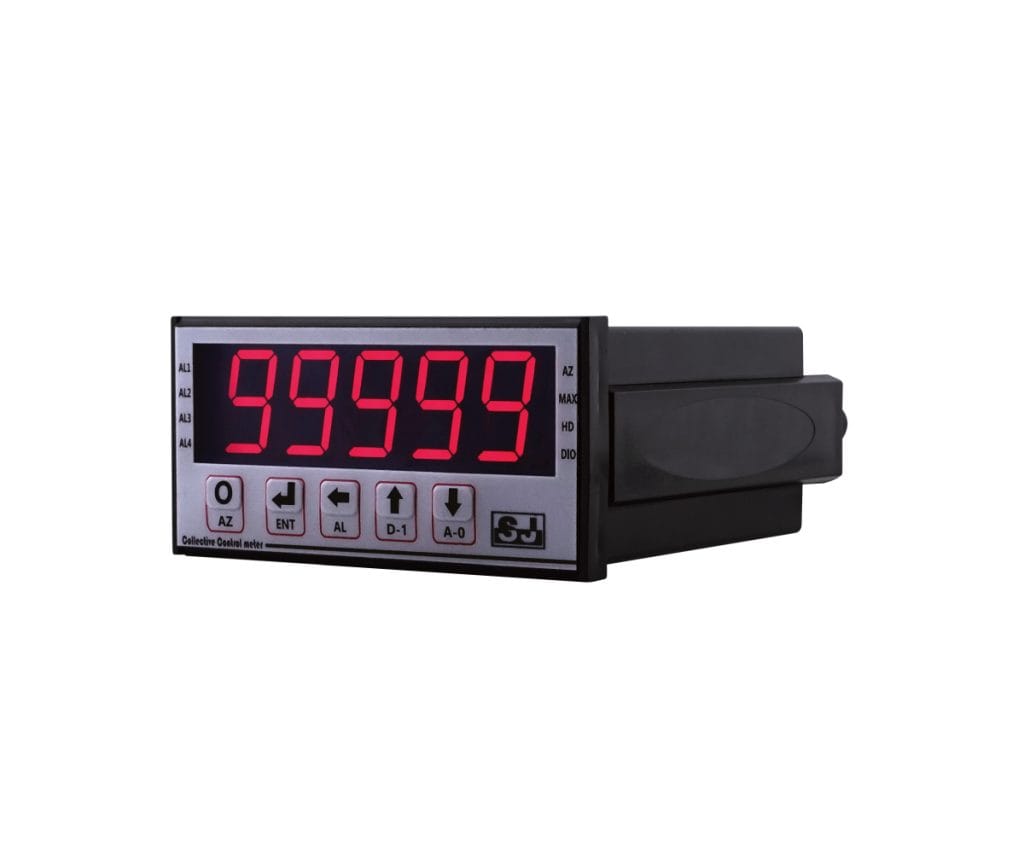

Model: NAC5
  • Can be used as a pressure relay, which can transmit up to four sets
  • Can be used to display gas pressure, oil pressure, water pressure or liquid level
  • Offers three functions used together or separately as needed: one- to four-stage alarms, 16-bit resolution analog transmission, and/or RS485 digital communication interface
  • アフターサービス / カスタマイズ可能
  • 高品質・1年保証
  • 画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.
見積依頼

説明

The NAC5 is a high-accuracy, multi-function digital panel meter designed to accept a wide range of input signals, including voltage, current, thermocouples, PT100, and load cells. It features a large, high-brightness LED display for clear on-site reading and supports up to four alarm outputs, 16-bit analog output, and RS485 Modbus RTU communication. The NAC5 enables simultaneous display, control, and signal transmission, making it ideal for monitoring pressure, level, temperature, flow, and weight in industrial automation, energy management, and system integration applications.

仕様

精度 ±0.1% F.S. ±1 digit
(DC/Potentiometer/Resistor/PT-100/Load Cell)
±0.2% F.S. ±1 digit (AC)
Display Screen High-brightness red LED
20.5 mm (0.8")
Sampling time 60 cycles/sec
Display range -19999 ... 99999
Display over-range indication doFL/-doFL
Input over range indication ioFL/-ioFL
Parameters indication Push buttons
Back up memory EEPROM
Relay contact AC 250V/5A
DC 30V/7A
Analog output resolution 16 bit
Output communication Current output: ≦ 10V
Voltage output: ≦ 20mA
Communication RS485 Modbus RTU mode
Baud rate 19200/9600/4800/2400 bps
Tempering temperature 100 ppm/℃ (0℃ ... 60℃)
Ambient temperature& humidity 0℃ ... 60℃/20% ... 90% RH (non-condensing)
電源 AC/DC 100V ... 240V
AC/DC 22V ... 50V
Power consumption < 6.5VA
Polarity indication Automatic with " - " indication

ダウンロード

英語

SJ_NAC5_um_cc_en_digital_panel_meter.pdf
SJ_NAC5_um_cc_ch_digital_panel_meter.pdf
