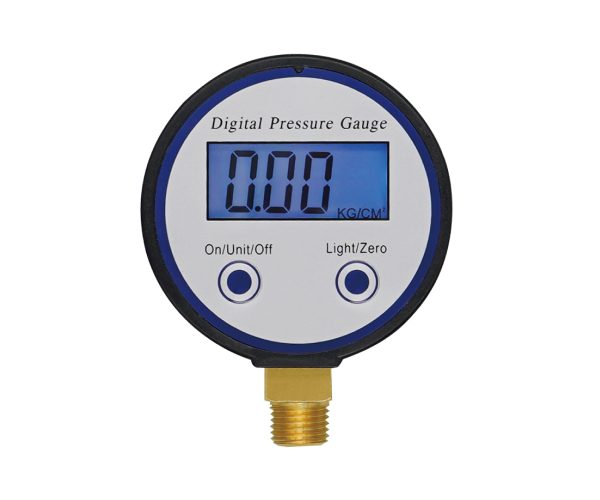

Digital Pressure Gauge, Basic
- Cost-effective digital pressure gauge with a short lead time
- Intuitive interface for easy operation
- For gaseous and liquid pressure media that are not highly viscous or crystallizing
- アフターサービス / カスタマイズ可能
- 高品質・1年保証
- 画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.
説明
The PRD-TG is a cost-effective basic digital pressure gauge featuring an intuitive interface and short lead time, designed for non-corrosive, low-viscosity gas and liquid media. It offers a measuring range of 5–175 psi and supports four pressure units: psi, bar, kPa, and kg/cm². With ±1% F.S. accuracy and a G1/4 connection, the gauge uses a 3.5-digit LCD with a backlight switch and operates on two AAA batteries. It is ideal for general applications such as equipment monitoring, pipeline pressure checks, and basic pressure measurements.
仕様
| 公称サイズ | 2.5" |
|---|---|
| Pressure medium | Non-corrosive gases and liquid |
| スケールの範囲 | 5 ... 175 psi, The value starts to display after 0.21 kg/cm² |
| 圧力単位 | psi, bar, kPa, kg/cm² |
| 精度 | ±1.0% F.S. |
| プロセス接続 | G1/4" |
| Resolution | 0.2% F.S. ... 0.5% F.S. |
| Burst pressure | 1.6 MPa |
| 中温 | -10℃ ... 50℃ |
| ディスプレイ | 3.5 digits LCD、バックライト切り替えボタン |
| 電源 | AAA battery*2 (not included) |
