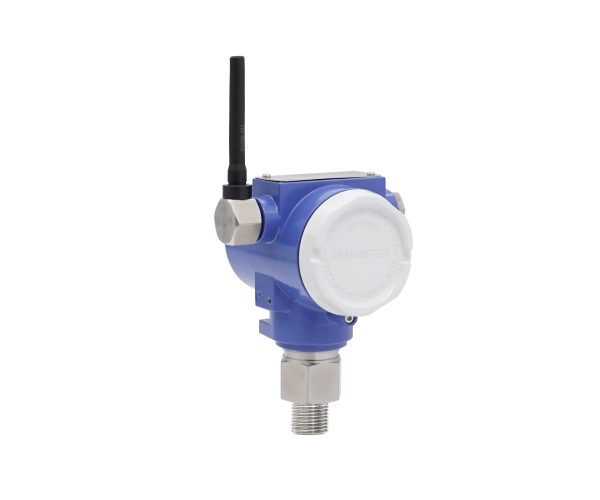

ワイヤレス圧力トランスミッタ
- Supports WSN and GPRS, suitable for petroleum, mining, and automation
- Range 100 mbar–1000 bar, LCD display, high accuracy, low power
- Long battery life with anti-vibration and moisture-proof design for reliable monitoring
- アフターサービス / カスタマイズ可能
- 高品質・1年保証
- 画像はイメージです。実際の製品はお客様のカスタム仕様に基づきます。.
仕様
| Measuring range | 0 ... 1000 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 1000 bar |
| Pressure Type | Absolute and gauge pressure |
| RF Frequency | 430 MHz/470 MHz |
| Output signal / Supply | WSN (Wireless sensor network), GPRS, 4G, LoRa, LoRaWAN, , and NB-IoT |
| 電源 | 3.6V battery or 12/24VDC |
| 精度 | ±0.25%FS ±0.5%FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Maximumrange in open area | 1 km (max.) |
| Transmit power | 20 dbm (Adjustable) |
| Transmit interval | 1s-255s (User definable) |
| Operating Temperature | 20 to 85 °C |
| Material process membrane | Ceramic (96% Al2O3) |
| Long term stability | ≤ ±0.2 % FS/Year |
