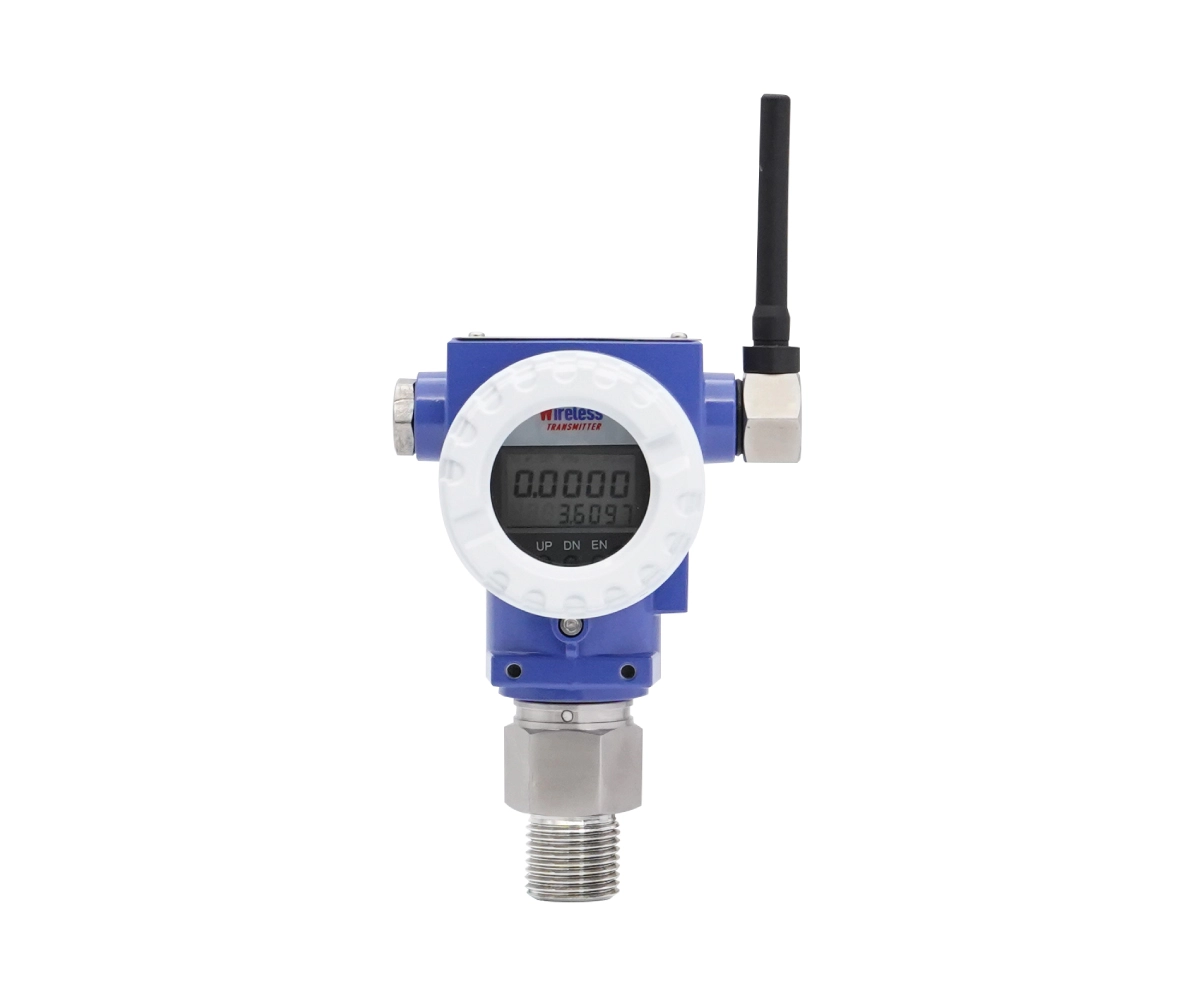

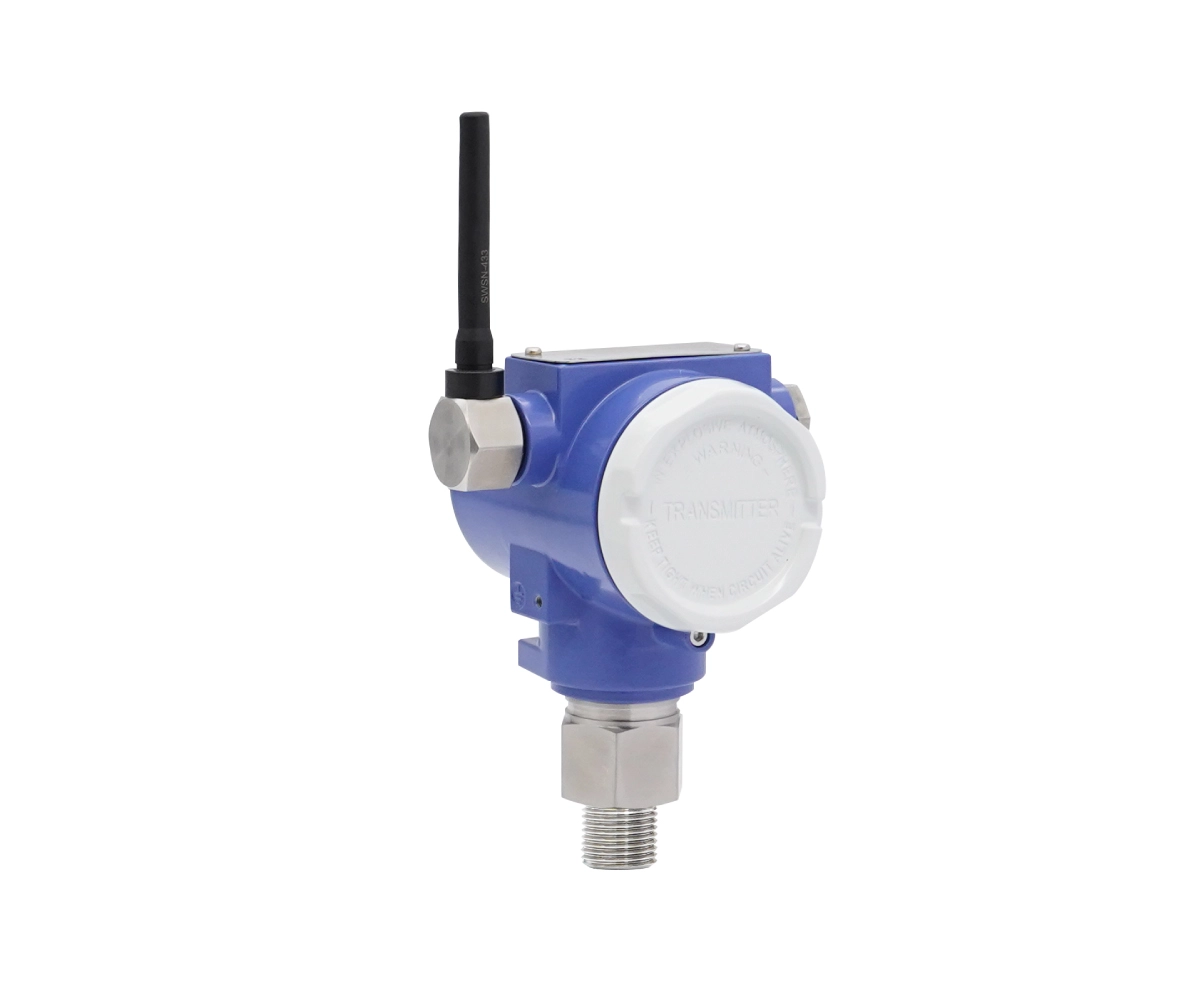

Wireless Pressure transmitter
Model: VMWL-P
Description：
- Supports WSN and GPRS, suitable for petroleum, mining, and automation
- Range 100 mbar–1000 bar, LCD display, high accuracy, low power
- Long battery life with anti-vibration and moisture-proof design for reliable monitoring
- Responsive after-sales service / Customizable / High quality / One-year warranty
- The image is for reference; the actual product will be based on your custom specifications.
- Read more: What is an Explosion-Proof Pressure Transmitter?
Download file
Product Specification
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Measuring range | 0 ... 1000 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 1000 bar |
| Pressure Type | Absolute and gauge pressure |
| RF Frequency | 430 MHz/470 MHz |
| Output signal / Supply | WSN (Wireless sensor network), GPRS, 4G, LoRa, LoRaWAN, , and NB-IoT |
| Power supply | 3.6V battery or 12/24VDC |
| Accuracy | ±0.25%FS ±0.5%FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Maximumrange in open area | 1 km (max.) |
| Transmit power | 20 dbm (Adjustable) |
| Transmit interval | 1s-255s (User definable) |
| Operating Temperature | 20 to 85 °C |
| Material process membrane | Ceramic (96% Al2O3) |
| Long term stability | ≤ ±0.2 % FS/Year |
