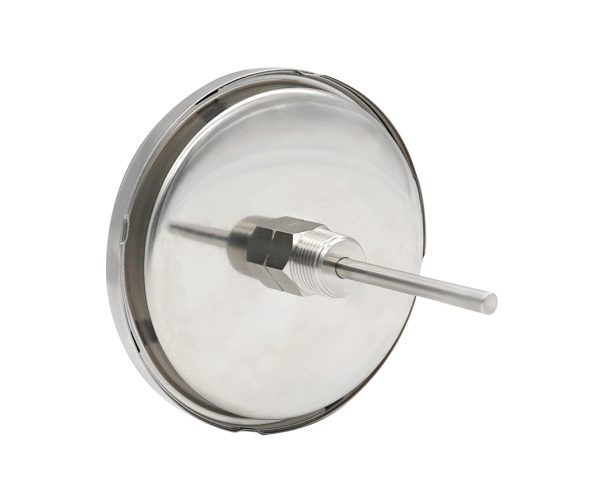

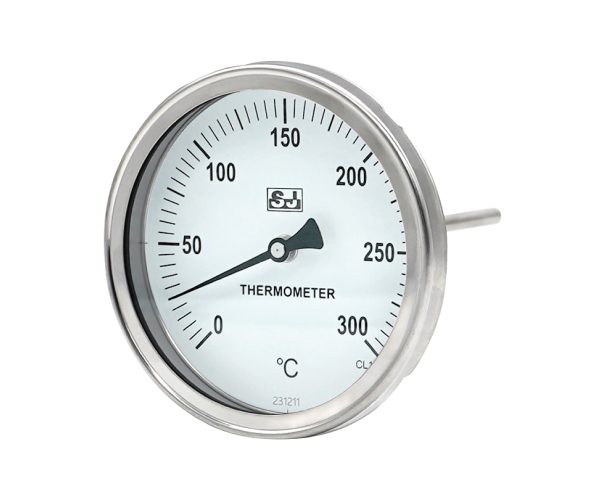

Bimetallic Thermometer, Back Mount
- Stainless steel material, sturdy and durable
- Used in food and air conditioning industries, etc.
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTB.S_BL bimetallic thermometer features a durable stainless-steel construction and a compact back-mount design, making it suitable for general industrial temperature measurement. With scale ranges from –50°C to 600°C and accuracy up to Class 1.0, it provides reliable indication for applications such as food processing, HVAC systems, and various mechanical equipment.
It supports multiple connection types—including male thread, plain stem, compression fitting, union nut, sanitary end cap, and flange designs—allowing flexible installation across different systems. The thermometer is available in sizes from 1.5″ to 6″, with customizable stem lengths and diameters to accommodate diverse installation requirements. Optional features include glycerine filling, adjustable pointers, drag pointers, thermowells, and zero-adjustment screws, offering enhanced durability and operational convenience.
With its rugged build, IP67 protection, and wide compatibility, the MTB.S_BL is a dependable solution for precise and stable temperature indication in both sanitary and industrial environments.
Specifications
| Connection location | Back mount |
|---|---|
| Nominal size | 1.5", 2", 2.5", 3", 4", 5", 6" |
| Scale ranges | -50°C … 600°C |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/8, 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |

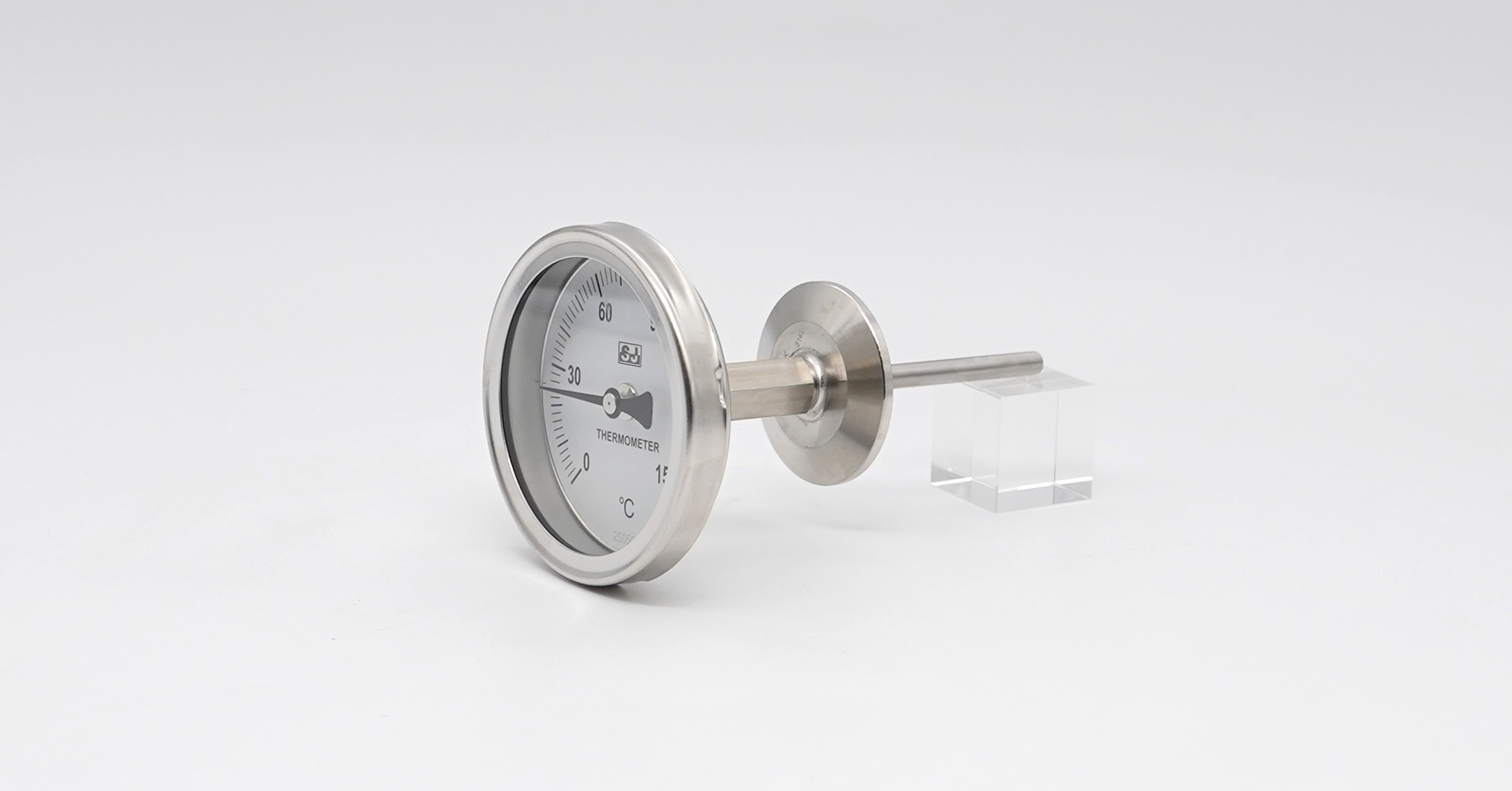

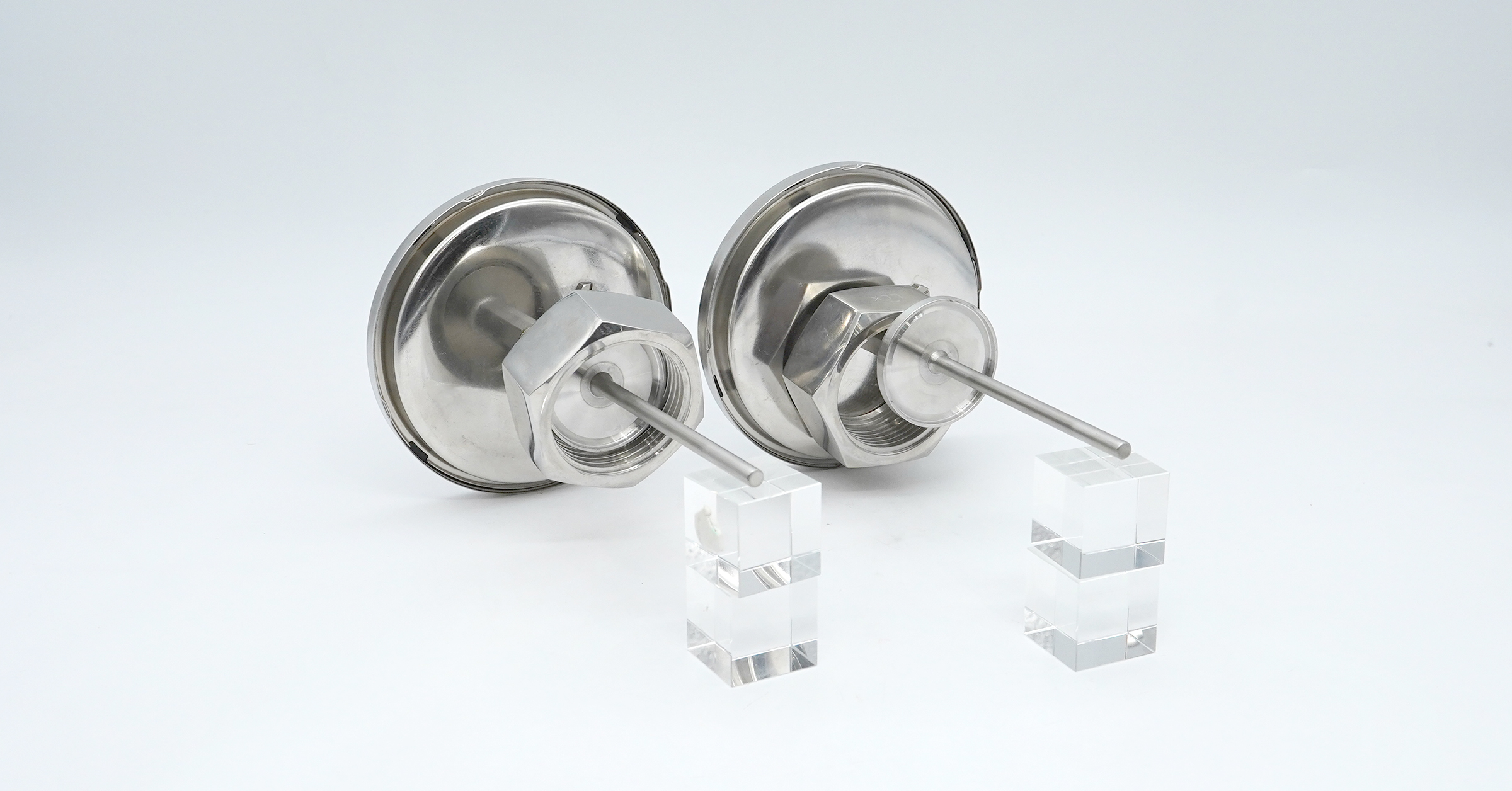

| Connection designs | Male thread, plain stem, compression fitting (sliding on stem), union nut and loose threaded connection, male nut, union nut, sanitary end cap, metallic sheet with dual hole, flange on stem |
| Stem | 304 SS, 316 SS Length: Above 40 mm (without thread) can be customized Diameter: 6, 6.35, 8, 9.5, 10mm |
| Case/Ring | 304 SS, 316 SS |
| Window | Glass, safety glass |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Filling liquid | Without, glycerine |

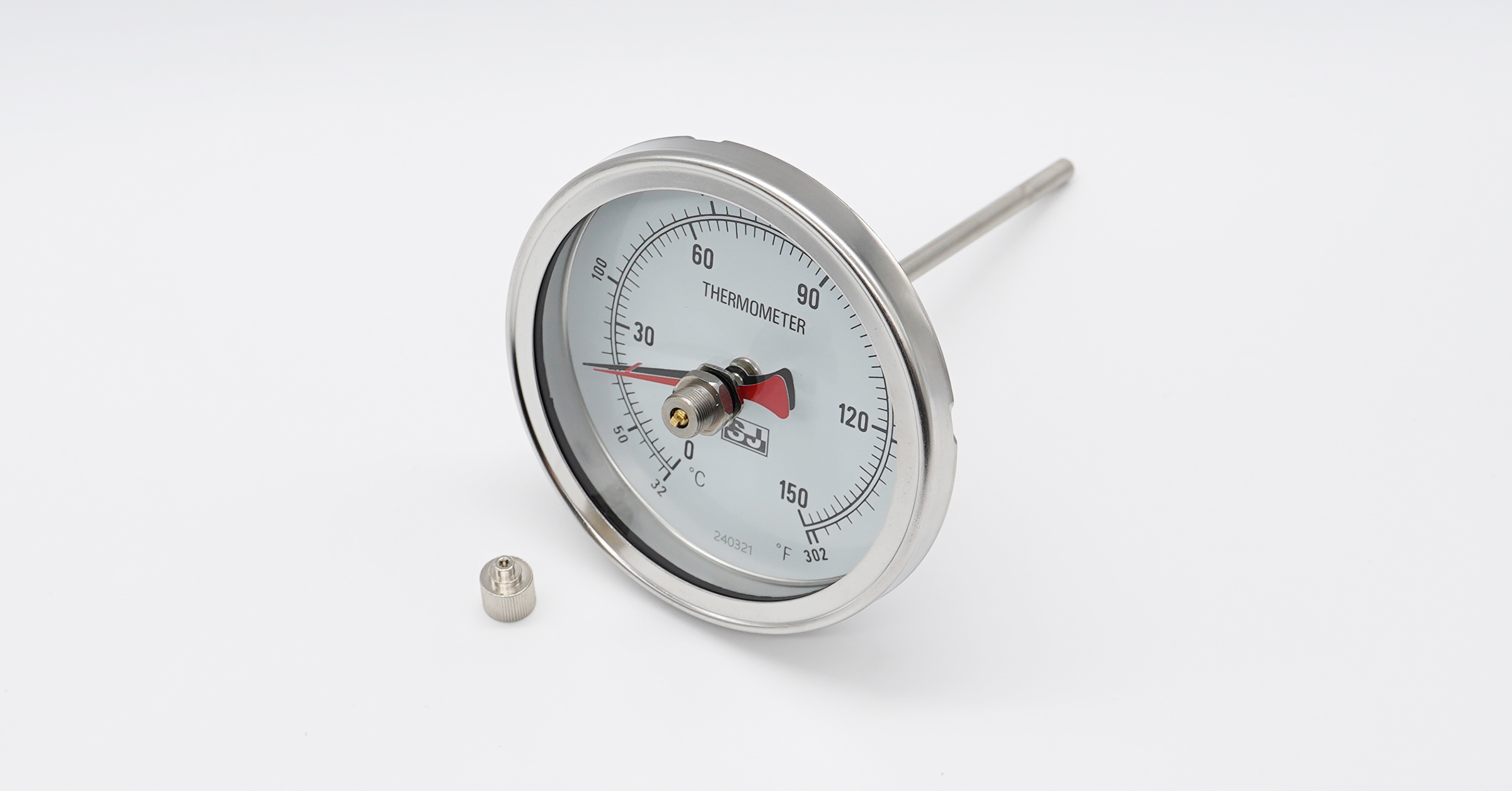

| Accessories (option) | Zero point setting with adjustment screw, thermowell, adjustable set pointer, drag pointer, spacer |
| Protection | IP67 |
