Accessories pressure
SJ Gauge offers a wide range of accessories for pressure gauges and industrial thermometers, including stainless steel siphons, snubbers, cooling elements, gauge cocks, ball valves, overpressure protectors, and manifold valves, which can be selected according to different application requirements.
These accessories help protect instruments, stabilize measurement conditions, and improve heat dissipation, contributing to better system stability and operating efficiency. If you have special specifications or customization requirements, please feel free to contact us.
Pressure Accessories FAQ
Questions for siphons, snubbers, cooling elements, gauge cocks, valves, overpressure protectors, capillaries, manifolds, and calibration reports.
Which accessory protects a pressure gauge from high temperature?
A siphon tube is commonly used for steam service, while a cooling element or capillary can reduce heat transfer to the instrument. The best choice depends on process temperature, installation space, and whether remote reading is needed.
When should I use a pressure snubber?
Use a pressure snubber when the pressure signal has pulsation, sudden spikes, or rapid changes that may damage the gauge or make the pointer unstable. Snubbers help dampen the pressure impulse and improve readability.
What is the purpose of an overpressure protector?
An overpressure protector helps protect a pressure gauge from pressure exceeding its rated range. It is useful in systems where occasional pressure spikes may occur or where the gauge must be protected from accidental overload.
When is a manifold valve needed?
Manifold valves are used with pressure and differential pressure instruments for isolation, equalizing, venting, and calibration. Two-valve, three-valve, and five-valve manifolds are selected based on the instrument and process layout.
Showing all 8 results
Model: PRA-CPCalibration pressure
Model: PRA-SPStainless Steel Siphon Tube
- Siphons protect from sudden pressure changes and excessive heat
- Thread size and tube thickness can be customized
- More than six types available for various installation environments
Model: PRA-BVPressure Gauge Cock
- Extremely low fluid resistance due to the straight-through flow design
- Excellent sealing performance ensures tight shut-off in high pressure
Model: PRA-SBPressure Snubber
- Buffers to avoid damage by excessive pressure change, extending service life
- Internal and external threads can be customized by type and size

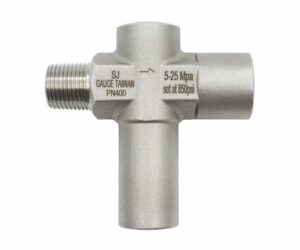

Model: PRA-OPOverpressure Protector
- Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating
- Stainless steel version for corrosive pressure media

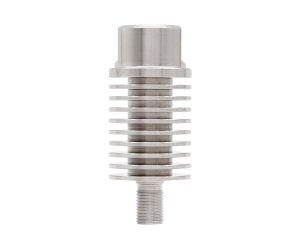

Model: PRA-CCooling Element for Pressure instrument
- Length can be customized according to cooling demand
- Fin designed to increase exposed surface area and improve heat dissipation
Model: PRA-CLCapillary for Pressure Gauge
- Capillary to limit the effects of high process temperatures on the instrument
- Various lengths available for remote observation
Model: MSFZ20~50Valve Manifold for Pressure Instrument
- Divided into 2-valve manifolds, 3-valve manifolds, and 5-valve manifolds based on the applications
- Shut-off, pressure compensating, purge and vent valves for differential pressure measuring instruments
- Widely used in industries of petroleum, chemical, metallurgical, power, liquid, natural gas, and various conveying pipelines
◼️ Figure 1, 2: MSFZ20, 2-valve manifold
◼️ Figure 3, 4: MSFZ30, 3-valve manifold
◼️ Figure 5, 6: MSFZ50, 5-valve manifold
