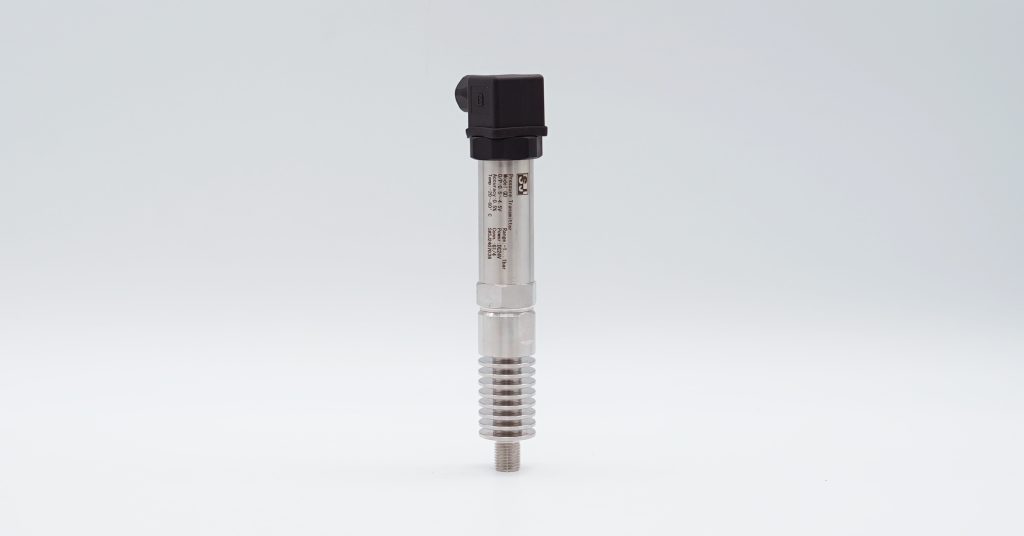

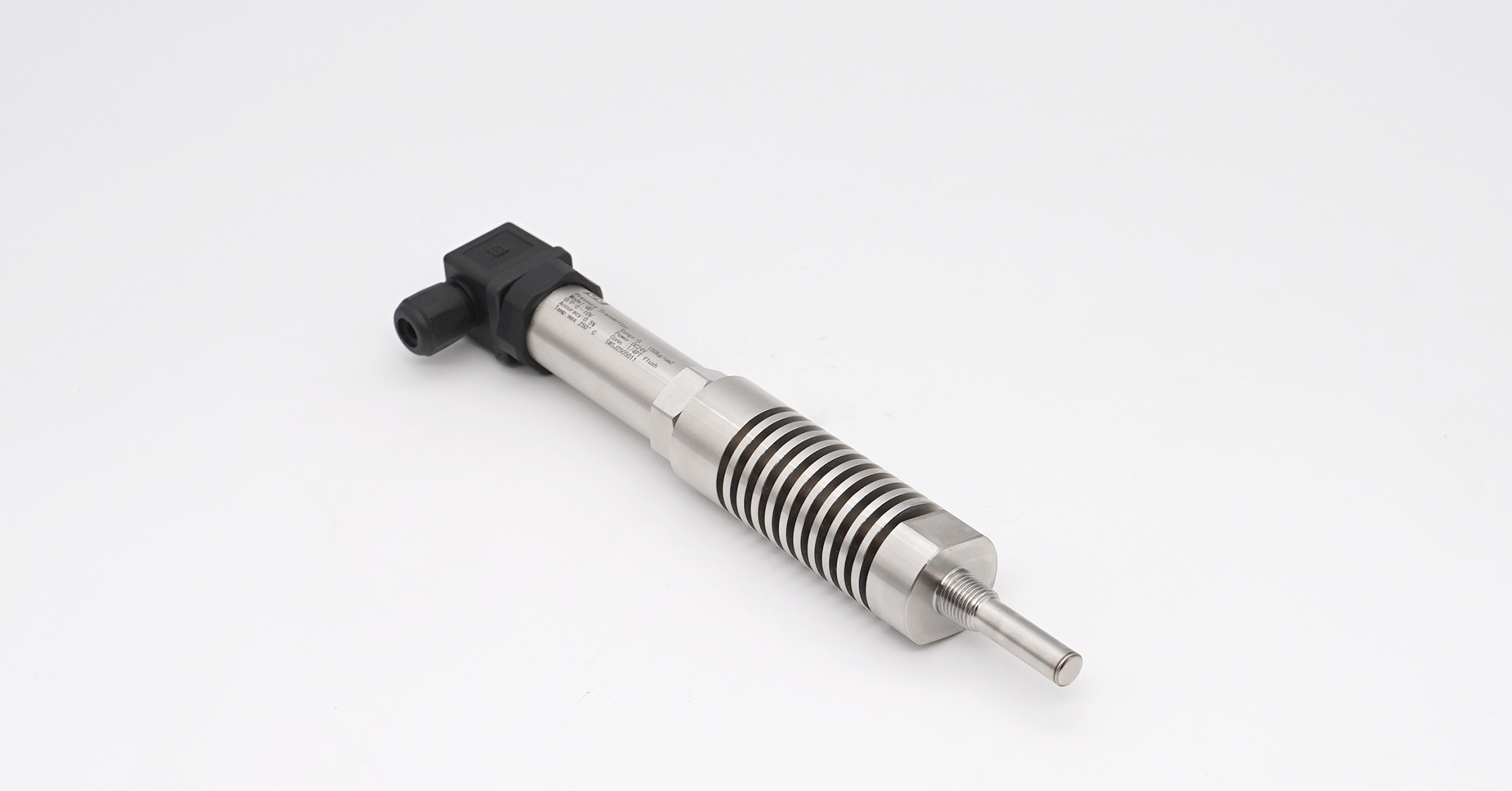

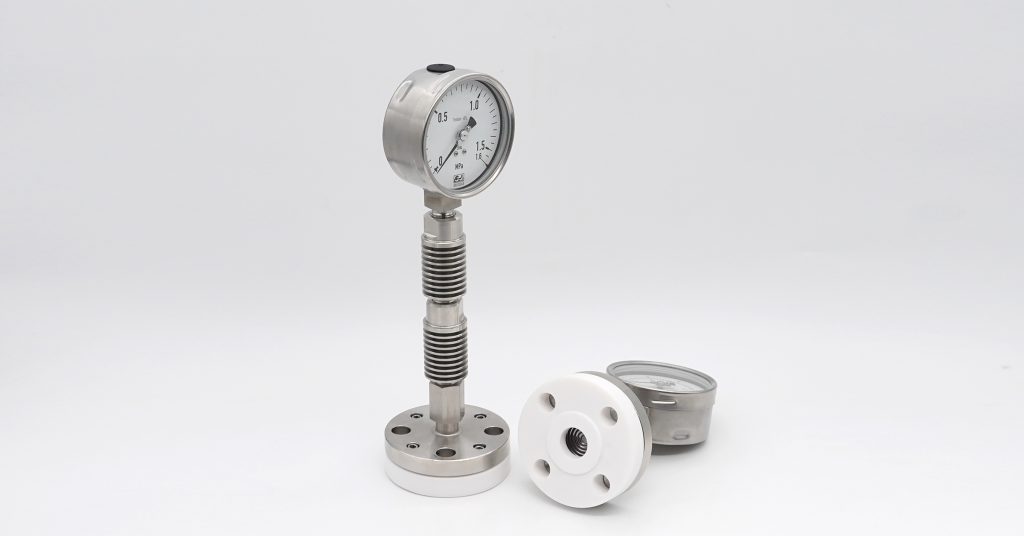

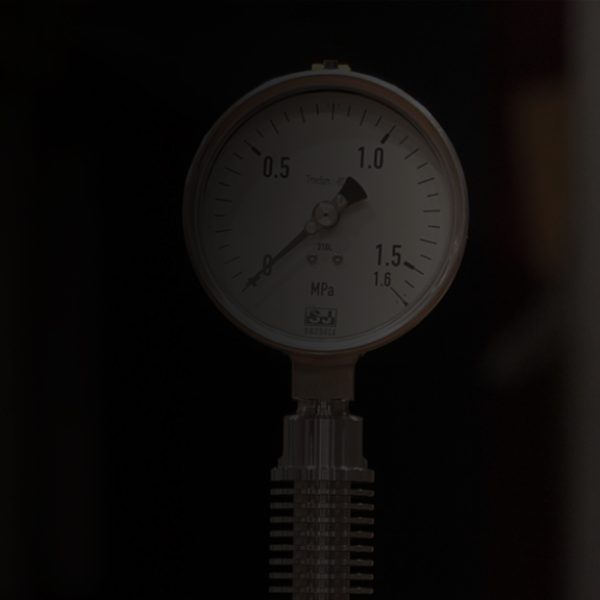

The PRA-C cooling element is designed to protect pressure gauges and transmitters operating in high-temperature environments. With enlarged heat-dissipation fins and customizable length, it effectively reduces the medium temperature before it reaches the instrument, preventing heat-induced damage or measurement drift. Available in 304 and 316 stainless steel with multiple thread standards (PT, G, NPT, M) in both male and female configurations, it is ideal for steam lines, boilers, and high-temperature fluid systems, ensuring long-term measurement stability and instrument protection.
| Process connection | Female, male 1/4, 3/8, 1/2 PT, G, NPT, M |
|---|---|
| Material | 304 SS, 316 SS |
| Diameter | 28、38 mm |
| Length | 78 - 88 mm |
