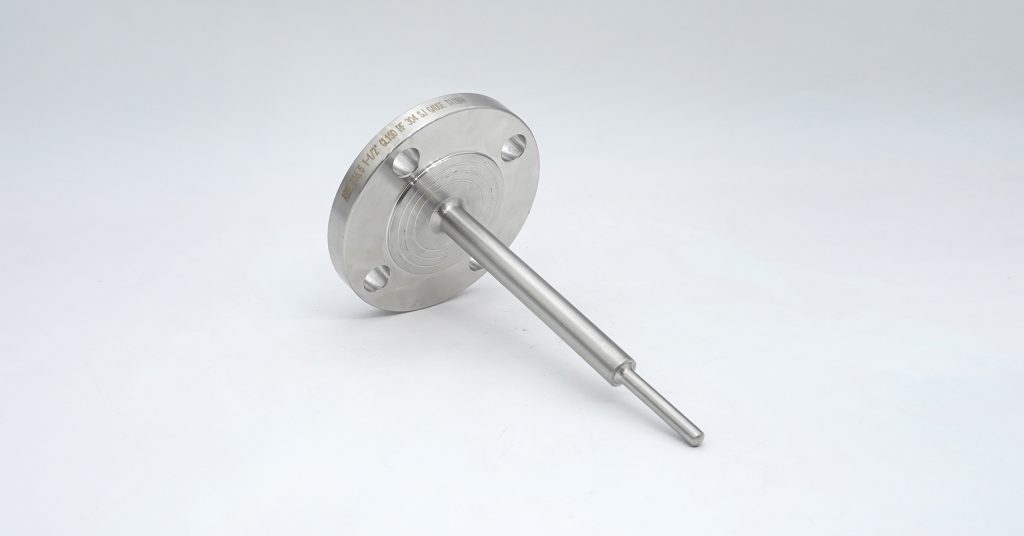

Thermowell for Thermometer, Flanged
- Can be installed on bimetal thermometers, thermometer pointers, and thermocouples
- Suitable for high process and high chemical loads
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The TWF flanged thermowell is made of stainless steel and designed for use with bimetal thermometers, dial thermometers, and thermocouples in high-pressure, high-temperature, and chemically demanding processes. Available in straight, tapered, and stepped designs, it supports international flange standards such as ANSI, JIS, and DIN, making it suitable for petrochemical, energy, chemical, and heavy industrial applications. Its robust construction effectively protects temperature sensors, extends service life, and enhances overall system safety and reliability.
Specifications
| Version | Fabricated from pipe, machined from solid bar stock |
|---|---|
| Type | Straight, tapered, stepped |
| Connection to thermometer | 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Type of process connection | JIS, ANSI, DIN |
| Nominal diameter | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 3" |
| Pressure rating | ANSI: 150, 300, 600LB... JIS: 5, 10, 16K... DIN: PN6, 10, 16... |
| Thermowell | Material: 304 SS, 316 SS Length: can be customized Diameter: 9.5, 10, 12, 15 mm |
| Accessories (option) | Coating, bushing |
