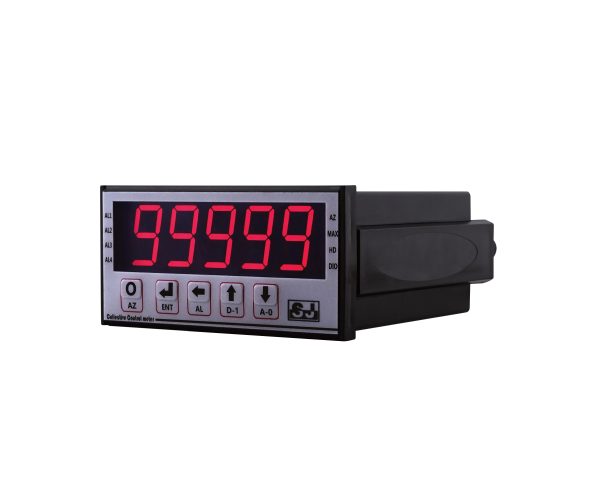

Multi-purpose Digital Panel Meter, 5 Digits
- High stability and safety with flame-retardant casing
- High-brightness LED display with a maximum observation value of up to 5 digits
- Compliant with Conformité Européenne (CE) standards
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The UMA5 is a 5-digit multi-purpose digital panel meter featuring a high-brightness red LED display and high measurement accuracy. It supports a wide range of input signals, including voltage, current, sensors, and transmitters, ensuring clear and reliable data visualization. With flexible output options such as alarm relays, analog output, and RS485 Modbus RTU communication, UMA5 integrates seamlessly into industrial automation systems. Its flame-retardant housing and wide power supply range make it a robust and versatile solution for equipment monitoring, process control, and energy management applications.
Specifications
| Accuracy | ±0.1% F.S. ±1 digit (DC) ±0.2% F.S. ±1 digit (AC) |
|---|---|
| Display Screen | High-brightness red LED 20.5 mm (0.8") |
| Sampling time | 60 cycles/sec |
| Display range | -19999 ... 99999 |
| Display over-range indication | doFL/-doFL |
| Input over range indication | ioFL/-ioFL |
| Parameters indication | Push buttons |
| Back up memory | EEPROM |
| Relay contact | AC 250V/5A DC 30V/7A |
| Analog output resolution | 16 bit |
| Output communication | Current output: ≦ 10V Voltage output: ≦ 20mA |
| Communication | RS485 Modbus RTU mode |
| Baud rate | 19200/9600/4800/2400 bps |
| Tempering temperature | 100 ppm/℃ (0℃ ... 60℃) |
| Ambient temperature& humidity | 0℃ ... 60℃/20% ... 90% RH (non-condensing) |
| Power supply | AC/DC 100V ... 240V AC/DC 22V ... 50V |
| Power consumption | < 6.5VA |
