Differential Pressure Gauge, All-metal Media Chamber
Model:PRDC
Description：
- Feature a highly corrosion-resistant all-metal construction and measuring cell protected against tampering
- Used for pump monitoring and control, filter monitoring and level measurement
- For gaseous and liquid aggressive media that are not highly viscous or crystallizing, also in aggressive environments
- Responsive after-sales service / Customizable / High quality / One-year warranty
- The image is for reference; the actual product will be based on your custom specifications.
- Read more: 7 Steps to Selecting a Pressure Gauge
Download file
Product Specification
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Connection location | Lower mount |
|---|---|
| Nominal size | 4", 6" |
| Scale ranges | 0 ... 1.6 kPa to 0 ... 25 bar |
| Accuracy | ±2.5% F.S., ±1.6% F.S. |
| Process connection | 2 x G1/4, female |
| Case/Ring | 304 SS, 316 SS |
| Window | Safety glass |
| Pointer | Adjustable pointer, aluminum, black |
| Movement | 304 SS |
| Case filling | Without, glycerine, silicone oil |
| Wetted part | 316 SS |
| Ambient temperature | -20℃ ... 60℃ |
| Medium temperature | -20℃ ... 100℃ |
| IP rating | IP54 IP65 (for instrument with case filling) |
| Accessories(Standard) | Instrument mounting bracket for wall or pipe mounting Steel, silver painted |
Actual Product Images

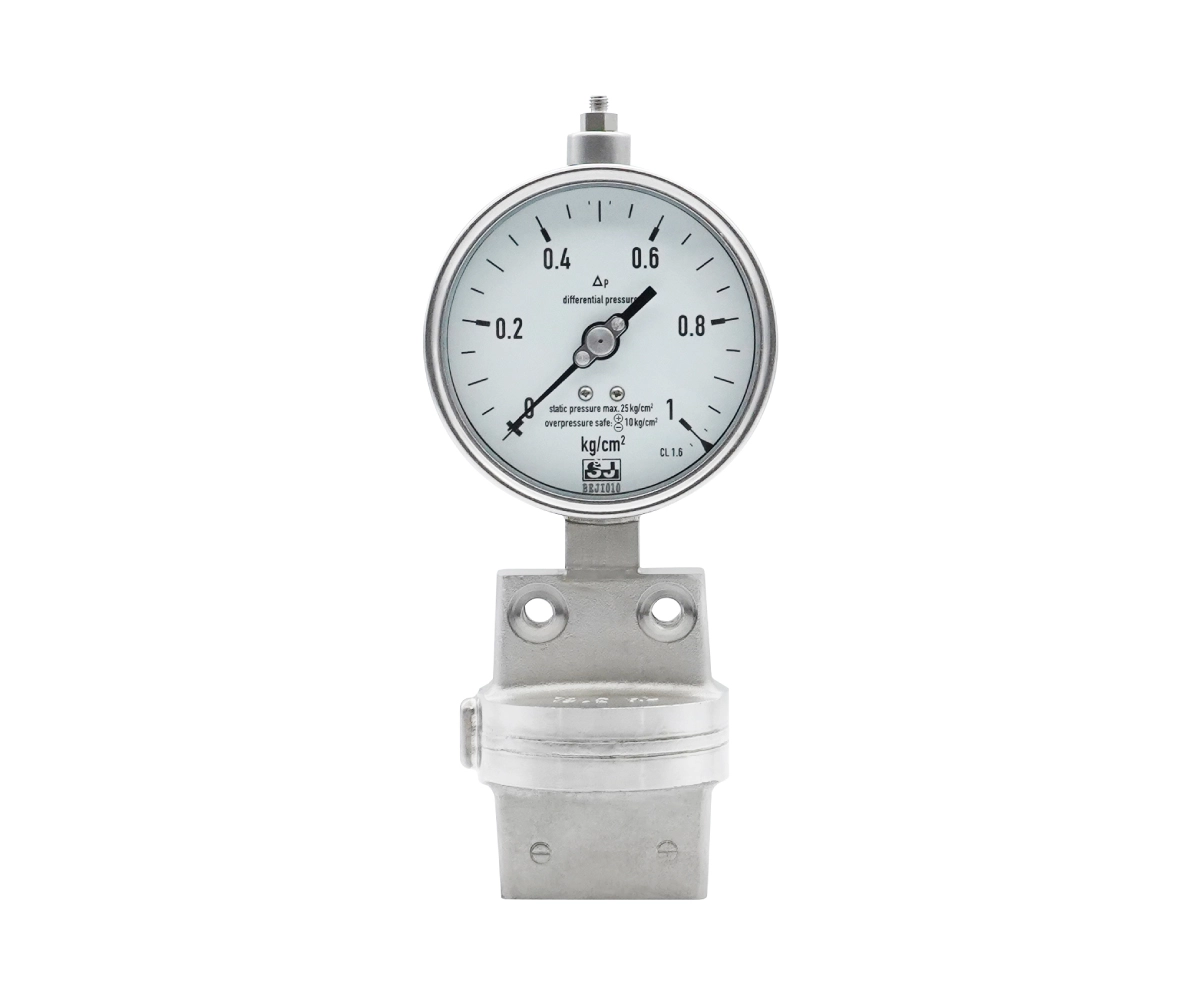

Differential pressure gauge full set with mounting parts

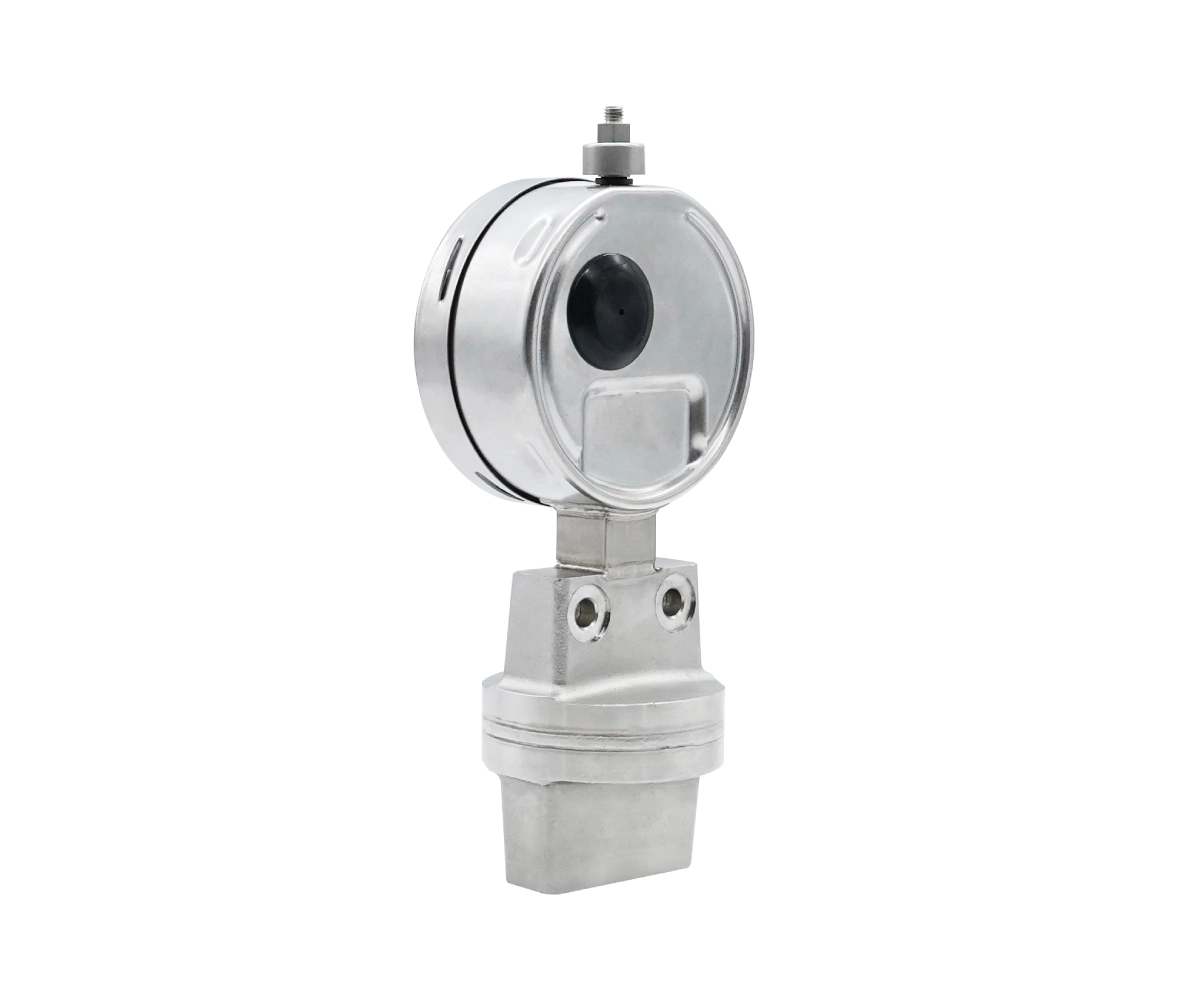

Back view showing mounting bracket and gauge body
316L differential gauge with high and low pressure ports
