Expansion Thermometer, Warning/Alarm Contact and Capillary
- Can measure the temperature devices with electrical contacts
- Length of the capillary can be adjusted on demand for remote observation
- If you do not need the contact function, please refer to MTR.S
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTR.S-E is a capillary expansion thermometer equipped with warning/alarm switch contacts, designed for industrial applications requiring both temperature indication and signal output. Its adjustable capillary length allows remote reading by separating the display from the measuring point. Featuring a stainless steel construction and a temperature range up to 700°C, the MTR.S-E supports single or double switch contacts for alarm or control purposes. It is widely used in process equipment, heating systems, chemical plants, and energy-related applications.
Specifications
| Connection location | Lower mount with surface mounting flange, lower mount with surface mounting bracket (3 holes), back mount with panel mounting flange, back mount with U-clamp |
|---|---|
| Nominal size | 3", 4", 6" |
| Scale ranges | -50℃ … 700℃ |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Connection designs | Union nut and loose threaded connection, male thread, plain stem, compression fitting (sliding on stem), male nut, union nut, sanitary end cap, flange on stem |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Stem | 304 SS, 316 SS Length: above 50 mm (without thread) can be customized Diameter: 6.35, 8, 9.5, 10, 12 mm |
| Capillary | Sheathing: 304 SS, PVC, without Length: 0.2 M ... 20 M |
| Case/Ring | 304 SS |
| Window | Glass, acrylic |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Case filling | Without, glycerine, silicone oil |
| Ambient temperature | -20℃ … 70℃ |
| Switch contact | Type: Banana connector, rear cable outlet, cable socket Functions: Single contact N.O., single contact N.C., double contacts N.O. + N.C. Version: Reed contact Adjustment knob: None, plastic knob with acrylic window, metal knob with glass window |
| Electrical contact specifications | Rated operating voltage: 250 V (Max.) Switching power max.: 30 W ~ 50 VA (Max.) Switch-on current: 1.0 A (Max.) Switch-off current: 1.0 A (Max.) Continuous current: 0.6 A (Max.) |
| Accessories (option) | Thermowell, drag pointer, spacer, cable with signal output PT100 |
| IP rating | IP65 |

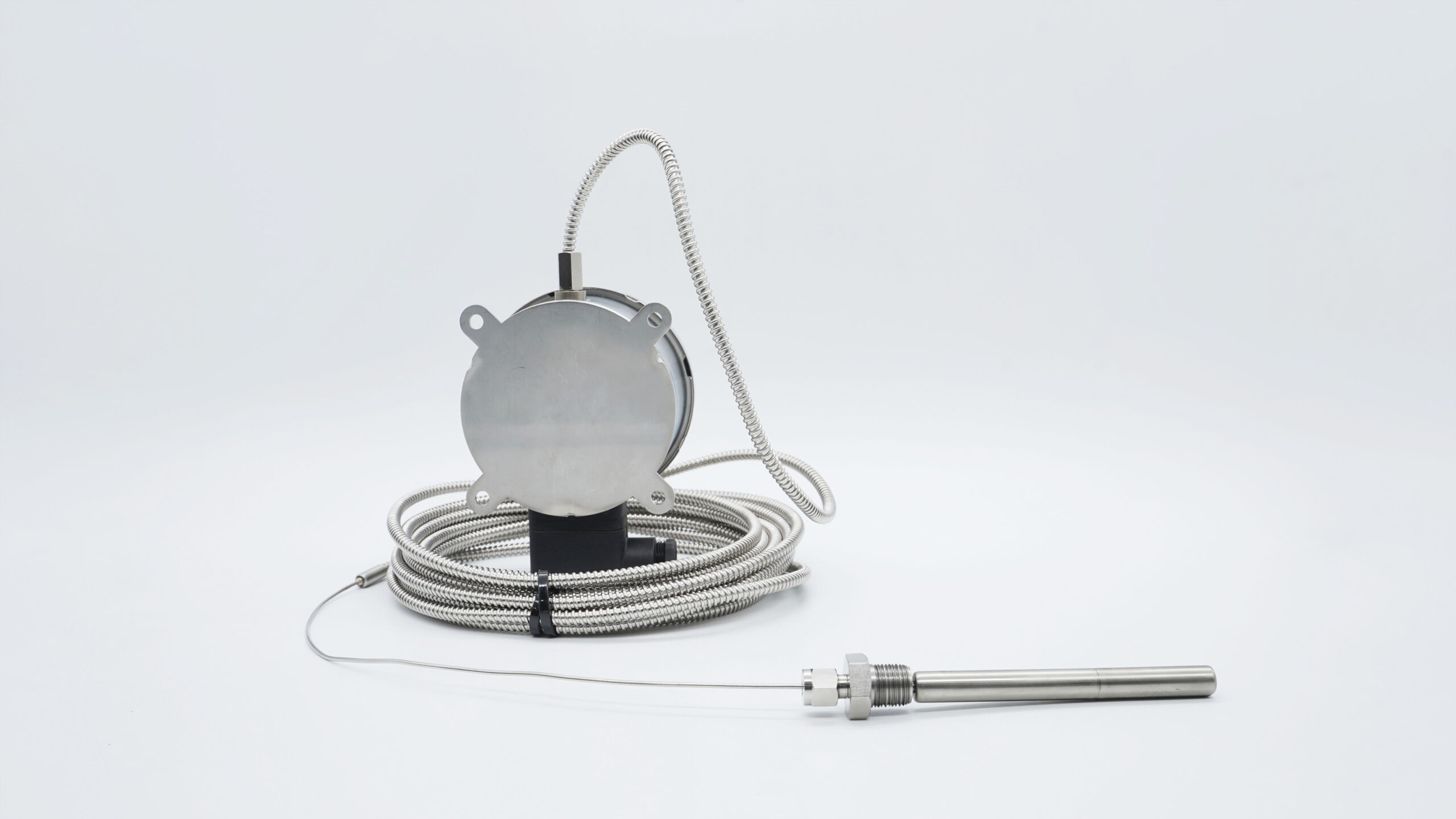

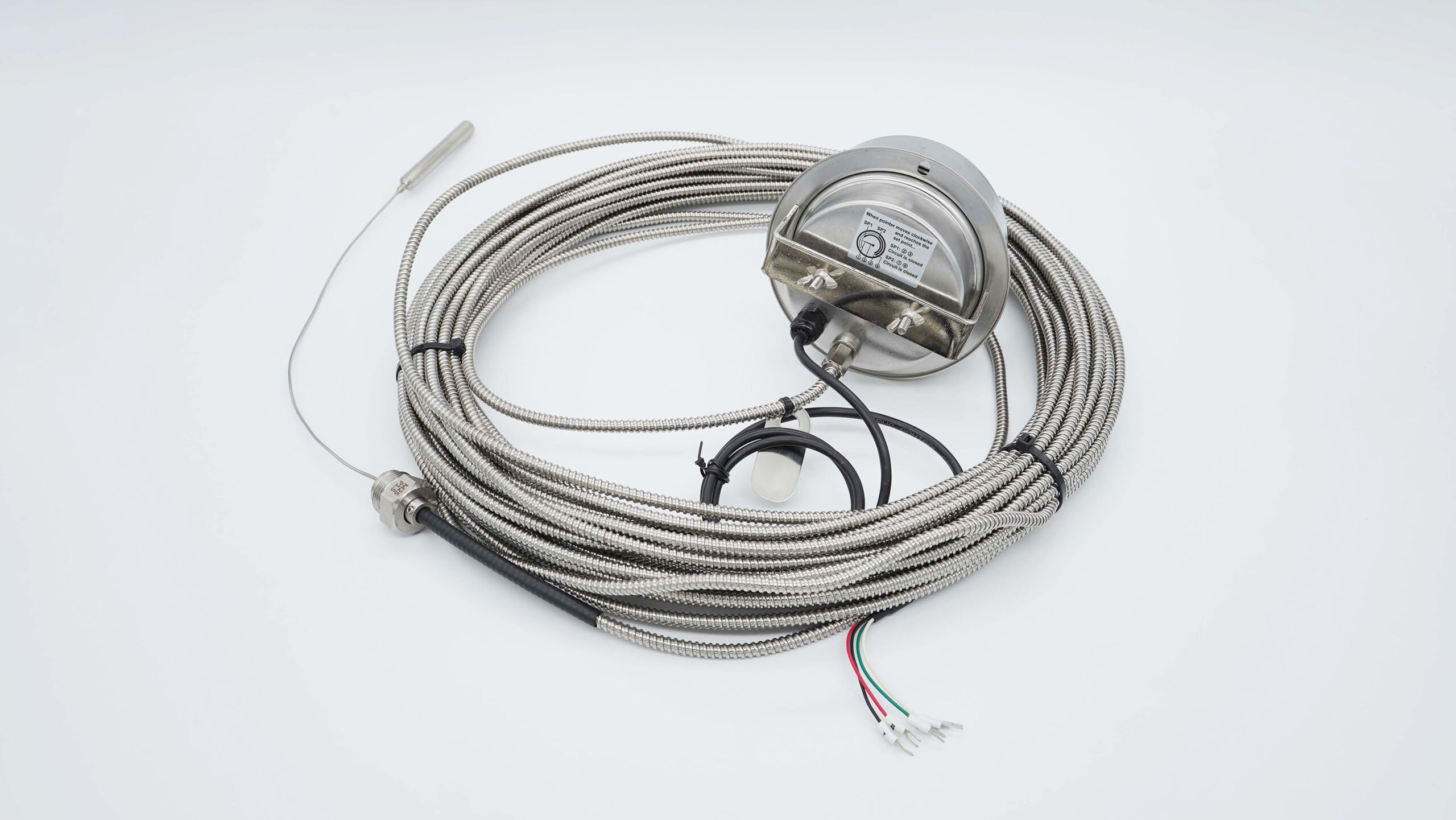

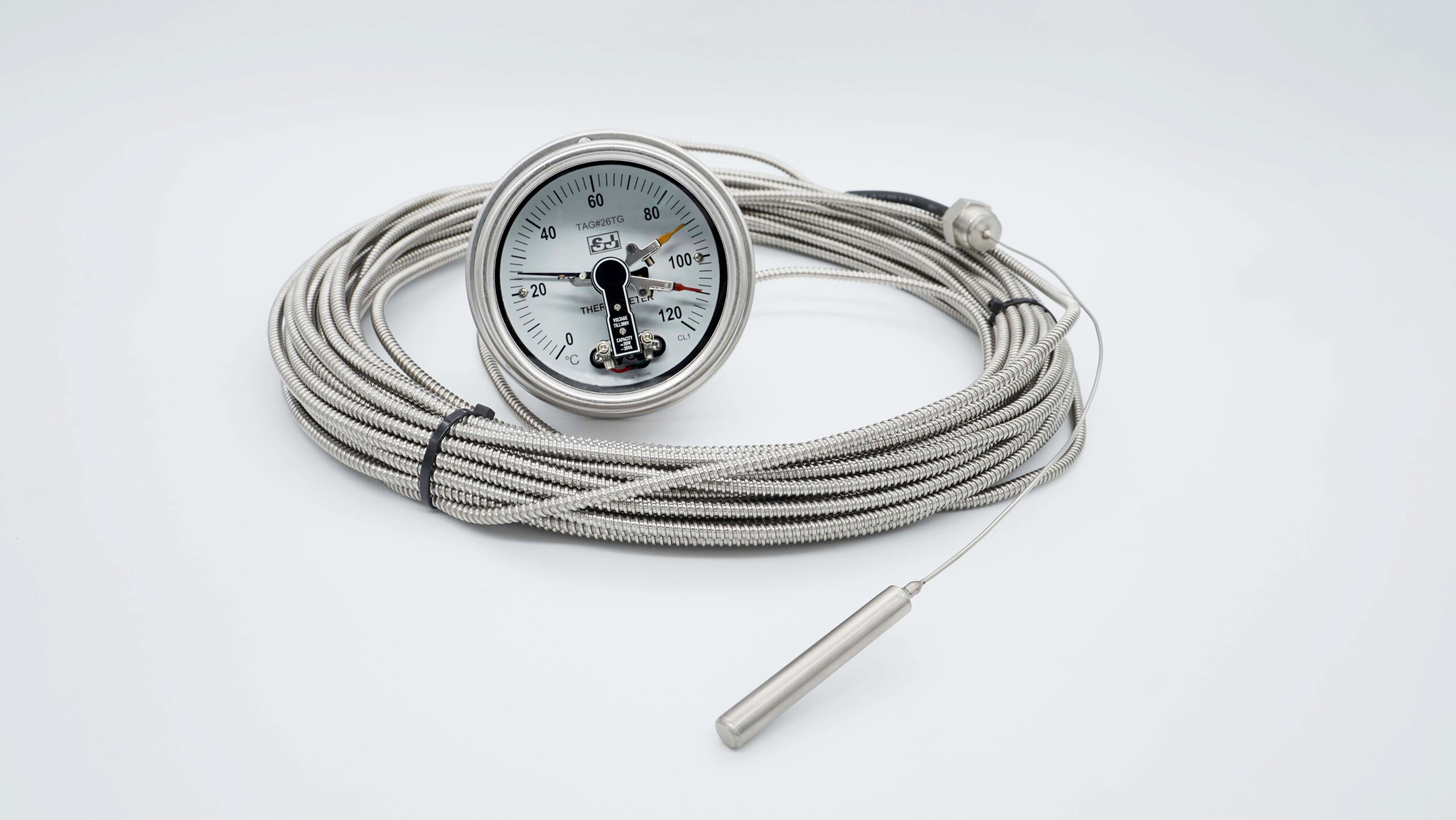

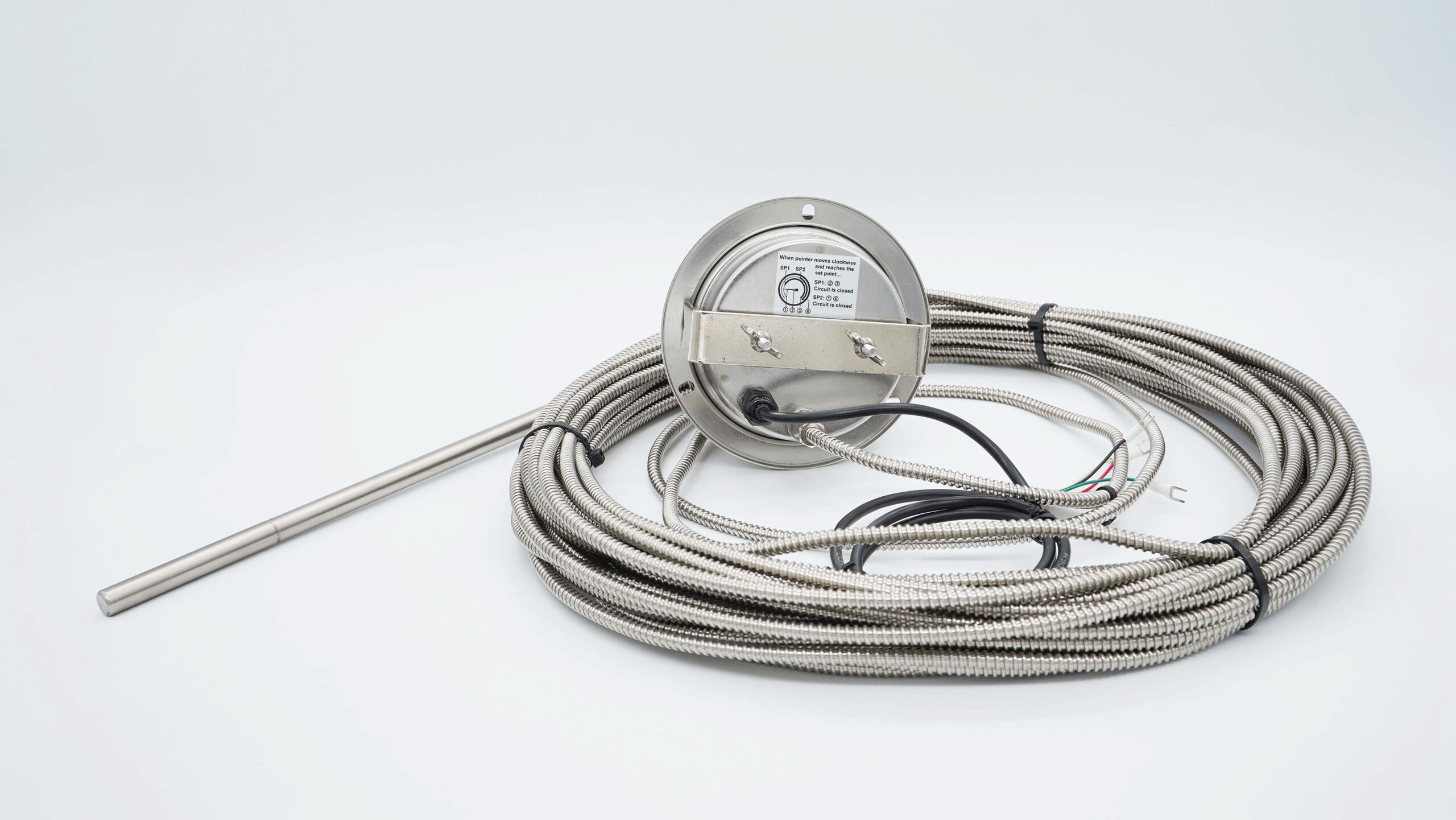

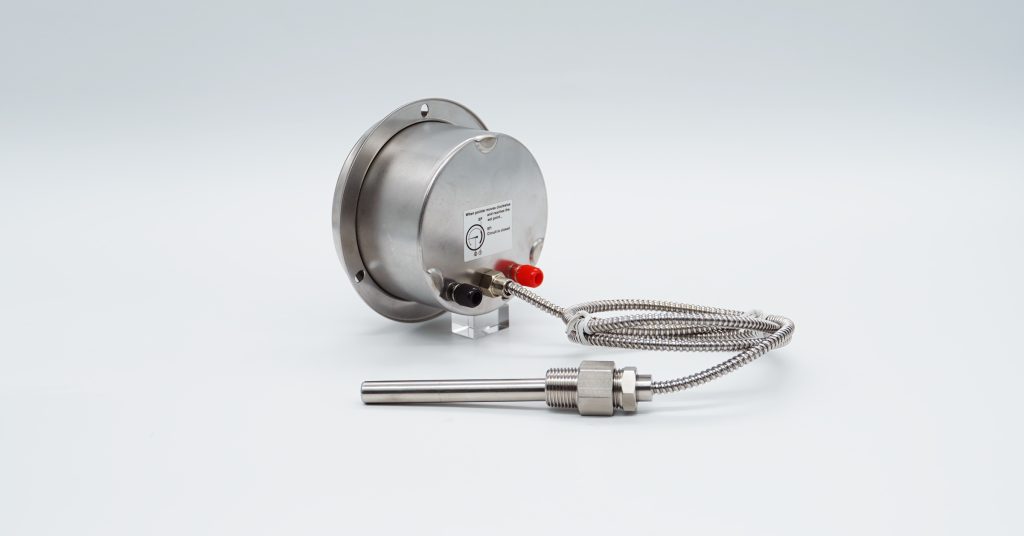

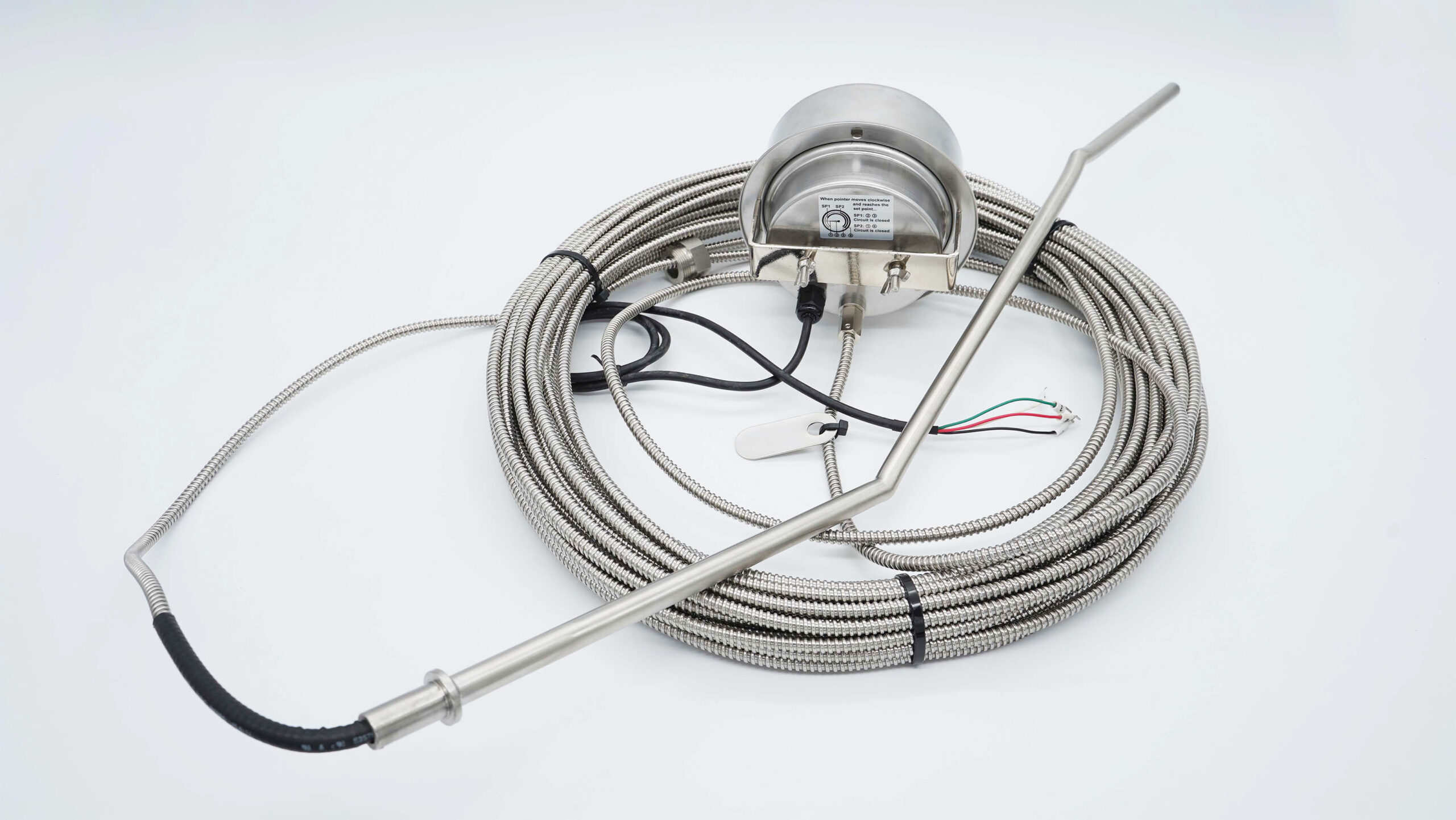

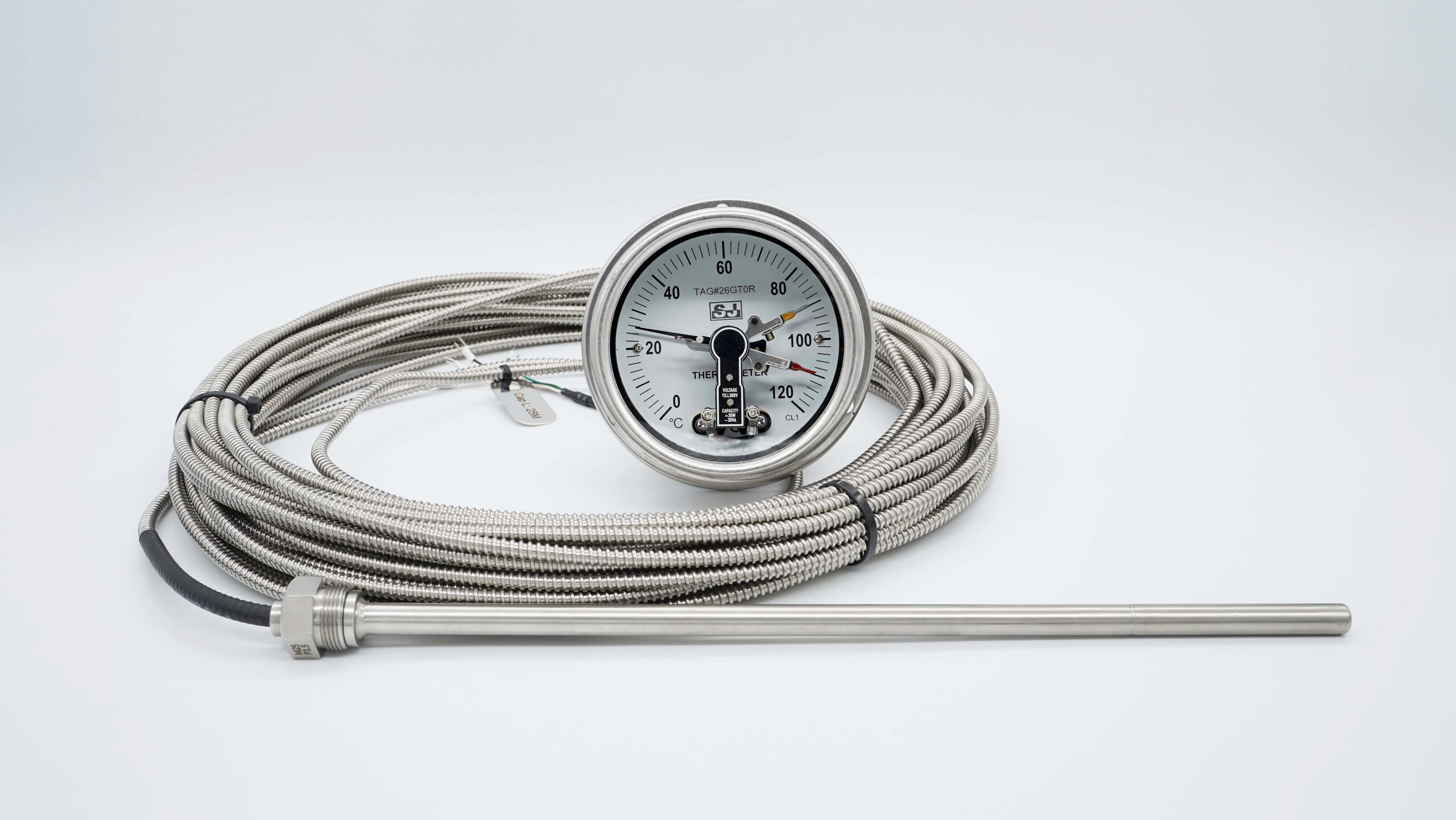

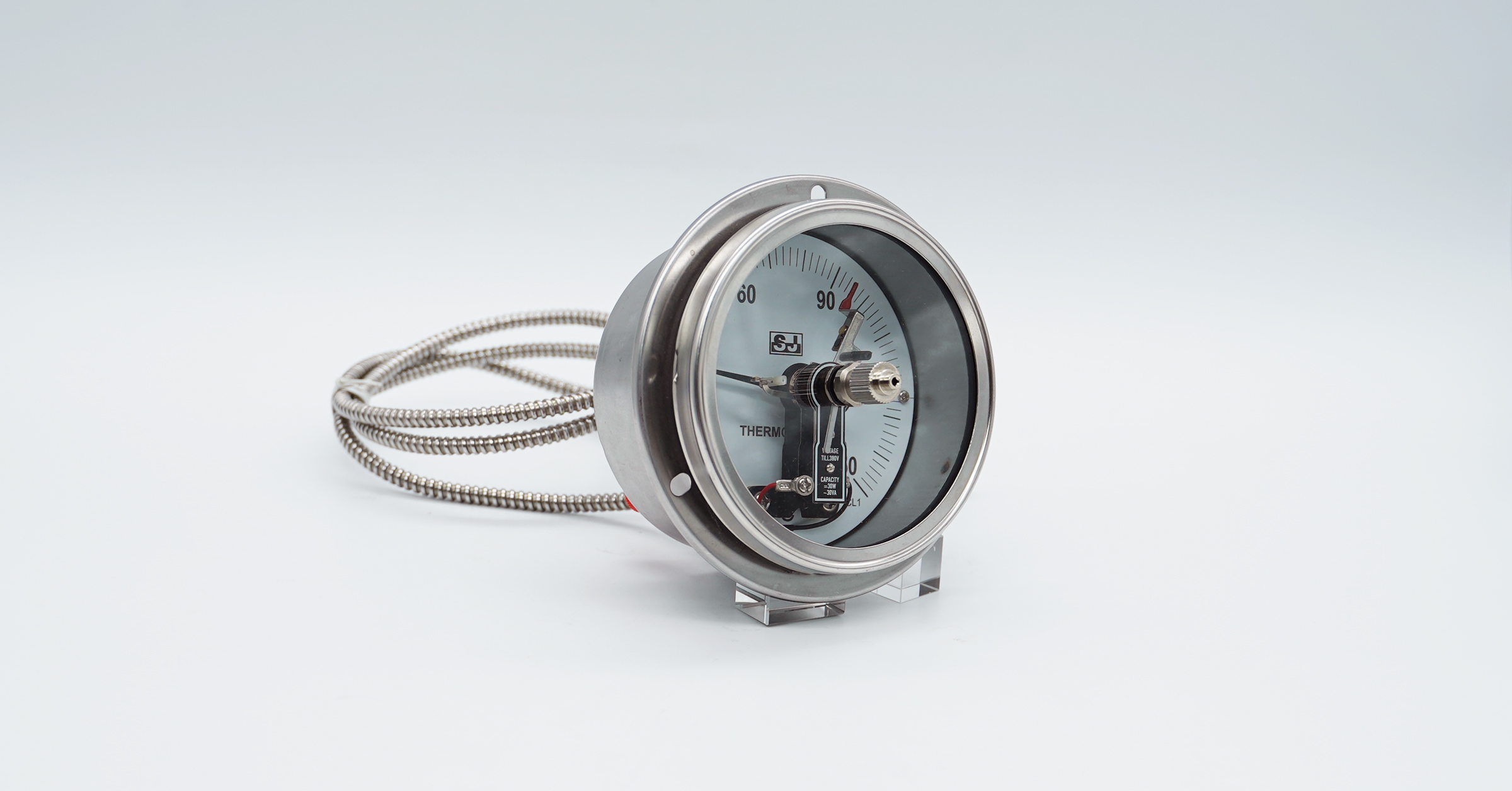

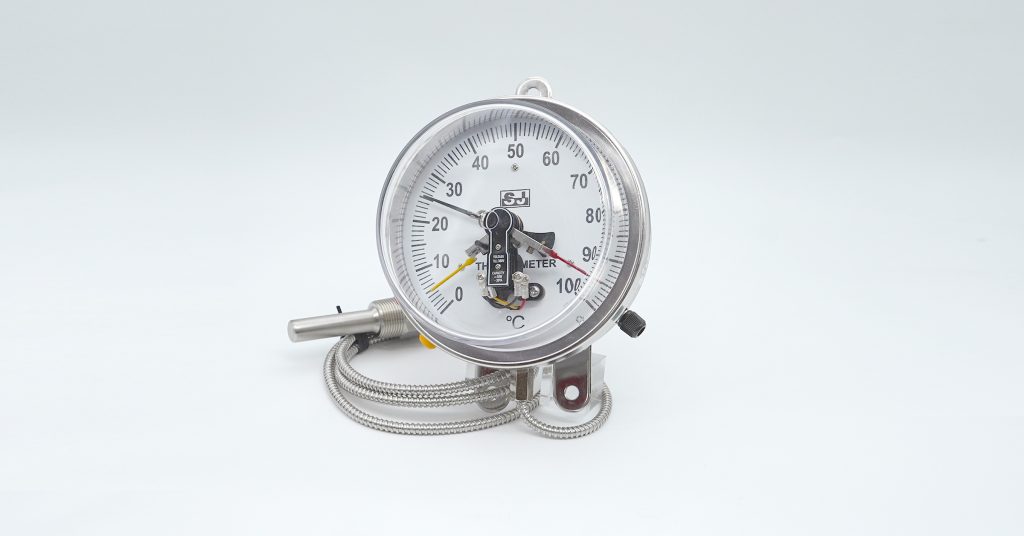

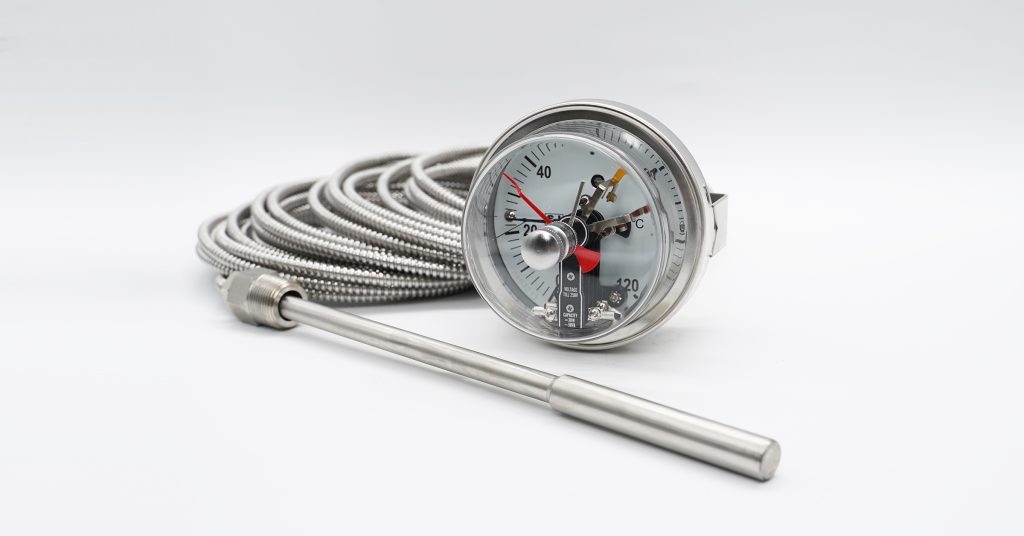

Product Images
