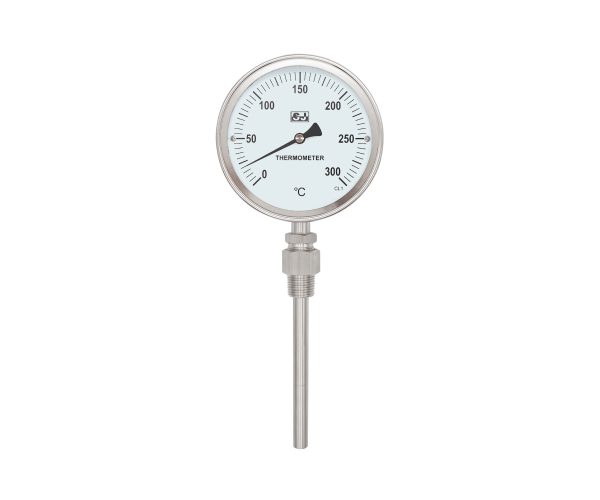

SJ Gauge industrial expansion thermometer with gas-actuated sensing system

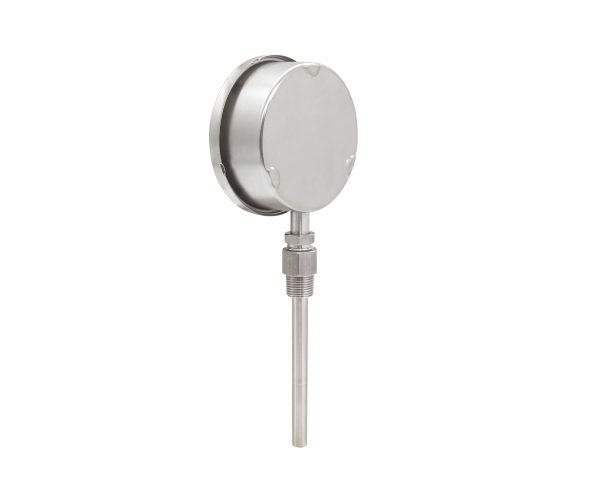

SJ Gauge gas-actuated industrial temperature gauge
  1. SJ Gauge industrial expansion thermometer with gas-actuated sensing system
  2. SJ Gauge gas-actuated industrial temperature gauge

Expansion Thermometer, Gas-actuated

Model: MTG
  • Fast measuring reaction
  • Measuring range can be adjusted up to 600°Ｃ
  • Used in chemical and petrochemical industries, etc.
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The MTG gas-actuated bimetallic thermometer utilizes a gas expansion system to deliver fast response and stable temperature measurement, making it ideal for high-temperature and dynamic process applications. With measuring ranges up to 700°C and multiple mounting options including bottom mount, back mount, and adjustable angle, MTG offers excellent installation flexibility. It is widely used in chemical, petrochemical, energy, and general industrial processes, providing a reliable solution for high-temperature monitoring.

Product Images

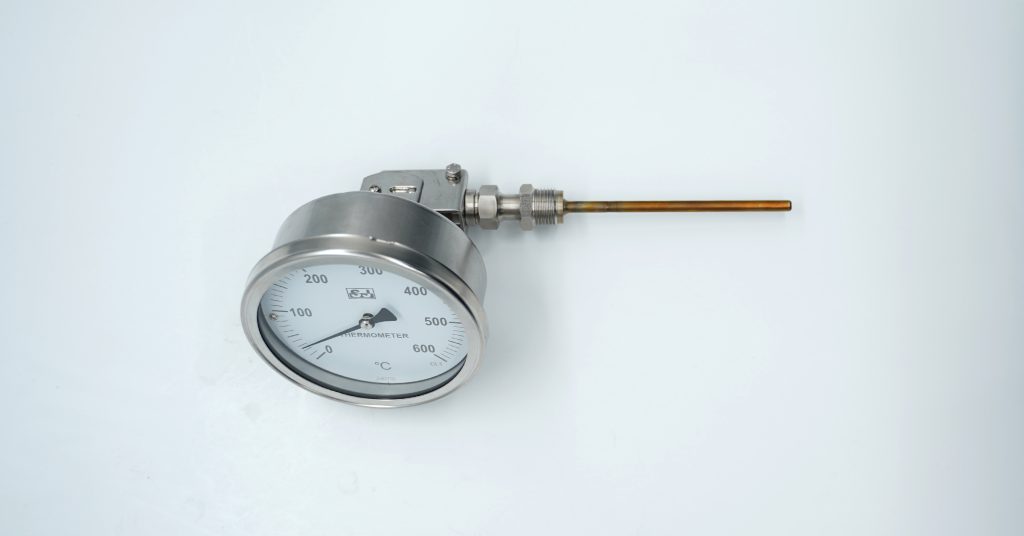

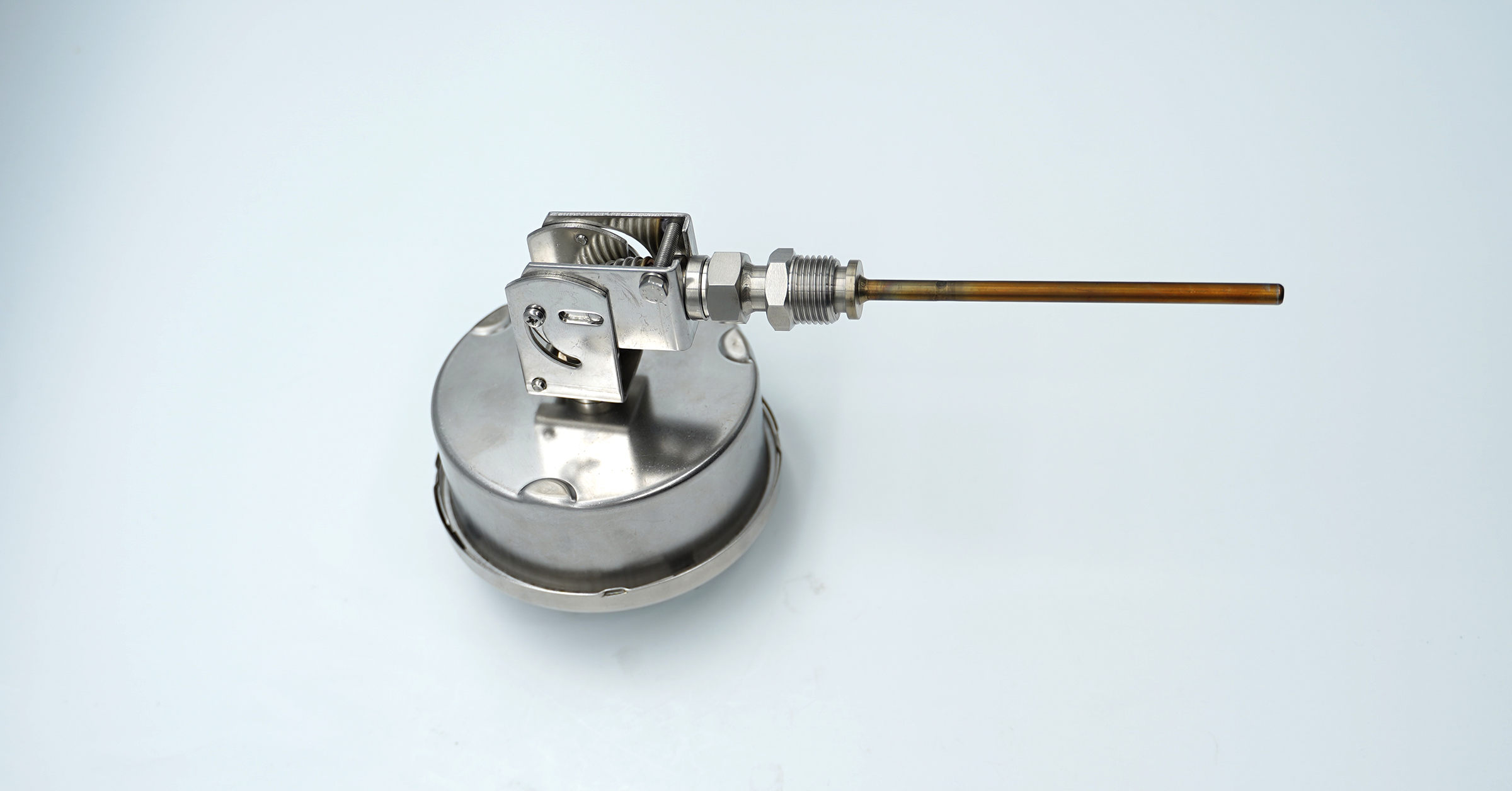

Adjustable angle expansion thermometer
Adjustable angle expansion thermometer
Adjustable angle expansion thermometer
Adjustable angle expansion thermometer

Downloads

English

SJ-Gauge-MTG-expansion-thermometer-datasheet-en

Traditional Chinese

SJ-Gauge-MTG-expansion-thermometer-datasheet-ch

Specifications

Connection locationBottom mount, back mount, adjustable angle
Nominal size2.5", 3", 4", 5", 6"
Scale ranges-50°C … 700°C
AccuracyCL 1.0
Process connection
  • 304 SS, 316 SS
  • 1/4, 3/8, 1/2, 3/4
  • PT, G, NPT, M
Sanitary end cap1", 1 1/2", 2", 2 1/2", 3", 4"
Connection designsUnion nut and loose threaded connection, male thread, plain stem, compression fitting (sliding on stem), male nut, union nut, sanitary end cap, flange on stem
Stem
  • 304 SS, 316 SS
  • Length: Above 50 mm (without thread) can be customized
  • Diameter: 6.35, 8, 9.5, 10, 12 mm
Case/Ring304 SS
WindowGlass, safety glass
Dial
  • Aluminum alloy
  • Black scale on white
PointerBlack aluminum alloy
Filling liquidWithout, glycerine, silicone oil
Accessories (options)Thermowell, drag pointer, spacer, cable with signal output PT100
IP ratingIP65
