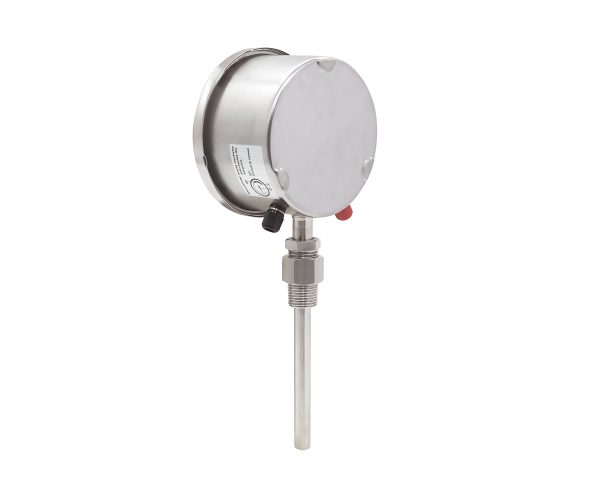

SJ Gauge gas-actuated expansion thermometer with electrical alarm contact

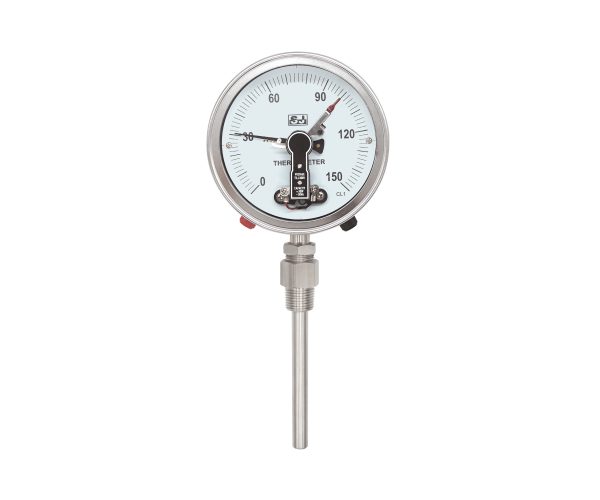

SJ Gauge gas-actuated temperature gauge with alarm contact
  1. SJ Gauge gas-actuated expansion thermometer with electrical alarm contact
  2. SJ Gauge gas-actuated temperature gauge with alarm contact

Expansion Thermometer, Alarm Contact

Model: MTG-E
  • Thermometer with magnetic snap-action contact available for automated control
  • Used in machine building, factory, and vessel construction
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The MTG-E is an expansion thermometer with built-in alarm contacts, featuring a magnetic snap-action switch that provides reliable signal output when the temperature reaches a preset value. Designed for fast response and high-temperature measurement up to 700 °C, it is ideal for process monitoring and automated control applications. With flexible mounting options including bottom mount, back mount, and adjustable angle, as well as selectable single or double contacts (N.O./N.C.), the MTG-E is widely used in machine building, industrial plants, and vessel systems where temperature monitoring and safety interlocking are required.

Product Images

Expansion thermometer with terminal box
Expansion thermometer with terminal box
Expansion thermometer with junction box
Expansion thermometer with junction box
Temperature gauge with switch contact
Temperature gauge with switch contact

Downloads

English

SJ-Gauge-MTG-E-expansion-thermometer-datasheet-en

Traditional Chinese

SJ-Gauge-MTG-E-expansion-thermometer-datasheet-zh-tw

Specifications

Connection locationBottom mount, back mount, adjustable angle
Nominal size3", 4", 6"
Scale ranges-50°C ... 700°C
AccuracyCL 1.0
Process connection
  • 304 SS, 316 SS
  • 1/4, 3/8, 1/2, 3/4
  • PT, G, NPT, M
Connection designsUnion nut and loose threaded connection, male thread, plain stem, compression fitting (sliding on stem), male nut, union nut, sanitary end cap, flange on stem
Sanitary end cap1", 1 1/2", 2", 2 1/2", 3", 4"
Stem
  • 304 SS, 316 SS
  • Length: Above 50 mm (without thread) can be customized
  • Diameter: 6.35, 8, 9.5, 10, 12 mm
Case/Ring304 SS
WindowGlass, acrylic
Dial
  • Aluminum alloy
  • Black scale on white
PointerBlack aluminum alloy
Switch contact
  • Type: Banana connector, rear cable outlet, cable socket
  • Functions: Single contact N.O., single contact N.C., double contacts N.O. + N.C.
  • Version: Reed contact
  • Adjustment knob: None, plastic knob with acrylic window, metal knob with glass window
Electrical contact specifications
  • Rated operating voltage: 250 V (Max.)
  • Switching power max.: 30 W ~ 50 VA (Max.)
  • Switch-on current: 1.0 A (Max.)
  • Switch-off current: 1.0 A (Max.)
  • Continuous current: 0.6 A (Max.)
Accessories (option)Thermowell, drag pointer, spacer, signal output PT100
IP ratingIP65
