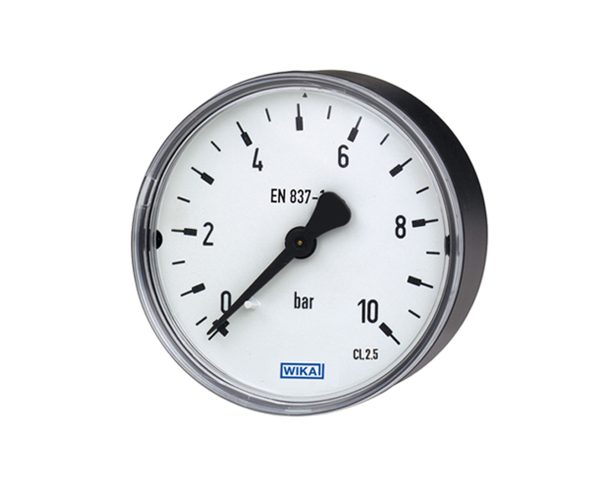

Bourdon tube pressure gauge, copper alloy Standard version

Model: 111.10, 111.12

Copper alloy wetted parts
ABS plastic or painted steel case
Lower mount (LM) process connection

Responsive after-sales service / Customizable
High quality / One-year warranty
The image is for reference; the actual product willbe based on your custom specifications.

Description

The model 111 pressure gauges are based on the proven Bourdon tube measuring system. The deflection of the Bourdon tube is transmitted to a movement and indicated.

The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to the high variance, the instrument is suitable for use in a wide range of applications within industry.

For mounting in control panels, the pressure gauges can, depending on the process connection, be fitted with a surface mounting flange or with a triangular profile ring and mounting bracket.

The standard version of the model 111 is manufactured, cost-optimised on modern production lines, in volumes of several million instruments per year.
