SJ Gauge diaphragm seal for high-temperature melt pressure measurement

Diaphragm Seal for Melting High Temperature

Model: DIHI
  • Used to measure molten state process media
  • A capillary can be selected, suitable for remote observation
  • Widely used in the synthetic chemical, synthetic fiber, and plastic industries
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The DIHI high-temperature melt diaphragm seal is engineered for measuring molten and high-temperature process media such as plastics, synthetic fibers, and chemicals. Built with a 316L stainless steel body and diaphragm, it withstands temperatures up to 330°C while maintaining stable and accurate pressure transmission. It is available with a rigid stem or an extended capillary design, making it ideal for applications requiring remote pressure indication. Compatible with both pressure gauges and transmitters, DIHI is widely used in plastic extrusion, chemical processing, and fiber production—offering a reliable and durable solution for extreme-temperature pressure measurement.

Product Images

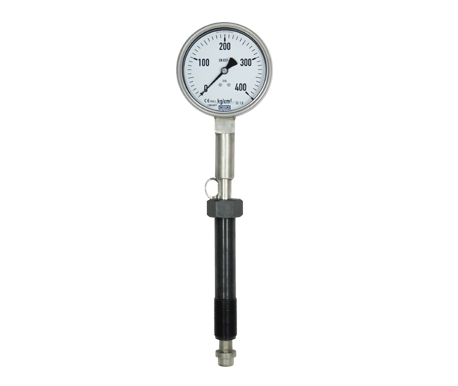

DIHI | Diaphragm Seal for Melting High Temperature
DIHI | Diaphragm Seal for Melting High Temperature

Downloads

English

SJ_DIHI_cc_(en)_melt_diaphragm_seal

Traditional Chinese

SJ_DIHI_cc_(ch)_melt_diaphragm_seal

Specifications

TypeRigid stem, rigid stem with capillary extension
Process connection
  • Transmitter: 1/2"-20UNF, G 1/2"
  • Pressure gauge, transmitter: G 3/4", G 1"
Scale ranges0 ... 100 bar to 0 ... 1000 bar, or all other equivalent pressure ranges
Material
  • Body: 316L SS
  • Diaphragm: 316L SS
Rigid stem
  • Length: 150 mm (standard), 100 ... 500 mm
  • Material: C.S. (standard), 304 SS, 316 SS
Capillary
  • Length: 0.5 ... 20 m
  • Material: 304 SS
Process medium temperature330℃ (Max.)
