SJ Gauge flush diaphragm seal for industrial pressure instruments

Threaded Connection, Flush Diaphragm

Model: DIT-FS
  • Threaded connection design for easy installment
  • Ideal for application with high pressure and limited space
  • Can be used in heavy industries such as mining, tunnel digging, etc.
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The DIT-FS flush diaphragm seal features a threaded connection for fast and easy installation, offering a compact and robust structure ideal for high-pressure applications or locations with limited space. Its durable metal diaphragm provides reliable performance in harsh environments, making it suitable for use with pressure gauges or transmitters in mining, tunneling, heavy industry, and applications where clogging from crystallizing or viscous media must be avoided.

Specifications

Process connection1/2, 3/4, 1, 1 1/2, 2
PT, G, NPT, M
Instrument connection1/4, 3/8, 1/2
PT, G, NPT, M
Scale RangesPressure gauge:
1" ... 2": 0 ... 25 bar to 0 ... 1000 bar
Transmitter:
1/2", 3/4": 0 ... 10 bar to 0 ... 1000 bar
1" ... 2": 0 ... 0.25 bar to 0 ... 1000 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
MaterialBody: 304SS, 316 SS, 316L SS, Dual phase steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200
Diaphragm: 316L SS, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200
Medium temperature0°C ... 80°C, 81°C ... 200°C, 201°C ... 400°C
OthersWelded with instrument, coating

Product Images

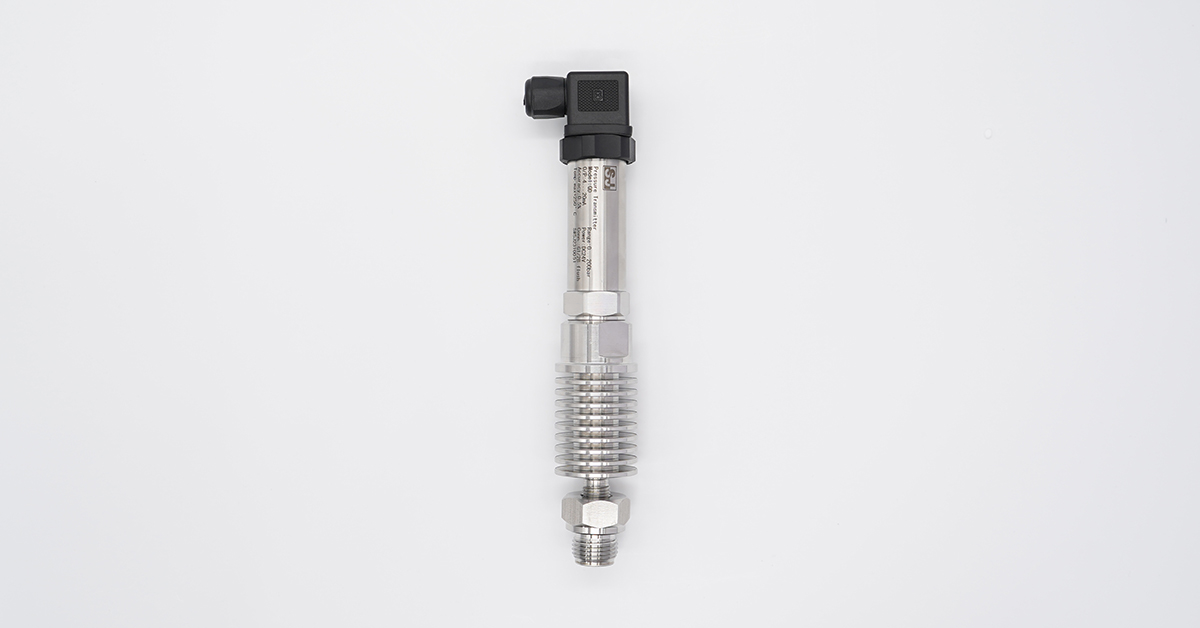

Pressure sensor with cooling fins and din connector
Pressure sensor with cooling fins and din connector

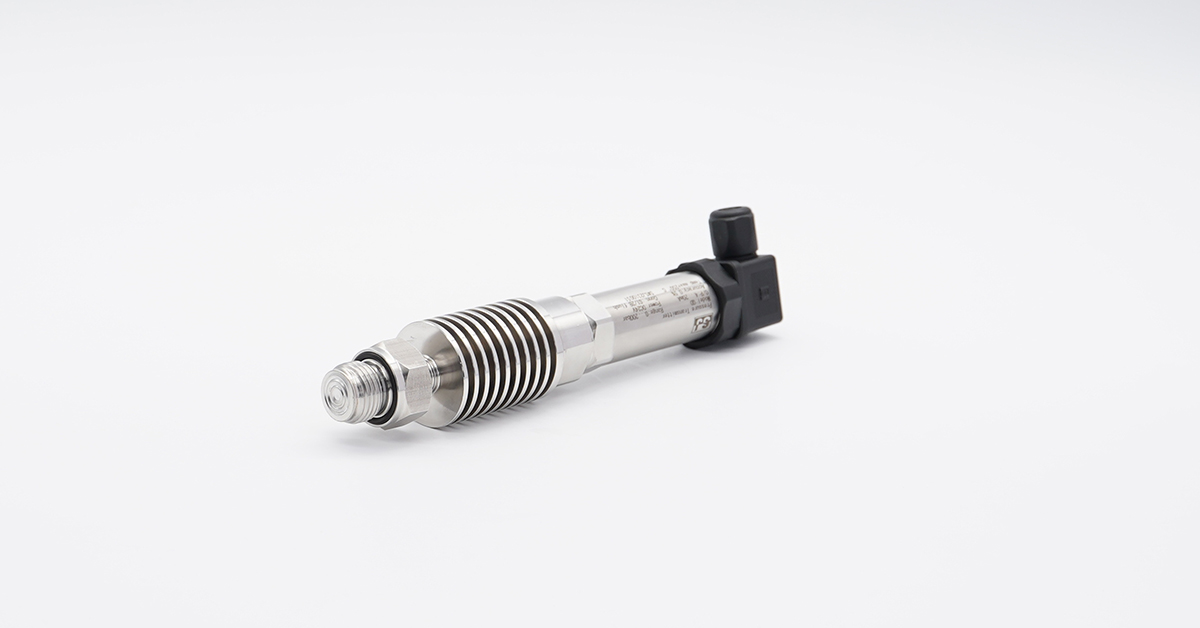

Compact Pressure Transmitter with Flush Diaphragm
Compact Pressure Transmitter with Flush Diaphragm
Compact Pressure Transmitter with Cooling Element
Compact Pressure Transmitter with Cooling Element

Downloads

English

SJ-Gauge-DIT-FS-diaphragm-seals-datasheet-en

Traditional Chinese

SJ-Gauge-DIT-FS-diaphragm-seals-datasheet-zh-tw
