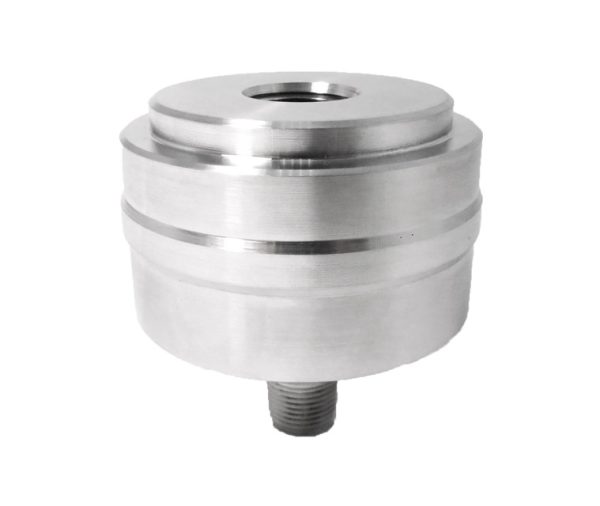

Threaded Connection, High Pressure
Model: DIT-H
- Recommended for high pressure application
- For corrosive, viscous or sewage media measurement
- Ideal for petrochemical, wastewater technology etc.
- Responsive after-sales service / Customizable
- High quality / One-year warranty
- Product images are for reference only. Final specifications are based on the confirmed order.
Description
The DIT-H High-Pressure Diaphragm Seal is engineered for extreme pressure applications and provides reliable measurement of corrosive, viscous, or particle-laden media. It is widely used in petrochemical plants, pipeline systems, wastewater technology, and other demanding industrial environments. Available in both welded and screwed designs, it delivers superior pressure resistance and corrosion protection, safeguarding pressure gauges and transmitters even under 10–600 bar conditions. With multiple material choices and threaded connections, it offers a customizable and durable solution for safe and accurate pressure measurement in high-pressure processes.
Specifications
| Type | Welded, screwed |
|---|---|
| Diameter | 62、70、95 mm |
| Process connection | Male, female 1/4, 3/8, 1/2 PT, G, NPT, M |
| Instrument connection | 1/4, 3/8, 1/2 PT, G, NPT, M |
| Scale range | 62 mm Pressure Gauge: 0...200 bar to 0 ... 600 bar 70 mm Pressure Gauge: 0...10 bar to 0 ... 600 bar Transmitter: 0...10 bar to 0 ... 600 bar , or other equivalent units of pressure, vacuum or compound |
| Material (welded) | Body: 304 SS, 316 SS, 316L SS, Dual Phase Steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Diaphragm: 316L SS, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 |
| Material (screwed) | Upper body: 304 SS, 316 SS, 316L SS, Dual Phase Steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Lower body: 304 SS, 316 SS, 316L SS, Dual Phase Steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Diaphragm: 316L SS, PTFE, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200, Silicone, Viton, 316L+ PTFE, 316L+ PTFE Coating |
| Medium temperature | 0°C ... 80°C, 81°C...200°C, 201°C...400°C |
| Others | Welded with instrument, flush port |

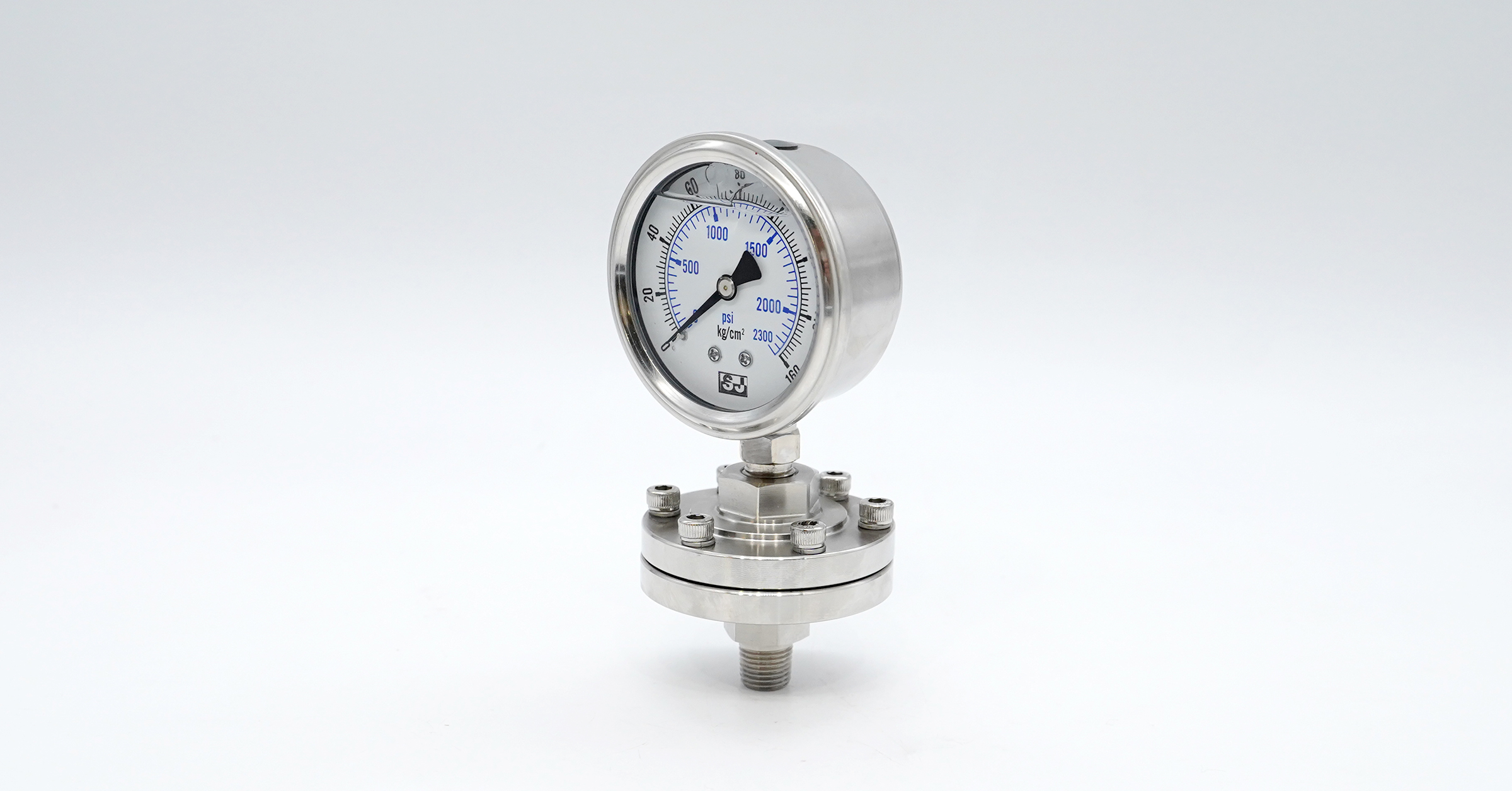

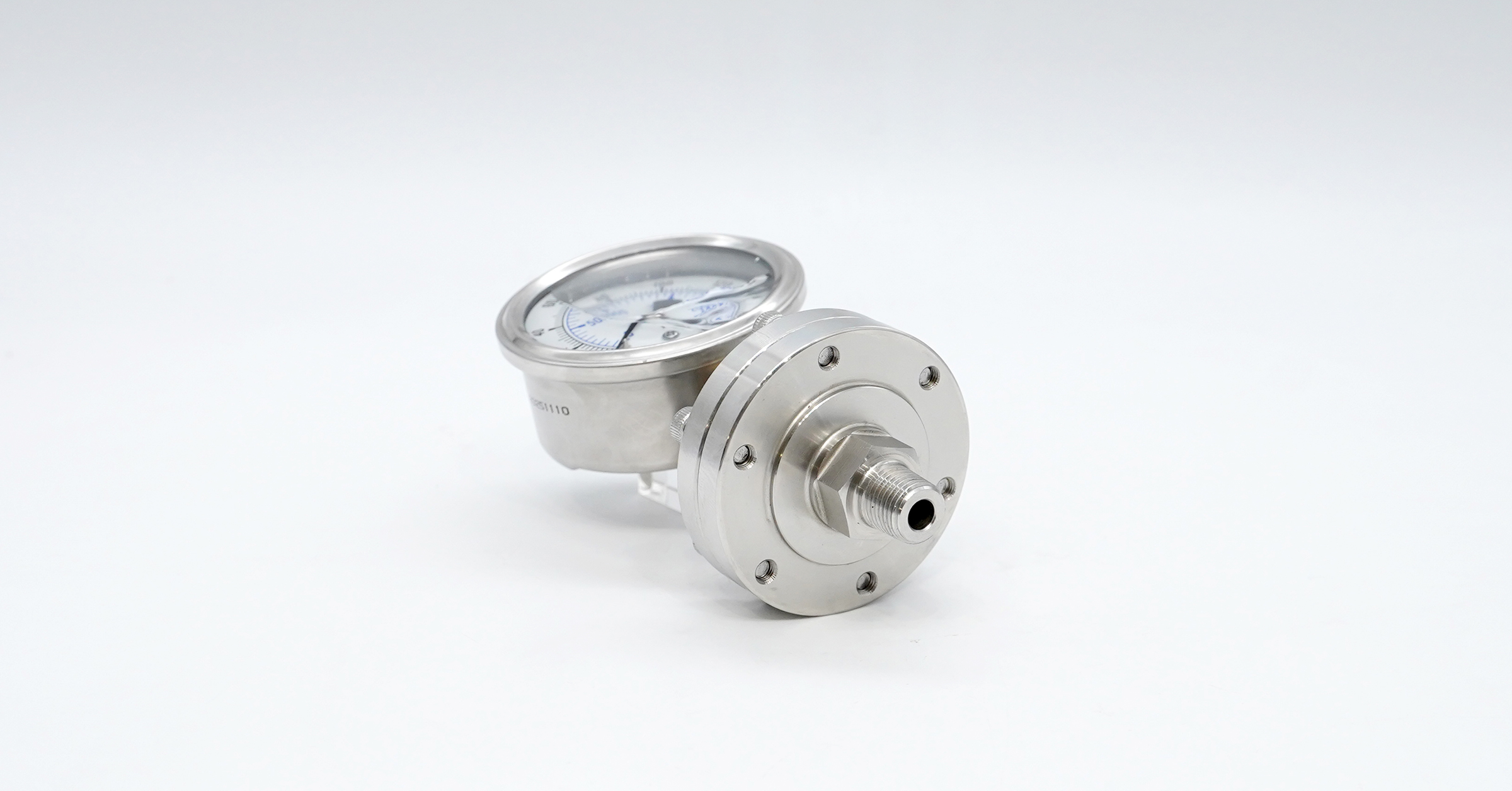

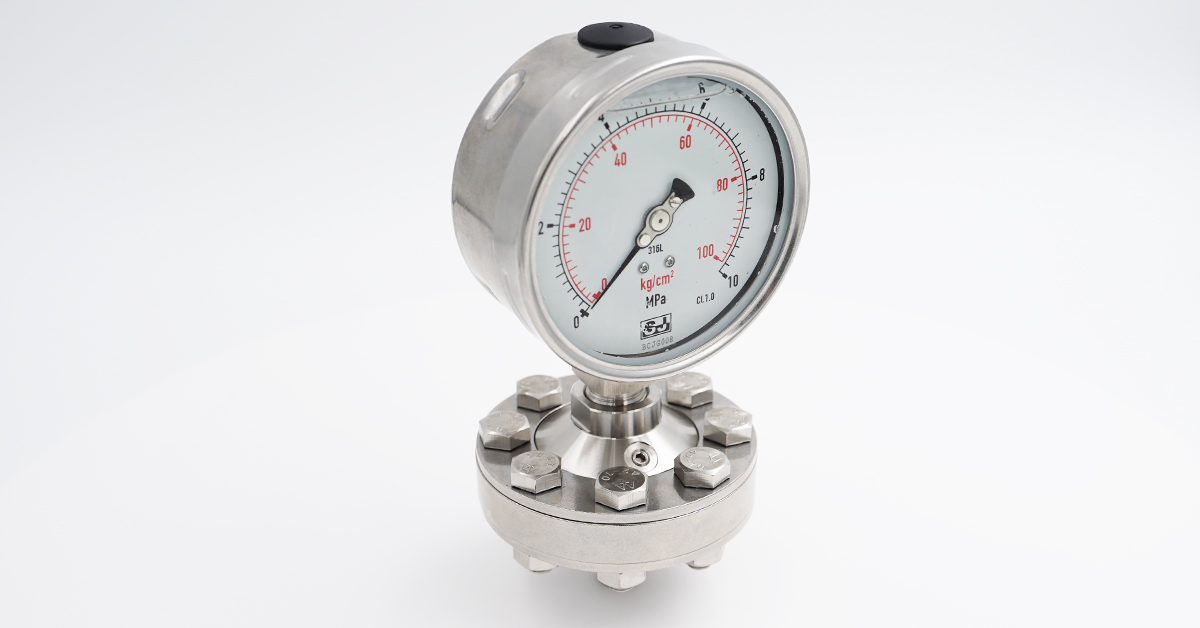

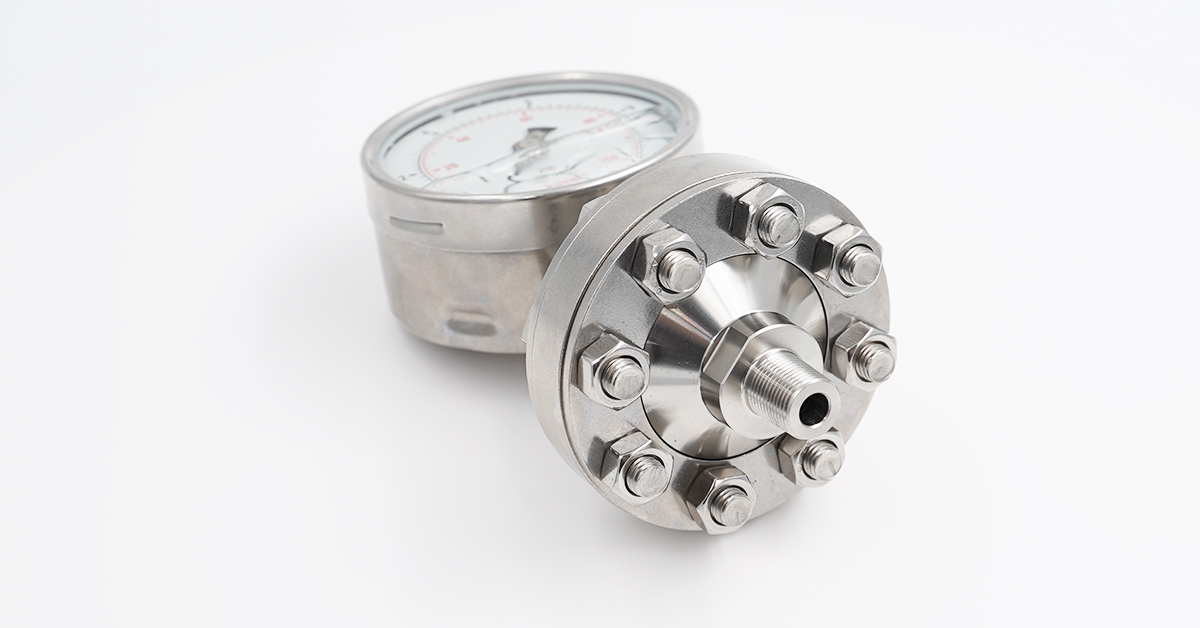

Product Images
