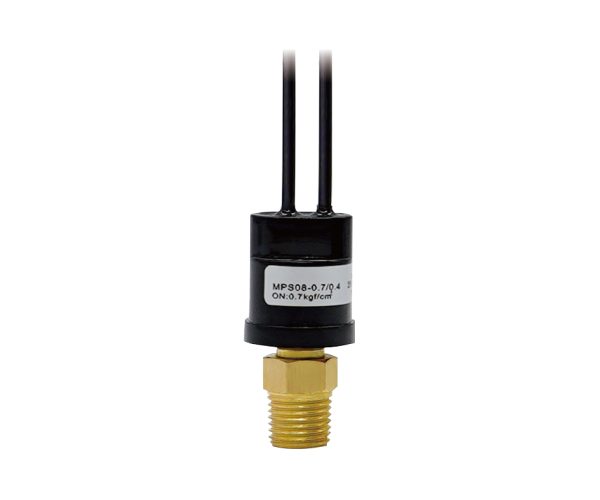

Mechanical Pressure Switch, Compact
Model: MPS
- Automatically resetting switch design
- Wide pressure range, apply to multi work situation
- Application to air、water pressure control, Indoor air conditioner system or more…
- Responsive after-sales service / Customizable
- High quality / One-year warranty
- Product images are for reference only. Final specifications are based on the confirmed order.
Description
The MPS is a compact pressure switch-type controller featuring an automatic reset design and multiple switch options including SPST (NO/NC) and SPDT. Designed for broad applications such as air systems, water pressure control, and HVAC units, it offers a pressure range of 0.2–45 bar with a 5000 psi overpressure rating. The unit supports various process connections (1/8, 1/4 PT/PF/NPT/UNF) with brass or stainless-steel thread options, and is available in insert-pin or cable-out styles with customizable cable length and terminals. Compatible with AC120/240V and DC36V electrical loads, the MPS is ideal for compact installations requiring automatic pressure regulation.

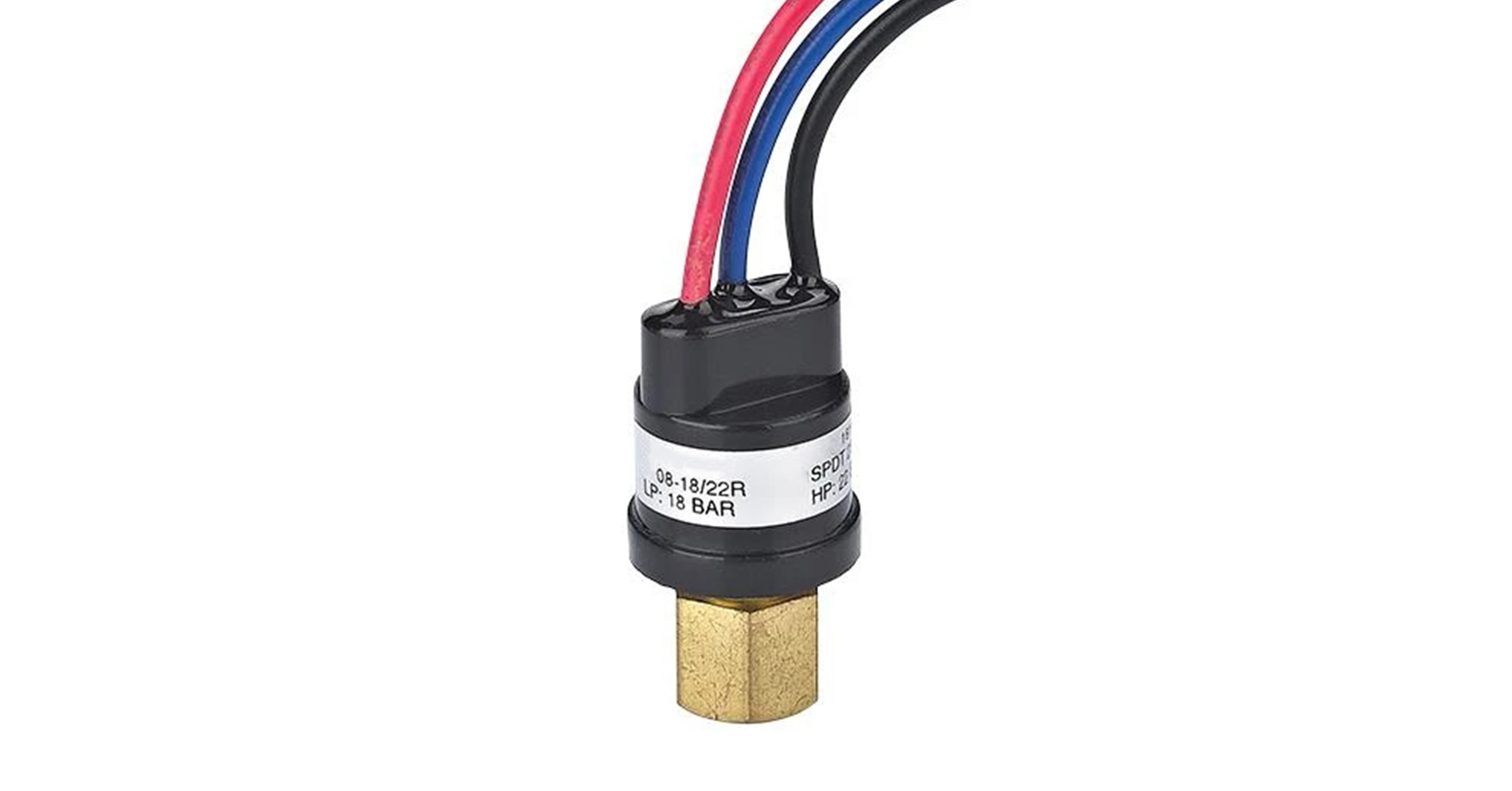

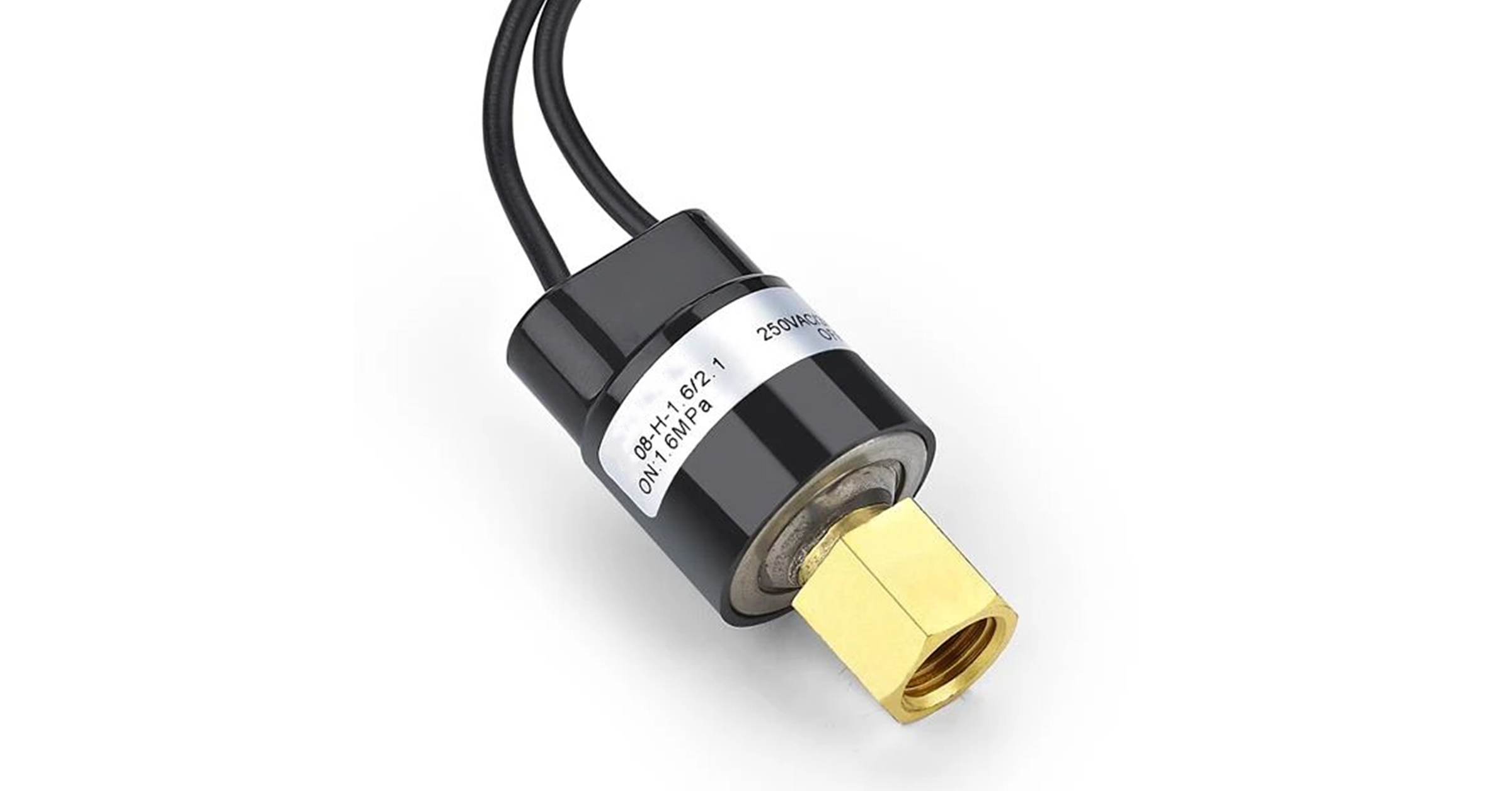

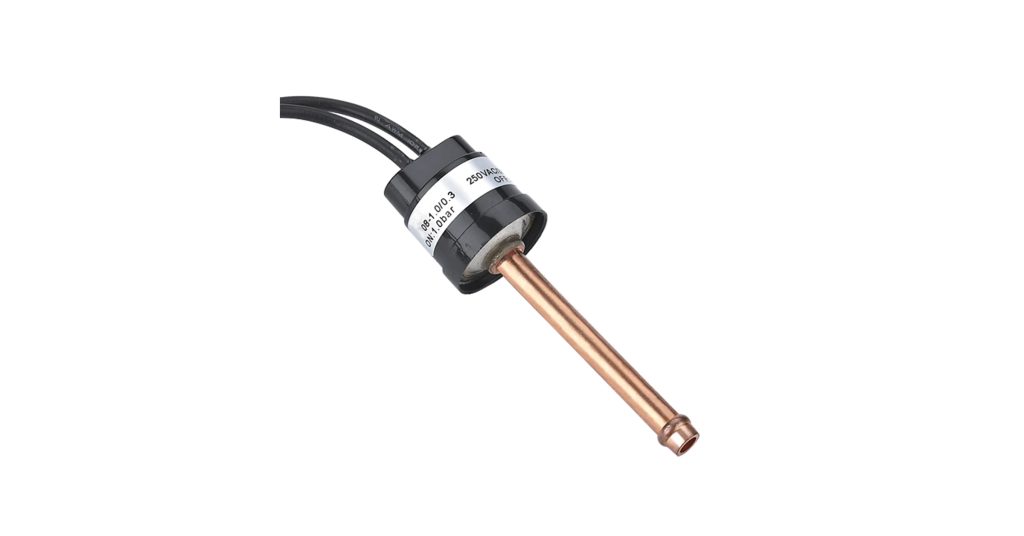

Product Images
Downloads
English
Traditional Chinese
Specifications
| Pressure range | 0.2 ... 45 bar |
|---|---|
| Overpressure | 5000 psi |
| Process connection |
|
| Connector |
|
| Switch type | SPST(NO/NC)、SPDT |
| Reset pattern | Automatic/manual |
| Electronic parameter |
|
| Connection type | Insert / cable out |
| Ambient Temperature |
|
