- Pressure impact tests and time drift tests to ensure constant quality
- Original calibration technology, realize parameters setting easily without any tools
- Adopts patent pressure sensor technology, flexibly faces all kinds of challenges of working conditions

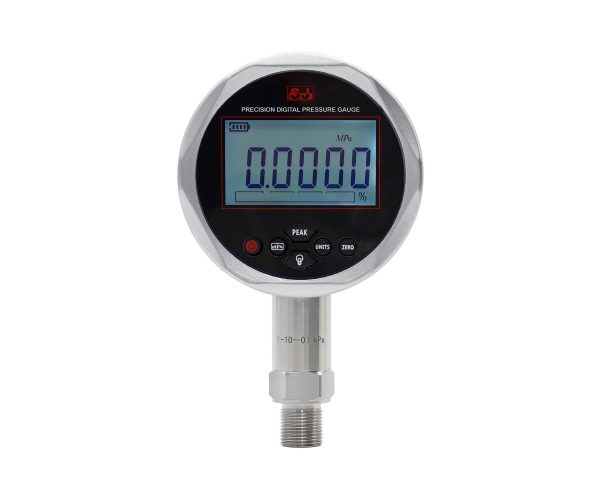

Digital Pressure Gauge, High Precision
Model: MXP
- Accuracy up to 0.025% F.S., ideal for instrument calibration
- Ensured accuracy through calibration using advanced equipment from world-class industry leaders such as Mensor and GE.
- Built-in lithium battery, which allows charging during use (Micro-B)
- Responsive after-sales service / Customizable
- High quality / One-year warranty
- Product images are for reference only. Final specifications are based on the confirmed order.
Description
The MXP high-precision digital pressure gauge is designed for professional calibration and industrial measurement, offering accuracy levels up to ±0.025% F.S. and a fast response rate of 20–25 readings per second. It supports up to eight selectable pressure units and features a 5.5-digit LCD display with a backlight, peak reading function, bar-graph mode, and zeroing capability. Built with a 316L stainless-steel diaphragm, 304 SS process connection, and a durable nickel-plated aluminum housing, it ensures stable performance across a wide range of pressure scales—from 40 kPa to 100 MPa. Powered by a rechargeable 14500 lithium battery with Micro-B charging, the MXP allows charging during use and comes with a shock-proof carrying case and accessory kit, making it ideal for equipment calibration, pneumatic and hydraulic testing, and precision instrumentation work
Product Images
Downloads
Specifications
| Nominal size | 4" |
|---|---|
| Scale ranges | 0 ... 40 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Pressure units |
|
| Accuracy |
|
| Process connection |
|
| Case/Ring | Aluminum alloy nickel plating |
| Panel | PVC |
| Diaphragm | 316L SS |
| Medium temperature | -20℃ ... 60℃ |
| Display |
|
| Response time | 20 ... 25 times/sec |
| Power supply | 14500 rechargeable lithium battery, Micro-B charging port |
| Weight | 1.5 kg (including the box and accessories) |
Product FAQ
What is the MXP digital pressure gauge used for?
MXP is intended for professional calibration and industrial pressure measurement, including pneumatic and hydraulic testing.
What accuracy can MXP provide?
The available accuracy grades are plus or minus 0.1%, 0.05%, and 0.025% of full scale, depending on the selected configuration.
What pressure range and units does MXP support?
Its scale ranges run from 0 to 40 kPa through 0 to 100 MPa, and it supports up to eight selectable pressure units.
