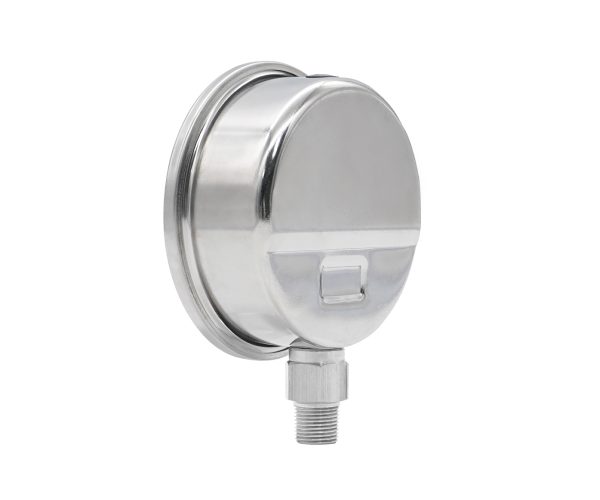

Stainless Steel Pressure Gauge, Stainless Steel

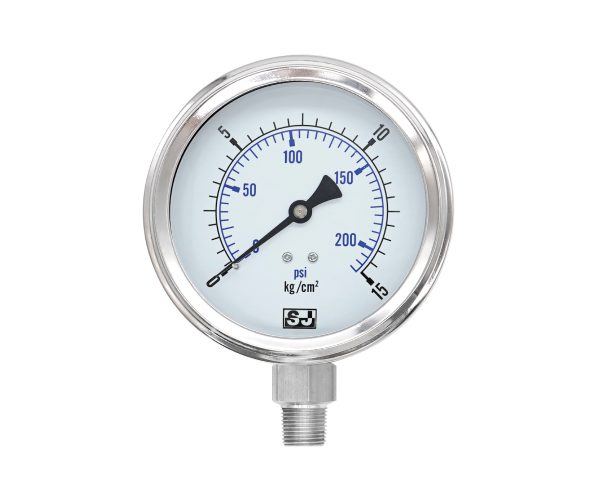

SJ Gauge pressure gauge with stainless steel case construction
  1. Stainless Steel Pressure Gauge, Stainless Steel
  2. SJ Gauge pressure gauge with stainless steel case construction

Stainless Steel Pressure Gauge, Stainless Steel

Model: PRSS
  • For gaseous and liquid pressure media that are not highly viscous or crystallizing
  • Liquid-filled type available to avoid hard observation from pointer vibration
  • Ideal for food and beverage, or other process engineering industries
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The PRSS is an industrial stainless steel pressure gauge constructed with a 304 stainless steel case and 316L stainless steel wetted parts, suitable for non-viscous and non-crystallizing liquid or gaseous media. It offers pressure ranges from 0–1 kg/cm² up to 0–1000 kg/cm², with dial sizes available in 2.5″, 3″, and 4″. The gauge provides ±1.6% F.S. accuracy (±2.5% F.S. for vacuum and compound ranges) and can be supplied dry, glycerine-filled, or silicone-filled for improved vibration resistance. With multiple mounting options including bottom, back, center-back, flange, and U-clamp, the PRSS is ideal for food and beverage applications, process engineering, and general industrial pipeline monitoring.

Product Images

This pressure gauge features 2x overpressure protection and stainless steel design for extreme durability.
This pressure gauge features 2x overpressure protection and stainless steel design for extreme durability.
Flush-mount differential pressure gauge with front flange, 1/4" PT connection, and red/green set pointers
Flush-mount differential pressure gauge with front flange, 1/4" PT connection, and red/green set pointers
4-inch and 2.5-inch oil-filled bottom mount pressure gauges for various industrial applications.
4-inch and 2.5-inch oil-filled bottom mount pressure gauges for various industrial applications.
4-inch oil-filled recessed pressure gauge with flange and eccentric connection for panel mounting.
4-inch oil-filled recessed pressure gauge with flange and eccentric connection for panel mounting.
4-inch oil-filled bottom mount pressure gauge designed for vibration-resistant industrial applications.
4-inch oil-filled bottom mount pressure gauge designed for vibration-resistant industrial applications.
2.5-inch oil-filled recessed pressure gauge without flange for compact panel applications.
2.5-inch oil-filled recessed pressure gauge without flange for compact panel applications.
2.5-inch compound pressure gauge for measuring both vacuum and positive pressure.
2.5-inch compound pressure gauge for measuring both vacuum and positive pressure.

Downloads

English

SJ-Gauge-prss-stainless-pressure-gauge-datasheet-en

Traditional Chinese

SJ-Gauge-prss-stainless-pressure-gauge-datasheet-ch

Specifications

Connection locationBottom mount, back mount, center back mount, lower back mount, center back mount with U-clamp, with/without flange
Nominal size2.5", 3", 4"
Scale ranges
  • 0 … 1 kg/cm2 to 0 … 1000 kg/cm2,
  • or other equivalent units of pressure, vacuum or compound
Accuracy
  • ±1.6% F.S.
  • ±2.5% F.S. (vacuum, compound)
Process connection
  • 316L SS
  • 1/8, 1/4, 3/8, 1/2
  • PT, G, NPT, M
Case/Ring304 SS
WindowPolycarbonate (standard), glass
DialAluminum alloy, black scale on white
PointerBlack aluminum alloy
MovementCopper alloy
Bourdon tube316L SS
Filling liquidWithout, glycerine, silicone oil
Accessories (Option)2.5", 4": adjustable set pointer, drag pointer
Pressure limitation
  • Steady: full-scale value
  • Fluctuating: 0.9 x full-scale value
Ambient temperature
  • -40°C … 60°C (unfilled or silicone oil filled)
  • -20°C … 60°C (glycerine filled)
Medium temperature
  • -40°C … 150°C (unfilled)
  • -20°C … 100°C (glycerine filled)
  • -40°C … 100°C (silicone oil filled)
