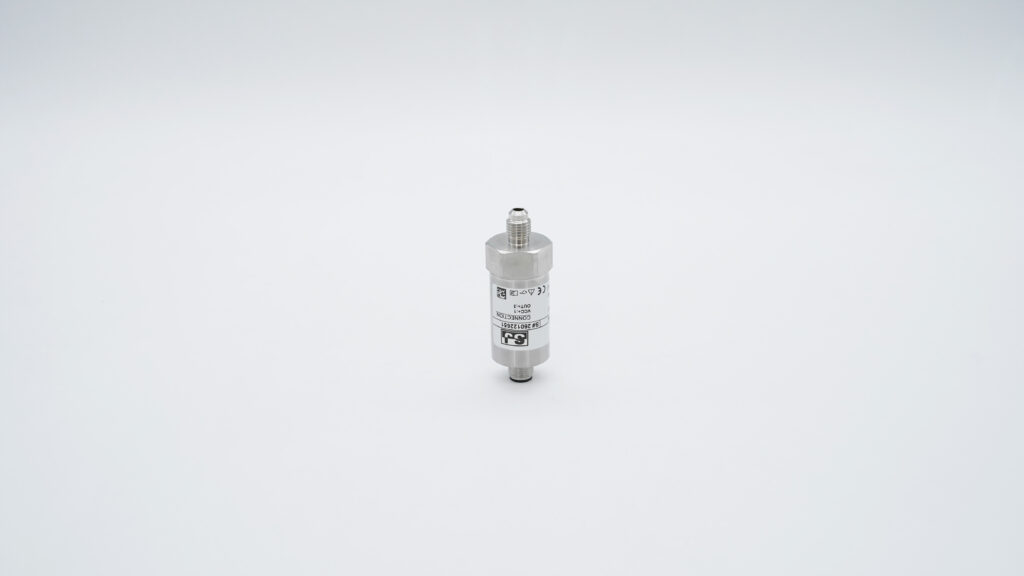

SJ Gauge VMEPT1020 pressure transmitter for oil and gas applications
SJ Gauge VMEPT1020 pressure transmitter for oil and gas applications
SJ Gauge VMEPT1020 stainless steel pressure transmitter
SJ Gauge VMEPT1020 pressure transmitter used for differential measurement
SJ Gauge VMEPT1020 high-accuracy pressure transmitter
  1. SJ Gauge VMEPT1020 pressure transmitter for oil and gas applications
  2. SJ Gauge VMEPT1020 pressure transmitter for oil and gas applications
  3. SJ Gauge VMEPT1020 stainless steel pressure transmitter
  4. SJ Gauge VMEPT1020 pressure transmitter used for differential measurement
  5. SJ Gauge VMEPT1020 high-accuracy pressure transmitter

General Industrial Pressure Transmitter

Model: VMEPT1020
  • Measuring ranges from 50 mbar to 600 bar
  • Accuracy: ±0.2% FSO (Min.), ±0.25% FSO (Typ.)
  • Calibrated and temperature compensated
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

The VMEPT1020 series is a high-performance OEM pressure transmitter built with a durable stainless-steel housing, offering a wide measurement range from 50 mbar to 600 bar. It supports both gauge and absolute pressure, featuring precise calibration and temperature compensation for excellent accuracy (up to ±0.25%FS typical). Available in multiple output options — 4–20 mA, 1–5 V, 0.5–4.5 V, RS485 — it ensures easy integration into various control systems. Designed for hydraulic and pneumatic systems, machine building, pumps, water treatment, HVAC & refrigeration, and air compressor control

Product Images

Threaded Diaphragm Seal with Hastelloy® C-276 Diaphragm
Threaded Diaphragm Seal with Hastelloy® C-276 Diaphragm
DIN Connector with Corrosion-Resistant PP Construction
DIN Connector with Corrosion-Resistant PP Construction
G Thread Male Process Connection
G Thread Male Process Connection

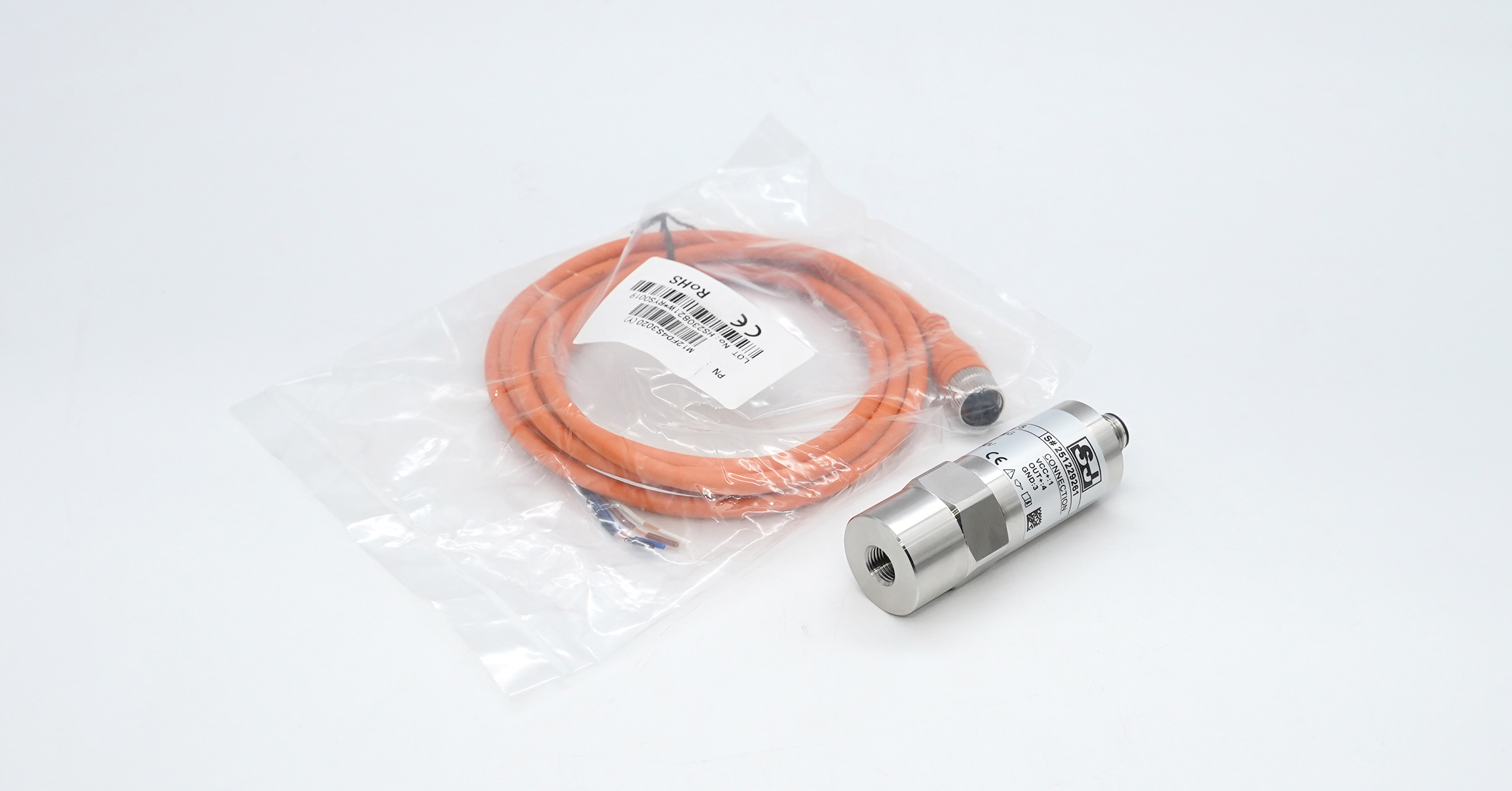

Pressure transmitter with cable accessory kit for easy installation and signal connection
Pressure transmitter with cable accessory kit for easy installation and signal connection

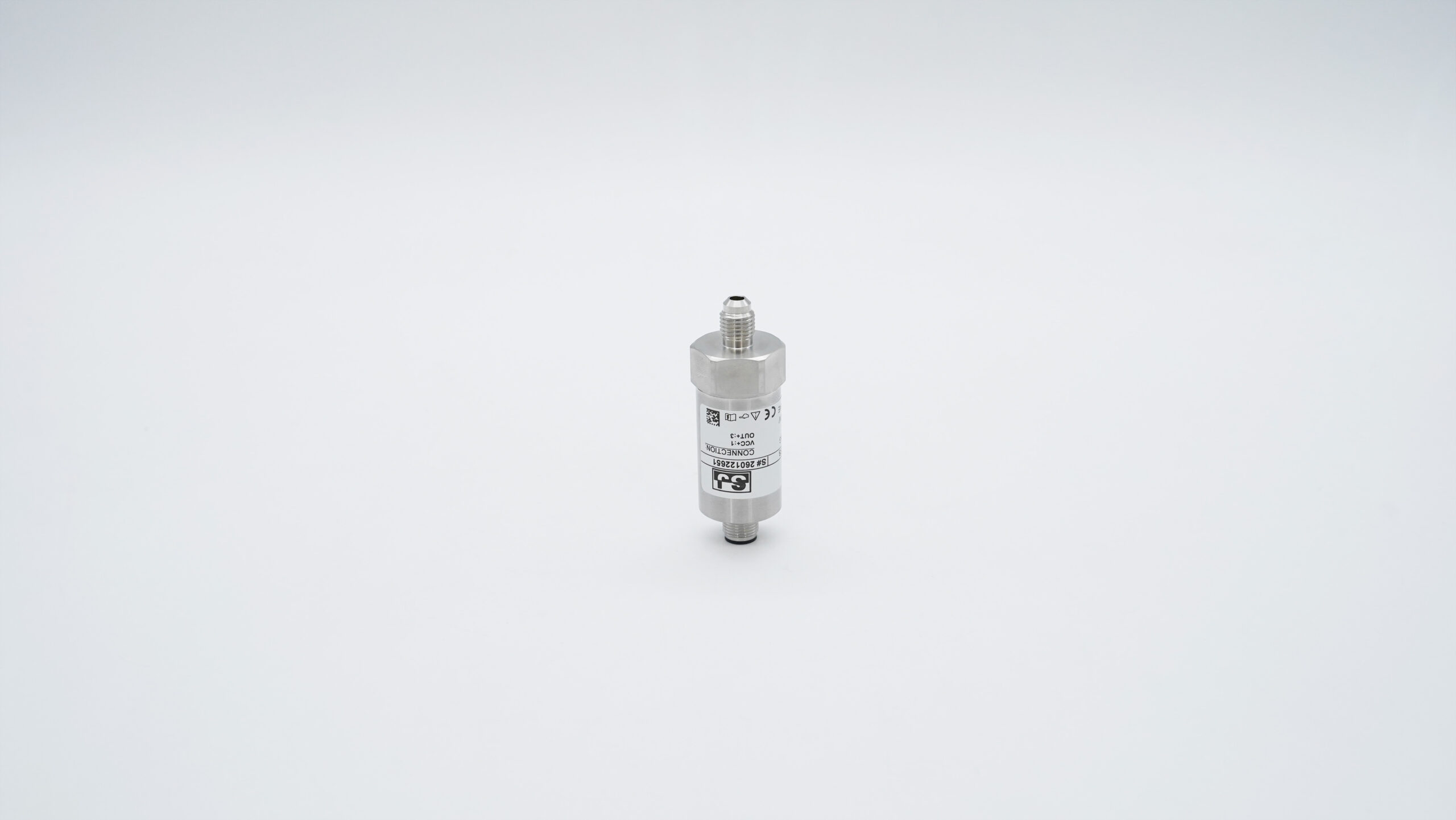

Pressure transmitter with cone thread fitting for secure industrial installation
Pressure transmitter with cone thread fitting for secure industrial installation

Downloads

English

SJ-Gauge-VMEPT1020-pressure-transmitter-datasheet-en.V2

Specifications

Measuring range0 ... 600 bar
Min. measuring span50 mbar
Max. measuring span600 bar
Pressure TypeAbsolute and gauge pressure
Output signal / Supply
  • 2-wire 4…20mA /VS =12...30VDC
  • 3-wire 1…5VDC / VS= 12...30VDC
  • 3-wire 0.5…4.5VDC / VS = 5VDC
  • 2-wire 4…20mA+HART / VS =12... 30VDC
  • 4-wire RS485 Modbus RTU /VS = 12... 30VDC
Accuracy
  • ±0.2%FS
  • ±0.25%FS
  • Including non-linearity, hysteresis and non-repeatability according BFSL
Operating Temperature
  • 0 to 85 °C
  • 0 to 70°C
Material process membraneSUS316L Stainless steel
Long term stability≤ ±0.3 %FS/Year
