SJ Gauge pressure gauge fitted with an upper metal diaphragm seal

Flanged Connection, Upper Metal, Lower Plastic

Model: DIF-USLP
  • A metal upper body that connects to the instrument is tight and durable
  • Plastic lower body can protect pressure instruments from corrosive, contaminated or viscous media
  • Suitable for paint, electroplating, sewage treatment and the paper industry
  • Responsive after-sales service / Customizable
  • High quality / One-year warranty
  • Product images are for reference only. Final specifications are based on the confirmed order.
Request Quote

Description

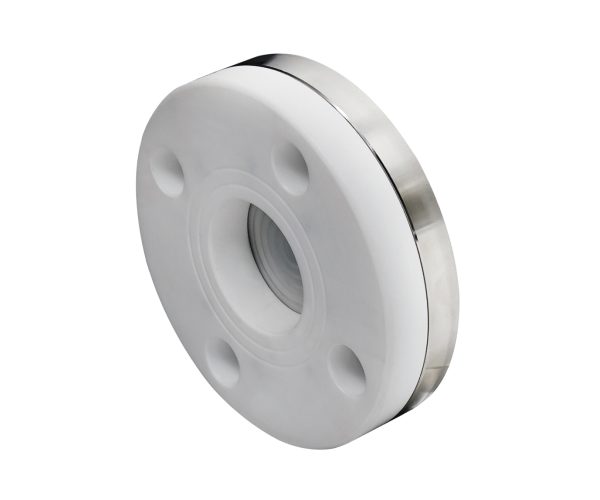

The DIF-USLP features a hybrid structure with a durable metal upper body that ensures a secure and stable connection to pressure instruments, paired with a corrosion-resistant plastic lower body that protects gauges and transmitters from aggressive, contaminated, or viscous media. This design makes it ideal for applications such as paint production, electroplating, wastewater treatment, and the paper industry — environments that demand strong chemical resistance and easy maintenance. Available in various flange standards and materials with optional metal or PTFE diaphragms, the DIF-USLP provides a reliable and long-lasting pressure measurement solution for chemical and environmental processing systems.

Product Images

Flange diaphragm pressure gauge cooling element
Flange diaphragm pressure gauge cooling element

Downloads

English

SJ_DIF-USLP_DS_en

Traditional Chinese

SJ_DIF-USLP_DS_zh-TW

Specifications

Type of process connectionANSI/ASME B16.5, JIS, DIN 2527
Nominal diameter1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 3", 4"
Instrument connection
  • 1/4, 3/8, 1/2
  • PT, G, NPT, M
Scale ranges - metal diaphragm
  • Pressure gauge:
  • 1/2", 3/4": 0 ... 4 bar to 0 ... 25 bar
  • 1" ... 1/4": -1 ... 3 bar, 0 ... 1.6 bar to 0 ... 25 bar
  • 2": -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 25 bar
  • 3", 4": -1 ... 0.6 bar, 0 ... 0.6 bar to 0 ... 25 bar
  • Transmitter:
  • 1/2", 3/4": 0 ... 0.4 bar to 0 ... 25 bar
  • 1" ... 1 1/4": -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 25 bar
  • 2": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar
  • 3", 4": -0.05 ... 0.05 bar to 0 ... 25 bar
  • or all other equivalent vacuum or combined pressure and vacuum ranges
Scale ranges - PTFE diaphragm
  • Pressure gauge:
  • 1/2", 3/4": -1 ... 5 bar, 0 ... 2.5 bar to 0 ... 25 bar
  • 1" ... 1 1/4": -1 ... 1.5 bar, 0 ... 1.6 bar to 0 ... 25 bar
  • 2": -1 ... 0.6 bar, 0 ... 0.6 bar to 0 ... 25 bar
  • 3", 4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar
  • Transmitter:
  • 1/2", 3/4": -1 ... 3 bar, 0 ... 0.4 bar to 0 ... 25 bar
  • 1" ... 1 1/4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar
  • 2": -0.05 ... 0.05 bar to 0 ... 25 bar
  • 3", 4": -0.05 ... 0.05 bar to 0 ... 25 bar
  • or all other equivalent vacuum or combined pressure and vacuum ranges
Material
  • Upper body:
  • 304 SS, 316 SS, 316L SS, Duplex SS, Hastelloy Alloy, Tantalum, Titanium, Monel 400 Alloy, Nickel 200
  • Lower body:
  • PP, PVC, PVDF, PTFE
  • Diaphragm:
  • PTFE, Hastelloy Alloy, Titanium, Tantalum, Monel 400 Alloy, Nickel 200, Silicone, Viton®, 316L+PTFE, 316L+PTFE Coating
Medium temperature0℃ ... 60℃ (PVC), 0℃ ... 80℃ (PP), -40℃ ... 120℃ (PVDF), -200℃ ... 240℃ (PTFE)
OthersWelded with instrument, capillary
