Industrial Smart Pressure Transmitter, Gauge Pressure

Model: MSDMP305X-TST-S (Gauge)

Strong transient voltage resistance to protect the terminal module
Dual diaphragm overload structure can easily cope with high overload tests
Accurate filling fluid technology eliminates the effects of temperature and static pressure
High-strength metal electrical protection housing meets the most rigorous environmental application

Responsive after-sales service / Customizable
High quality / One-year warranty

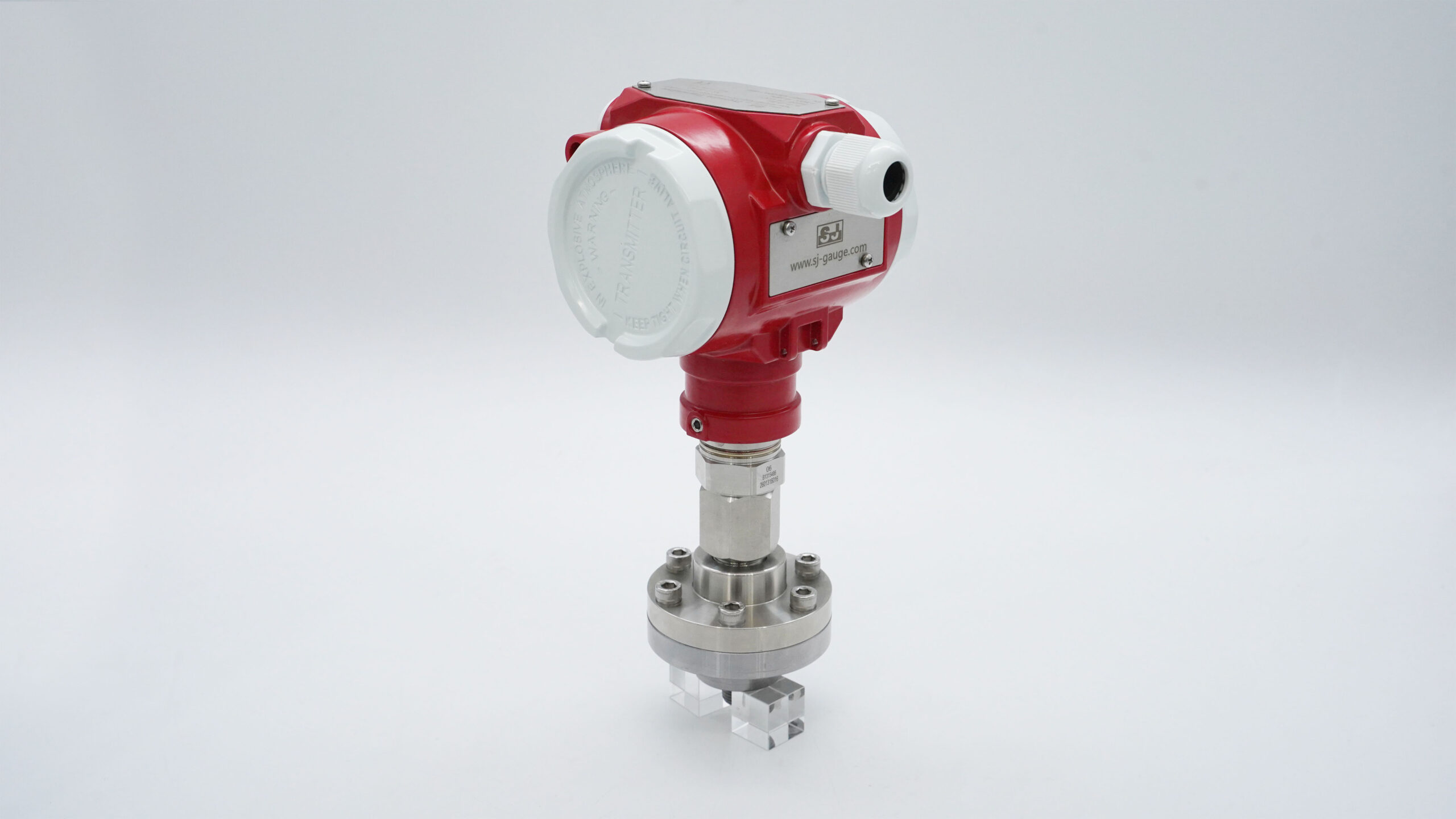

The image is for reference; the actual product willbe based on your custom specifications.

Description

The MSDMP305X-TST smart gauge pressure transmitter is designed for reliable pressure measurement in industrial applications. Equipped with a high-performance monocrystalline silicon sensor, it provides accurate and stable measurement for liquids, gases, and vapors.Its dual diaphragm overload protection structure ensures durability under high-pressure conditions, while advanced filling fluid technology minimizes the influence of temperature and static pressure variations. The rugged metal housing offers excellent protection, making it suitable for harsh and demanding environments.With strong transient voltage resistance and stable output performance, this transmitter is widely used in process control, industrial automation, and general pressure monitoring applications. Certified by Ex, IEC, CE, RoHS, and HART.

Specifications

Scale ranges	2 kPa ... 40 MPa
Output signal	4-20mA, 4-20mA/HART
Accuracy	±0.1% URL (standard), ±0.075% URL
Stability	±0.2% URL/ 5 years
Diaphragm	SUS 316L, Hastelloy
Medium temperature	-20℃ ... 85℃, integrated LCD display -20℃ ... 70℃
Accuracy	±0.1% URL (standard), ±0.075% URL
IP rating	IP 67
Process connection	M20 x 1.5 (M), G1/2(M), G1/4(M) 1/2", 1/4" NPT(M) 1/2", 1/4" NPT (F)
Approvals	CSA, ATEX, IECEx, NEPSI, RoHS, CE
